WIDIA GTD 2747499 5502 Form E Forming Tap, 5/8-11 Thread, H7 Thread Limit
WIDIA GTD 2747499 5502 Form E Forming Tap, 5/8-11 Thread, H7 Thread Limit
- Brand: WIDIA GTD
- Mfr# : 2747499
- Item # : GRE 17280
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- TRU-LEDE™ Fe taps made from vanadium high-speed steel for extending wear life and better part finish in ductile materials
- TRU-LEDE™ tap made from HSS for use in general machining applications
- Plug and bottoming entry tapers for form tapping without troublesome chips that clog and break taps
DESCRIPTION
WIDIA GTD Forming Tap, Form E, Series: 5502, Measurement System: Imperial, 5/8-11, UNC, 2-3P Bottoming Chamfer, 1.09 in Thread Length, 3.81 in Overall Length, 6 Flutes, Right Hand Cutting, 0.48 in Shank Dia, HSS, Uncoated, H7 Thread Limit

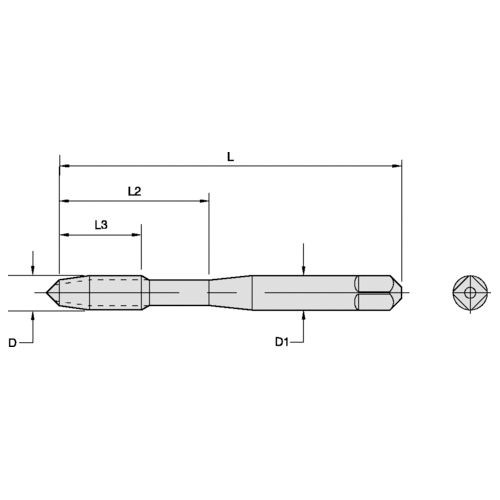

SPECIFICATIONS
| Type | : Form E |
| Series | : 5502 |
| Measurement System | : Imperial |
| Thread Size | : 5/8-11 |
| Thread Standard | : UNC |
| Chamfer Type | : 2-3P Bottoming |
| Thread Length | : 1.09 in |
| Overall Length | : 3.81 in |
| Number of Flutes | : 6 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 0.48 in |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Thread Limit | : H7 |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : For blind hole in general machining applications |
| Country of Origin | : US |
