Walter 5585373 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG432-NM4 WSM20, WNMG Insert, Material Grade: M, S, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM20
Walter 5585373 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG432-NM4 WSM20, WNMG Insert, Material Grade: M, S, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM20
Walter 5585373 Tiger-tec® Silver Turning Insert, ANSI Code: WNMG432-NM4 WSM20, WNMG Insert, Material Grade: M, S, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: WSM20
- Brand: Walter
- Mfr# : 5585373
- Item # : WLT 5585373
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Universal geometry for stainless materials and for high temperature alloys
- Machining long chipping steels
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
DESCRIPTION

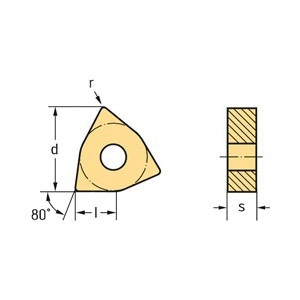

Walter Turning Insert, Series: Tiger-tec® Silver, WNMG Insert, 432 Insert, Trigon, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Negative Rake, NM4 Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: WSM20, ANSI Code: WNMG432-NM4 WSM20, ISO Code: WNMG080408-NM4 WSM20, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+Al2O3 (ZrCN) Coated, Material Grade: M, S, For Use On: Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting
SPECIFICATIONS
| Series | : Tiger-tec® Silver |
| Insert Style | : WNMG |
| Insert Size | : 432 |
| Shape | : Trigon |
| Maximum Depth of Cut | : 3 mm |
| Inscribed Circle | : 12.7 mm |
| Seat Size | : 08 |
| Rake | : Negative |
| Chipbreaker | : NM4 |
| Corner Radius | : 0.8 mm |
| Hole Diameter | : 5.16 mm |
| ANSI Code | : WNMG432-NM4 WSM20 |
| ISO Code | : WNMG080408-NM4 WSM20 |
| Included Angle | : 80 deg |
| Relief Angle | : 0 deg |
| Cutting Direction | : Neutral |
| Material | : Carbide |
| Finish | : PVD-TiAlN+Al2O3 (ZrCN) Coated |
| Material Grade | : M, S |
| For Use On | : Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys, Austenitic Stainless Steel, Austenitic-Ferritic Steel and Steel Casting |
APPLICATION INFO
| Application | : Medium Machining Applications |
| Country of Origin | : DE |
