Cleveland® C52167 HDC-2 Center Cutting Double End General Purpose Square End End Mill, 3/4 in Dia Cutter, 1-5/16 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Bright

Cleveland® C52167 GRE C52167

Cleveland® C52167 HDC-2 Center Cutting Double End General Purpose Square End End Mill, 3/4 in Dia Cutter, 1-5/16 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Bright

Cleveland® C52167 HDC-2 Center Cutting Double End General Purpose Square End End Mill, 3/4 in Dia Cutter, 1-5/16 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Bright

  • Brand: Cleveland®
  • Mfr# : C52167
  • Item # : GRE C52167
  • UPC #: 697334521679
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • High red hardness for high heat conditions
  • 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Applicable on stainless steel, titanium alloys, nickel alloys and cobalt alloys

DESCRIPTION

Cleveland® End Mill, Center Cutting Double End General Purpose Square End, Series: HDC-2, 3/4 in Diameter Cutter, 5-5/8 in Overall Length, 1-5/16 in Length of Cut, 2 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, Cobalt 8/M42 HSS, Bright

SPECIFICATIONS

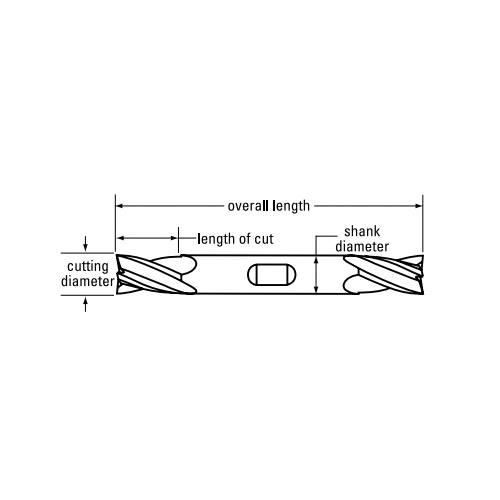

Type      :    Center Cutting Double End General Purpose Square End
Series      :    HDC-2
Cutter Diameter      :    3/4 in
Overall Length      :    5-5/8 in
Length of Cut      :    1-5/16 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    3/4 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    Cobalt 8/M42 HSS
Finish      :    Bright

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
