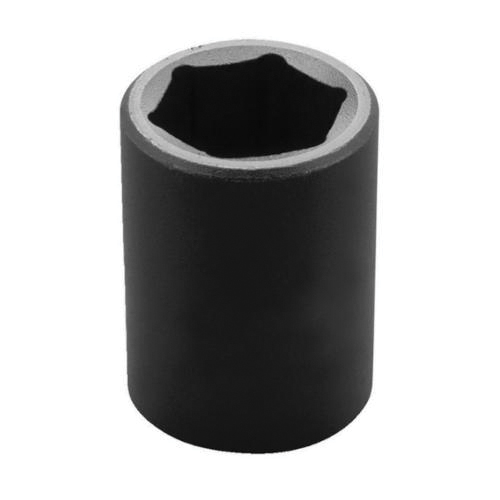

Proto® TorquePlus™ J7446M Standard Length Socket, Metric, 1/2 in Square Drive, 46 mm
Proto® TorquePlus™ J7446M Standard Length Socket, Metric, 1/2 in Square Drive, 46 mm
- Brand: Proto®
- Mfr# : J7446M
- Item # : STP J7446M
- UPC #: 662679977252
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 46 mm Socket, 61.8 mm Overall Length, 25.1 mm Opening Depth, 60.4 mm Drive End Width, 60.4 mm Socket End Width, Side Locking Hole Locking, 6 Points, 38.7 mm Bolt Clearance Depth, Alloy Steel, Black Oxide
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : Yes |
| Measurement System | : Metric |
| Drive Type | : Square |
| Drive Size | : 1/2 in |
| Socket Size | : 46 mm |
| Overall Length | : 61.8 mm |
| Opening Depth | : 25.1 mm |
| Drive End Width | : 60.4 mm |
| Socket End Width | : 60.4 mm |
| Locking Type | : Side Locking Hole |
| Number of Points | : 6 |
| Bolt Clearance Depth | : 38.7 mm |
| Material | : Alloy Steel |
| Finish | : Black Oxide |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110-2012|ASME B107.33M |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
