Mitutoyo ABSOLUTE® 575-123 ID-U 575 Flat Back Inch/Metric Standard Digimatic Indicator, 0 to 1 in/0 to 25.4 mm Measuring, 0.0008 in Accuracy, 0.0005 in, 0.01 mm Resolution, LCD Display
Mitutoyo ABSOLUTE® 575-123 ID-U 575 Flat Back Inch/Metric Standard Digimatic Indicator, 0 to 1 in/0 to 25.4 mm Measuring, 0.0008 in Accuracy, 0.0005 in, 0.01 mm Resolution, LCD Display
Mitutoyo ABSOLUTE® 575-123 ID-U 575 Flat Back Inch/Metric Standard Digimatic Indicator, 0 to 1 in/0 to 25.4 mm Measuring, 0.0008 in Accuracy, 0.0005 in, 0.01 mm Resolution, LCD Display
- Brand: Mitutoyo
- Mfr# : 575-123
- Item # : MTI 575-123
- UPC #: 603908249085
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Slim type digital indicator with low price
- Large lcd and simple key operation
- After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off
- Ideal for installation into measuring devices because of it's compact design and long battery life
- Employing the ABSOLUTE® linear encoder, the ID-U always displays the spindle "Absolute Position" from the origin at power on
- Also unlimited response speed eliminates over speed errors
- Flat back type only no option for backs
- SPC data output
DESCRIPTION
Mitutoyo ABSOLUTE® Digimatic Indicator, Flat Back Inch/Metric Standard, Series: ID-U 575, 0 to 1 in/0 to 25.4 mm Measuring, 0.0008 in Accuracy, 0.0005 in, 0.01 mm Resolution, LCD Display,
SPECIFICATIONS
| Type | : Flat Back Inch/Metric Standard |
| Series | : ID-U 575 |
| Measuring Range | : 0 to 1 in/0 to 25.4 mm |
| Accuracy | : 0.0008 in |
| Resolution | : 0.0005 in, 0.01 mm |
| Display Type | : LCD |
| Measuring Force | : |
| Battery Type | : SR44 |

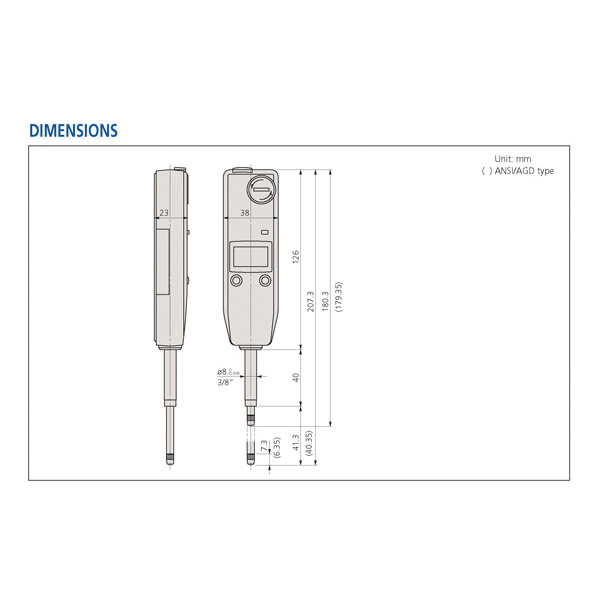

| Dimensions | : 207.3 mm L x 38 mm W x 23 mm H |
APPLICATION INFO
| Standard/Approvals | : ANSI/AGD Type|RoHS Compliant |
| Country of Origin | : JP |
