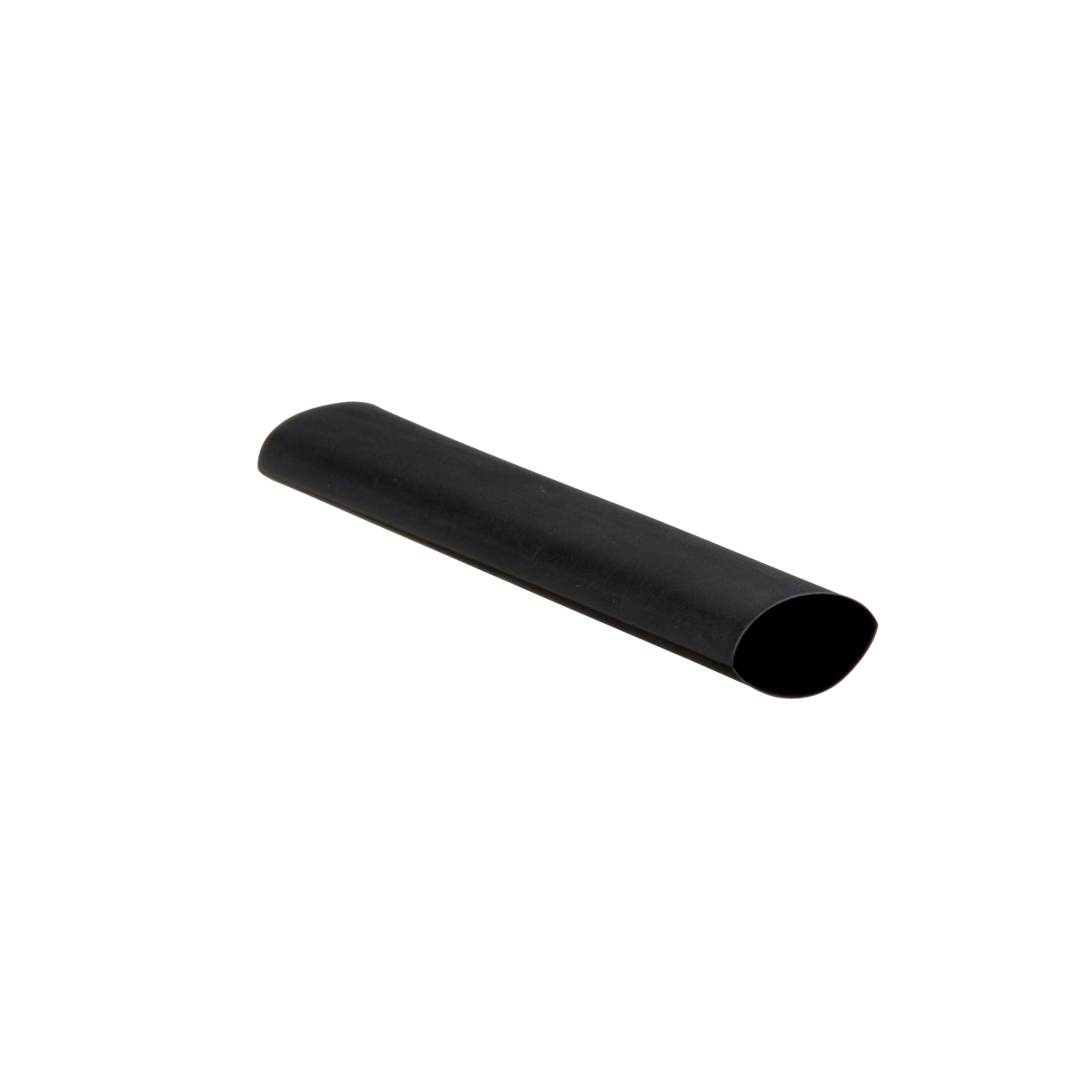

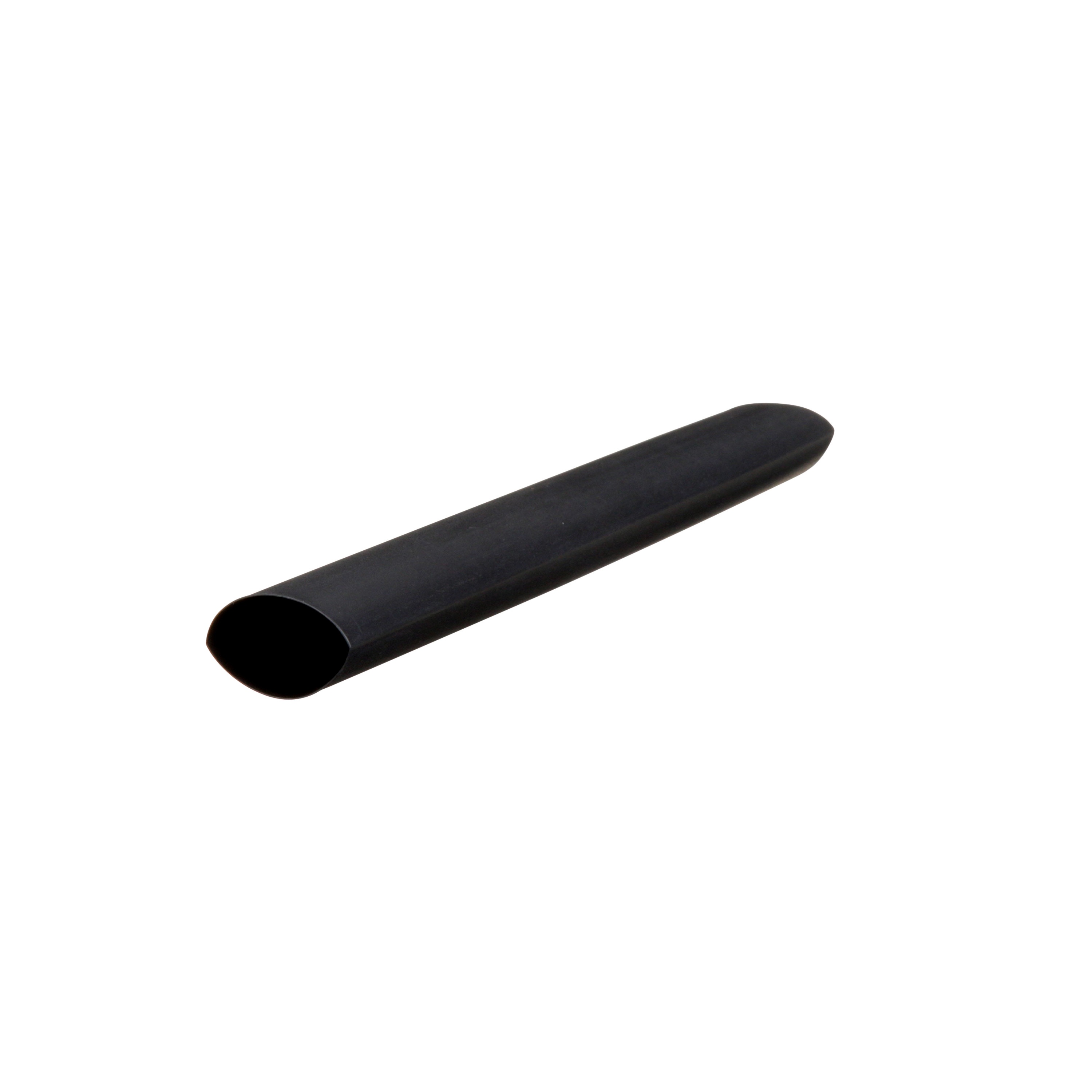

3M™ 7000133694 FP0.750BK6 Tubing, 0.375 in ID Recovered, 6 in L, Polyolefin, Black
3M™ 7000133694 FP0.750BK6 Tubing, 0.375 in ID Recovered, 6 in L, Polyolefin, Black
- Brand: 3M™
- Mfr# : 7000133694
- Item # : MMM 60124
- UPC #: 051128601242
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Specification Sheet
FEATURES
- FLAME-RETARDANT TUBING - Suitable for applications up to 600V (clear is not flame retardant)
- FOR DEMANDING CONDITIONS - Performs at an operating temperature up to 275 degF (135 degC)
DESCRIPTION
3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
3M™, 7000133694, Tubing, Series: FP0.750BK6, 600 V, 0.75 in ID Expanded, 0.375 in ID Recovered, Single Wall, 2:1 Shrink Ratio, 6 in Length, -55 to 135 deg C, 100 deg C Shrink, Polyolefin, Black
SPECIFICATIONS
| Type | : Corrosion-Resistant Flame-Retardant Flexible General Purpose |
| Series | : FP0.750BK6 |
| Voltage Rating | : 600 V |
| Inner Diameter Expanded | : 0.75 in |
| Inner Diameter Recovered | : 0.375 in |
| Wall Type | : Single |
| Wall Thickness Recovered | : 0.03 in |
| Shrink Ratio | : 2:1 |
| Length | : 6 in |
| Temperature Rating | : -55 to 135 deg C |
| Shrink Temperature | : 100 deg C |
| Material | : Polyolefin |
| Color | : Black |
APPLICATION INFO
| Standard/Approvals | : UL File Number E-39100||CSA Certified|RoHS 2011/65/EU Compliant|UL Recognized |
| Application | : Suitable for applications up to 600V (clear is not flame retardant) |
| Country of Origin | : US |
