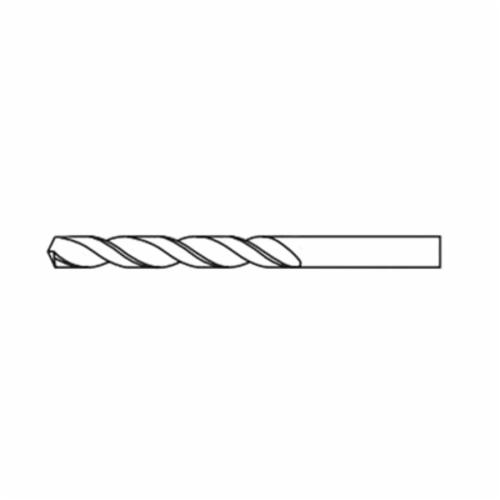

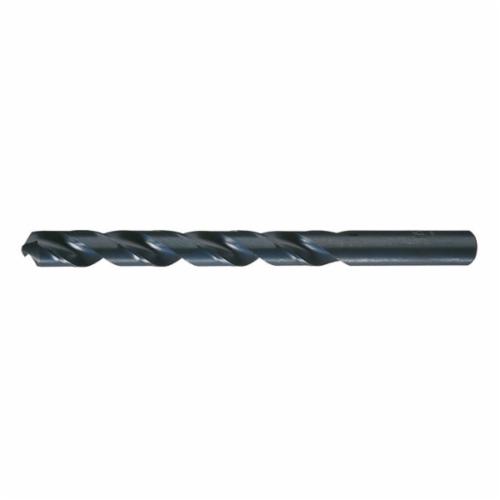

Chicago-Latrobe® 45679 150ASP Heavy Duty Jobber Length Drill Bit, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 135 deg Point, HSS, Oxide Treated
Chicago-Latrobe® 45679 150ASP Heavy Duty Jobber Length Drill Bit, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 135 deg Point, HSS, Oxide Treated
Chicago-Latrobe® 45679 150ASP Heavy Duty Jobber Length Drill Bit, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 135 deg Point, HSS, Oxide Treated
- Brand: Chicago-Latrobe®
- Mfr# : 45679
- Item # : GRE 45679
- UPC #: 662355456798
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Heavy duty construction for drilling in tougher materials
- 135 deg P3 split point is self-centering for reduced thrust and easier penetration
DESCRIPTION
Chicago-Latrobe® Jobber Length Drill Bit, Heavy Duty, Series: 150ASP, Imperial, #9 Drill - Wire, 0.196 in Drill - Decimal Inch, 3-5/8 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-7/16 in Flute Length, 0.196 in Dia x 1.1875 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Oxide Treated, Applicable Materials: Alloy Steel, Cast Iron, Stainless Steel and Tool Steel
SPECIFICATIONS
| Type | : Heavy Duty |
| Series | : 150ASP |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Wire | : #9 |
| Drill Size - Decimal Inch | : 0.196 in |
| Overall Length | : 3-5/8 in |
| Cutting Depth | : 5XD |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 2-7/16 in |
| Shank Size | : 0.196 in Dia x 1.1875 in L |
| Shank Type | : Straight |
| Point Angle | : 135 deg |
| Point Type | : Split |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Through Coolant (Yes/No) | : No |
| Material | : HSS |
| Finish | : Oxide Treated |
| Applicable Materials | : Alloy Steel, Cast Iron, Stainless Steel and Tool Steel |
APPLICATION INFO
| Standard/Approvals | : NAS 907 |
| Application | : For drilling in tougher materials |
