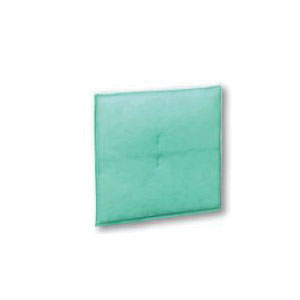

Koch Filter® 132-2424-01 Maxi-Grid™ MG200 3-Ply Internally Supported Panel Filter, 24 in W x 24 in H, MERV: MERV 7, 180 deg F, Domestic
Koch Filter® 132-2424-01 Maxi-Grid™ MG200 3-Ply Internally Supported Panel Filter, 24 in W x 24 in H, MERV: MERV 7, 180 deg F, Domestic
Koch Filter® 132-2424-01 Maxi-Grid™ MG200 3-Ply Internally Supported Panel Filter, 24 in W x 24 in H, MERV: MERV 7, 180 deg F, Domestic
- Brand: Koch Filter®
- Mfr# : 132-2424-01
- Item # : MAI 132-2424-01
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Self-sealing gasket design eliminates air bypass and allows for installation with no clips or latches
- Progressive dense, moisture resistant synthetic filter media provides optimum combination of efficiency, dust holding capacity and low pressure drop
- Heavy duty, 9 ga steel internal support wire with center cross wire provides rigidity and allows for easy installation
- Individual panels or link panels for front access holding frames or side access housings
- Excellent filter for high moisture applications
- Specialized, non-migrating tackifier improves efficiency and dust holding capacity
- Heat seal welds (in perimeter and center of filter) prevent media vibration during use, filters may be installed vertically or horizontally
- Downstream tackifier
- 243 g at 1.5 in wg dust holding capacity
DESCRIPTION
Koch Filter Corporation offers six unique Maxi-Grid™ Panel Filters for use as prefilters or final filters in commercial and industrial air filtration systems of all types. Koch MG Panels are widely used in commercial office buildings, hospitals, paint spray booths, universities and in many manufacturing facilities.
Koch Filter® Panel Filter, 3-Ply Internally Supported, Series: Maxi-Grid™ MG200, 24 in Width, 24 in Height, MERV: MERV 7, 1200 to 2000 cfm, 180 deg F, Cardboard Frame, 0.8976 Efficiency, 0.24 to 0.49 in WG Initial Resistance, Synthetic Fiber Media, White/Green, Domestic
SPECIFICATIONS
| Type | : 3-Ply Internally Supported |
| Series | : Maxi-Grid™ MG200 |
| Width | : 24 in |
| Height | : 24 in |
| MERV | : 7 |
| Flow Rate | : 1200 to 2000 cfm |
| Temperature Rating | : 180 deg F |
| Frame Material | : Cardboard |
| Efficiency | : 0.8976 |
| Initial Resistance | : 0.24 to 0.49 in WG |
| Media Material | : Synthetic Fiber |
| Color | : White/Green |
| Domestic/Import | : Domestic |
APPLICATION INFO
| Standard/Approvals | : ASHRAE 52.1/52.2-2007|NAFA Standard|UL Class 1|Energy Star Certified|USGBC Member |
| Application | : For commercial office buildings, hospitals, paint spray booths, universities and many manufacturing facilities |
| Country of Origin | : US |
