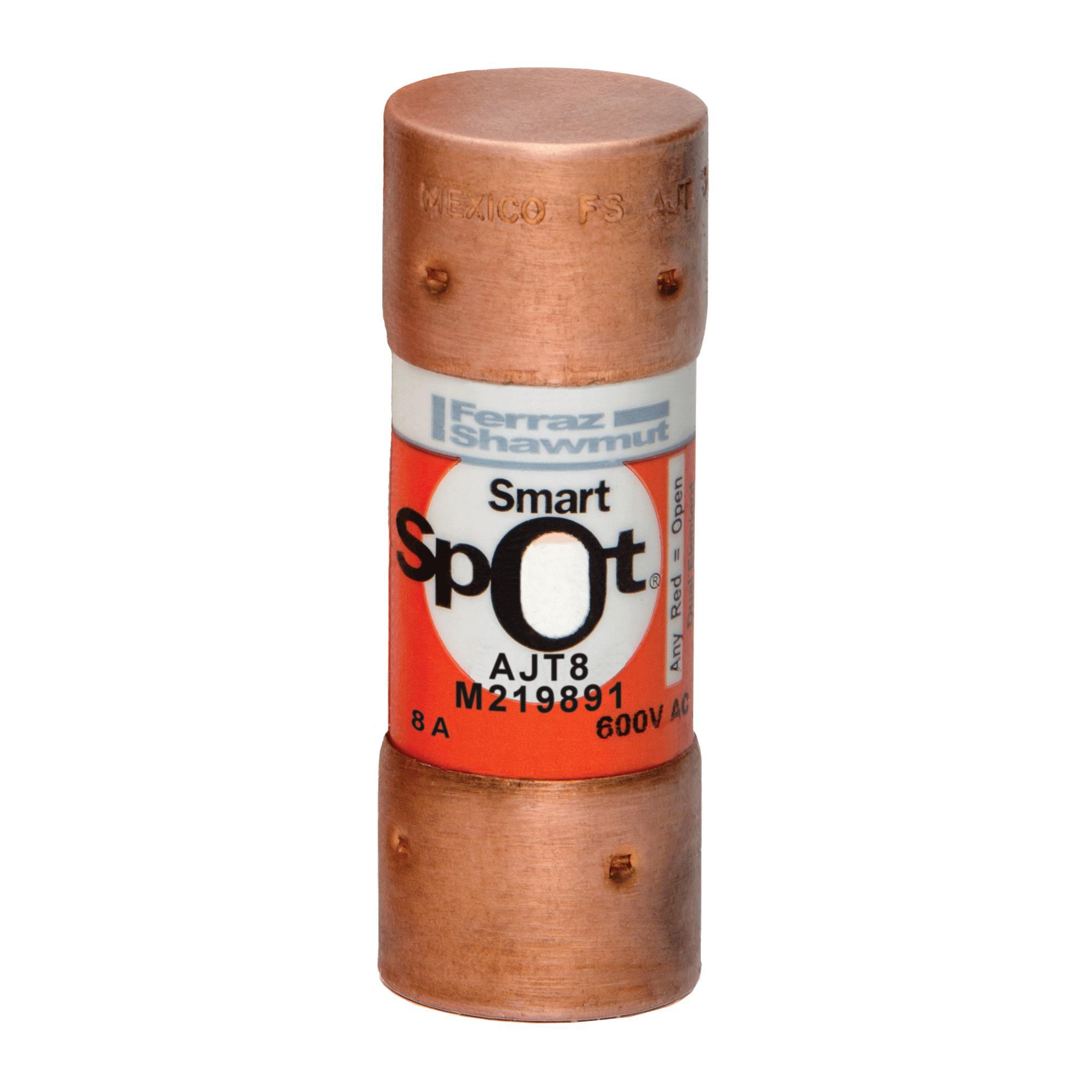

Mersen AMP-TRAP® 2000 SmartSpot® AJT8 Current Limiting Low Voltage North American Time Delay Power Fuse, 8 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
Mersen AMP-TRAP® 2000 SmartSpot® AJT8 Current Limiting Low Voltage North American Time Delay Power Fuse, 8 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
Mersen AMP-TRAP® 2000 SmartSpot® AJT8 Current Limiting Low Voltage North American Time Delay Power Fuse, 8 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
- Brand: Mersen
- Mfr# : AJT8
- Item # : FUS AJT8
- UPC #: 782001963095
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
DESCRIPTION
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 8 A, 600 V AC, 200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 13/16 in Dia x 2-1/4 in L Body
SPECIFICATIONS
| Type | : Current Limiting Low Voltage North American Time Delay |
| Series | : AJT |
| Indicating/Non-Indicating | : Indicating |
| Rejection/Non-Rejection | : Rejection |
| Amperage Rating | : 8 A |
| Voltage Rating | : 600 V AC |
| Interrupt Rating | : 200 kA |
| Class | : J |
| Terminal Type | : Ferrule |
| Mounting Type | : Clip |
| Body Type | : Cylindrical |
| Element | : Dual |
| Material | : Fiberglass |
| Body Size | : 13/16 in Dia x 2-1/4 in L |
APPLICATION INFO
| Standard/Approvals | : CSA C22.2 No. 248.8|DC Listed|IEC 269-2-1|RoHS Compliant|UL 248|UL 248-8 File No. E2137 |
| Application | : Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers Applications |
| Country of Origin | : MX |
