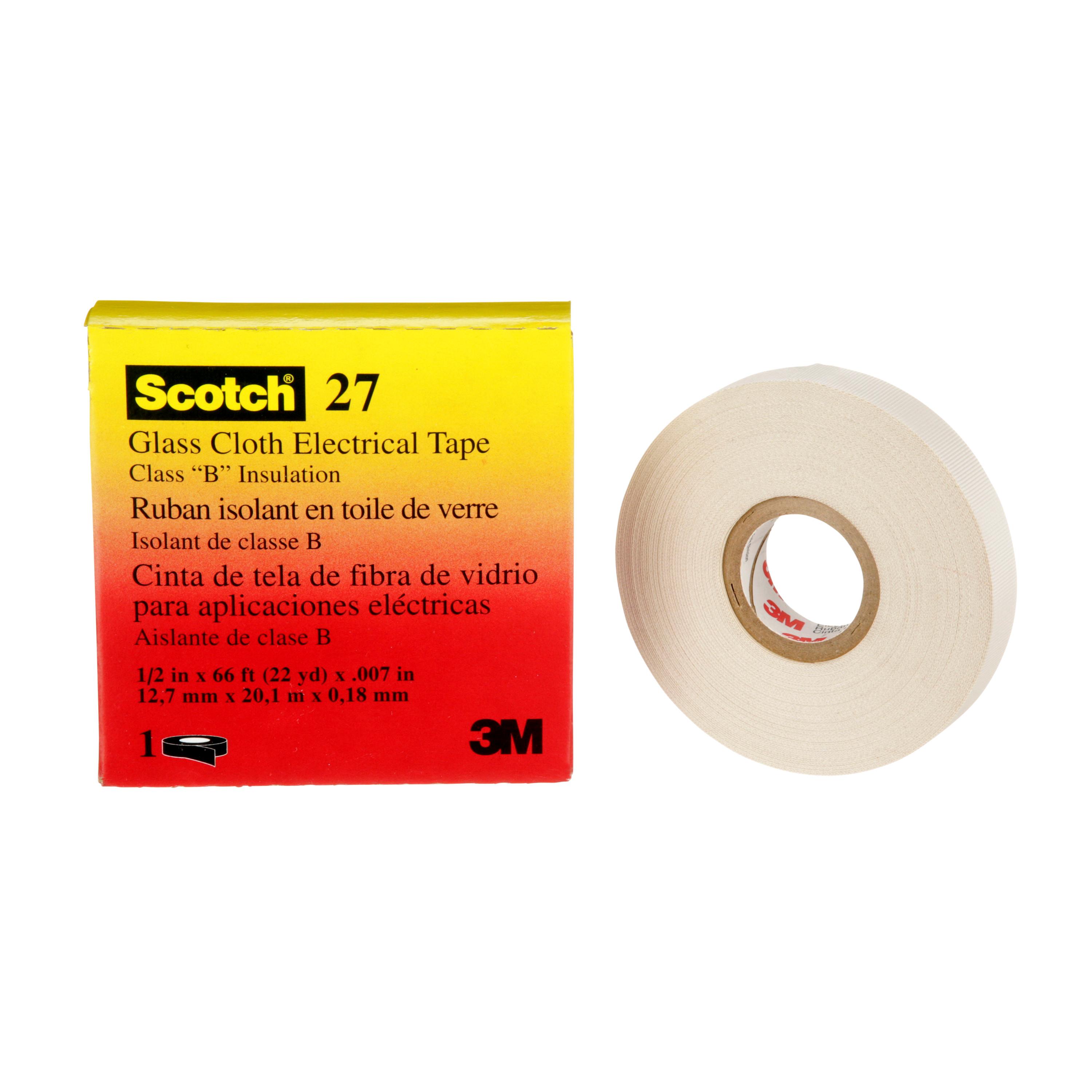

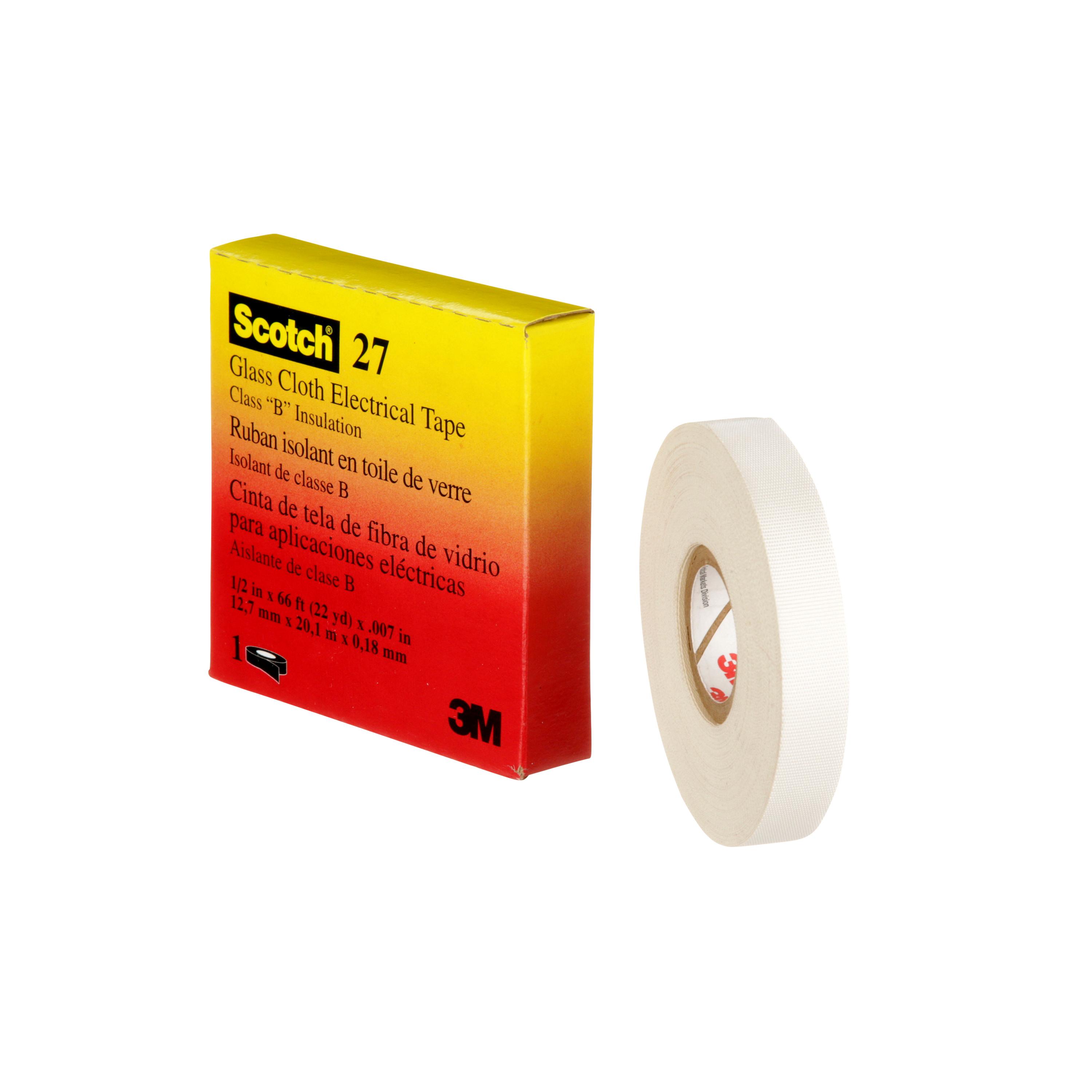

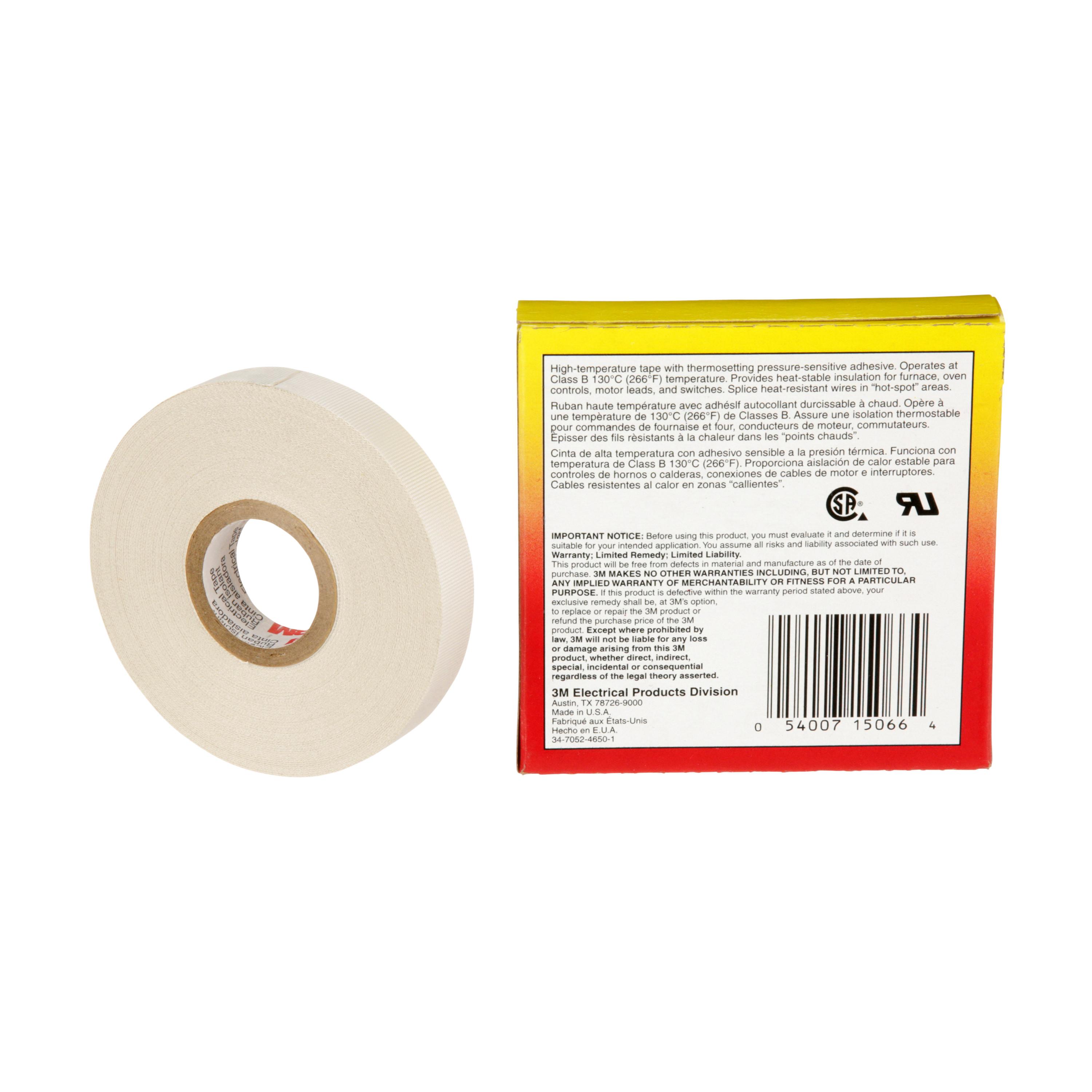

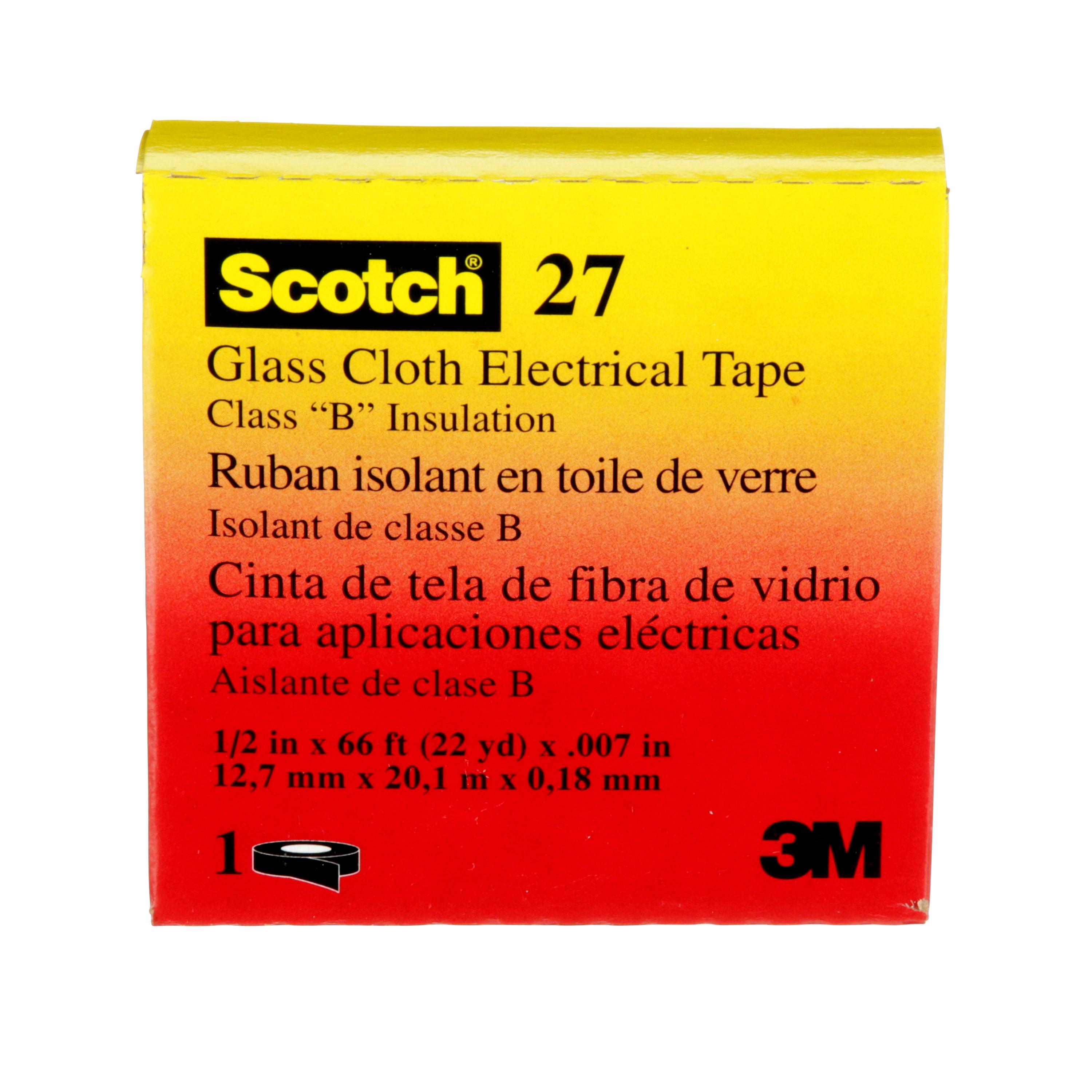

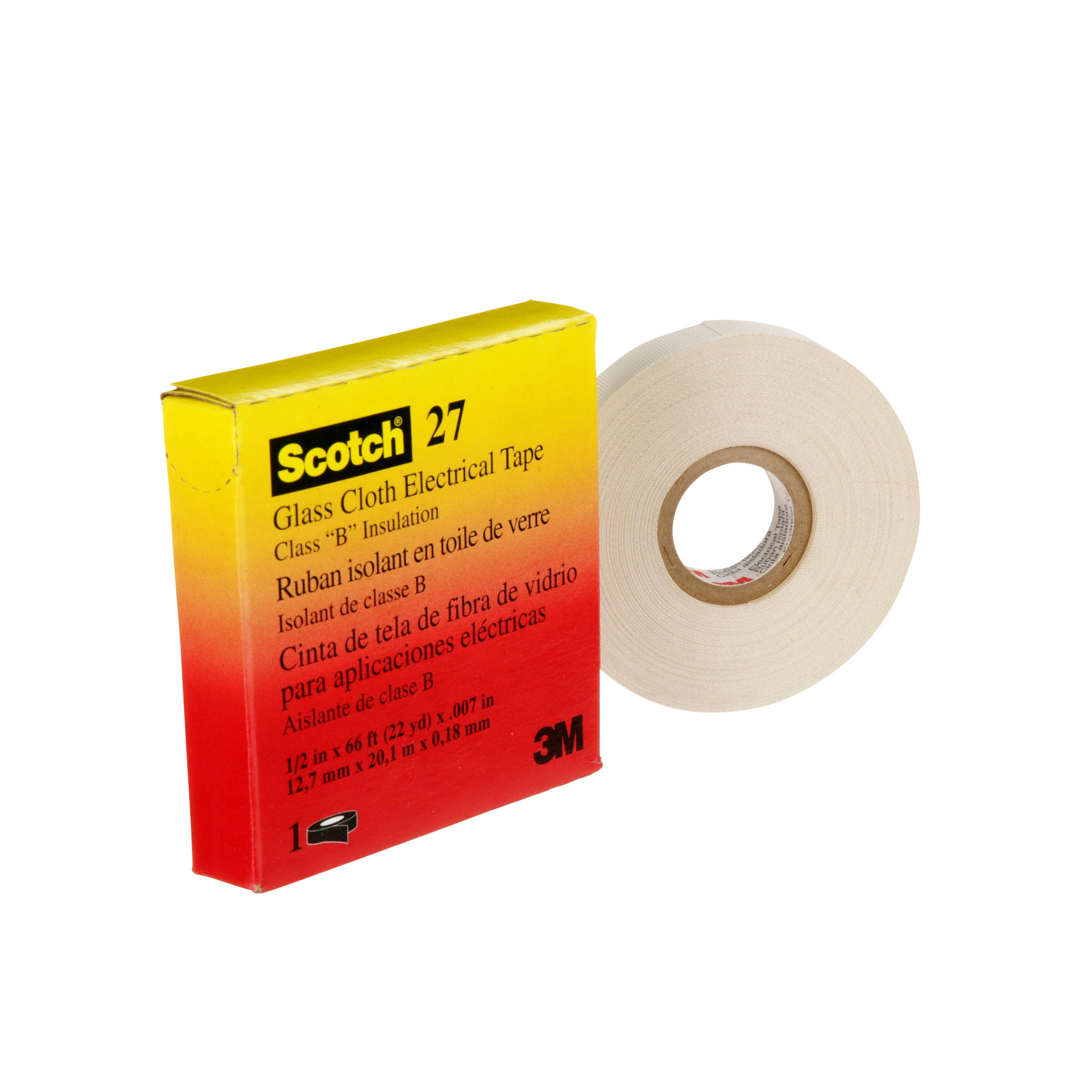

3M™ 7000005814 Tape, 22 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, Glass Cloth Backing, White

3M™ 7000005814 Tape, 22 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, Glass Cloth Backing, White

3M™ 7000005814 Tape, 22 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, Glass Cloth Backing, White


  • Brand: 3M™
  • Mfr# : 7000005814
  • Item # : MMM 15066
  • UPC #: 054007150664
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000005814_Specification_Sheet.pdf
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000031459_Catalog.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000031459_User_Manual.pdf
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf

FEATURES

  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
  • Adhesive is specially designed and prepared to provide corrosion protection

DESCRIPTION

The 3M Glass Cloth Electrical Tape 27 is a great option when it comes to electrical jobs that require heat insulation, edge tear resistance and adaptable tape applications. The composite in its material is suitable for 600V rated, dry location application on motors and transformers.       3M Glass Cloth Electrical Tape 27 features a pressure sensitive, high temperature, thermosetting, rubber adhesive that offers exceptional bonding once adhered. This reactive compound results in a non-corrosive adhesive that offers solvent resistant protection; providing stability and reliability. A 7-mil woven insulating glass cloth provides high mechanical strength, high temperature resistance and heat-stable insulation for heating units and oven controls, motor leads and switches. This glass cloth backing holds a feature suitable for tough 600V ratings and endures extreme temperature operations (low temperatures up to 302F / 0 to 150C) often presented in application environments. Resists rotting and shrinking after extended use.

3M™, 7000005814, Tape, 22 yd Length, 0.5 in Width, 7 mil Thickness, White, Rubber Adhesive, Glass Cloth Backing, 600 V, 2725 V Dielectric Strength, 302 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: UL Listed/RoHS 211/65/EU/CSA Certified

SPECIFICATIONS

Type      :    Premium-Grade Special Use
Length      :    22 yd
Width      :    0.5 in
Thickness      :    7 mil
Material Type      :    Glass Cloth
Color      :    White
Core Diameter      :    3 in
Adhesive Material      :    Rubber
Backing Material      :    Glass Cloth
Adhesion Strength      :    30 in-oz
Voltage Rating      :    600 V
Dielectric Strength      :    2725 V
Tensile Strength      :    150 in-lb
Maximum Operating Temperature      :    302 deg F
Minimum Operating Temperature      :    32 deg F
Specifications Met      :    UL Listed/RoHS 211/65/EU/CSA Certified

APPLICATION INFO

Standard/Approvals      :    CSA Certified|UL Listed|RoHS 2011/65/EU Compliant
Application      :    For Electrical Maintenance
Country of Origin      :    US
