Cleveland® C58532 1093 General Purpose High Helix Spiral Flute Machine Tap, Right Hand Cutting, #6-32 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS

Cleveland® C58532 GRE C58532

Cleveland® C58532 1093 General Purpose High Helix Spiral Flute Machine Tap, Right Hand Cutting, #6-32 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS

Cleveland® C58532 1093 General Purpose High Helix Spiral Flute Machine Tap, Right Hand Cutting, #6-32 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS

  • Brand: Cleveland®
  • Mfr# : C58532
  • Item # : GRE C58532
  • UPC #: 697334585329
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

DESCRIPTION

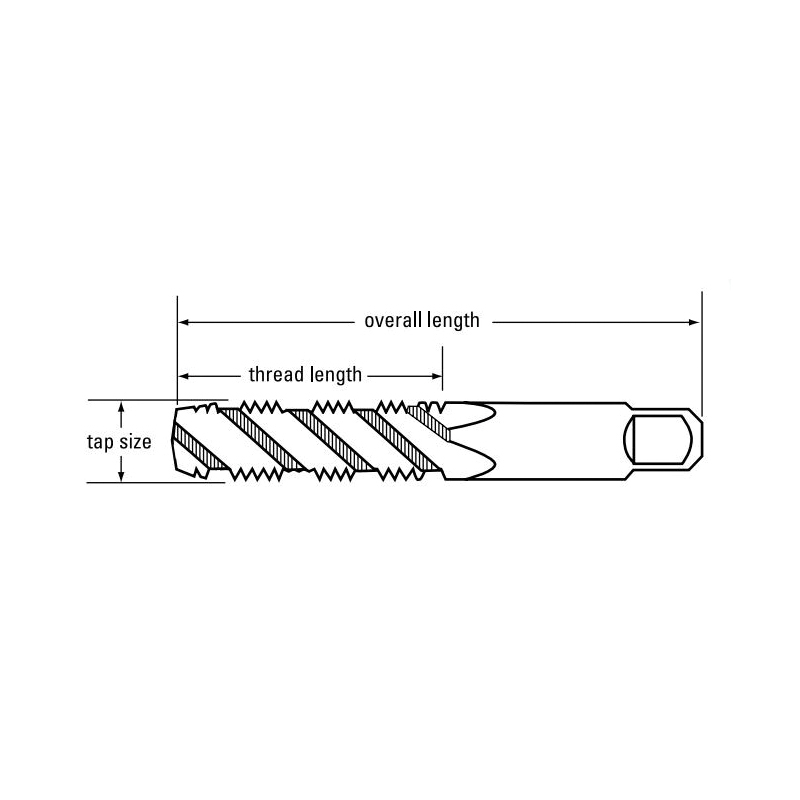

Cleveland® Spiral Flute Machine Tap, General Purpose High Helix, Series: 1093, Measurement System: Imperial, Ground/UNC Thread Standard, #6-32 Thread, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting Direction, 0.38 in Thread Length, 2 in Overall Length, 0.141 in Shank Diameter, 3/16 in Shank Length, Right Hand Flute Direction, H3 Thread Limit, Non-Ferrous Metal and Steel Material Application, No Through Coolant

SPECIFICATIONS

Type      :    General Purpose High Helix
Series      :    1093
Measurement System      :    Imperial
Thread Standard      :    Ground/UNC
Thread Size      :    #6-32
Chamfer Type      :    Plug
Number of Flutes      :    2
Material      :    HSS
Finish/Coating      :    Bright
Class of Fit      :    2B
Cutting Direction      :    Right Hand
Thread Length      :    0.38 in
Overall Length      :    2 in
Shank Diameter      :    0.141 in
Shank Length      :    3/16 in
Flute Direction      :    Right Hand
Thread Limit      :    H3
Material Application      :    Non-Ferrous Metal and Steel
Through Coolant (Yes/No)      :    No

APPLICATION INFO

Standard/Approvals      :    USCTI 302A
Application      :    For blind hole applications
Country of Origin      :    US
