Cleveland® C12304 2410 Standard Taper Shank Drill Bit, 1-15/32 in Drill - Fraction, 1.4688 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS
Cleveland® C12304 2410 Standard Taper Shank Drill Bit, 1-15/32 in Drill - Fraction, 1.4688 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS
Cleveland® C12304 2410 Standard Taper Shank Drill Bit, 1-15/32 in Drill - Fraction, 1.4688 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS
- Brand: Cleveland®
- Mfr# : C12304
- Item # : GRE C12304
- UPC #: 697334123040
- Min. Order Qty: :
- Qty. Interval: :
DESCRIPTION

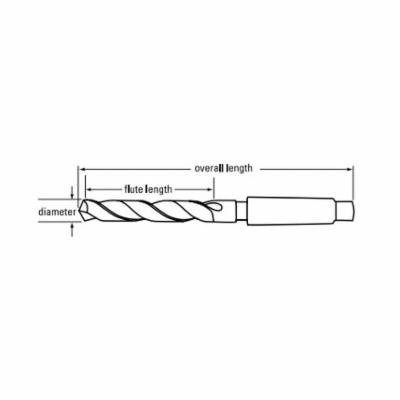

Cleveland® Taper Shank Drill Bit, Standard, Series: 2410, Imperial, 1-15/32 in Drill - Fraction, 1.4688 in Drill - Decimal Inch, 14-7/8 in Overall Length, 9-1/4 in Cutting Depth, 2 Flutes, Spiral Flute, 9-1/4 in Flute Length, #4 Morse Taper Shank Taper Designation, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Oxide Treated, Applicable Materials: Alloy Tool Steel, Carbon Steel and Cast Iron
SPECIFICATIONS
| Type | : Standard |
| Series | : 2410 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Fraction | : 1-15/32 in |
| Drill Size - Decimal Inch | : 1.4688 in |
| Overall Length | : 14-7/8 in |
| Cutting Depth | : 9-1/4 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Flute Length | : 9-1/4 in |
| Shank Taper Designation | : #4 Morse Taper |
| Point Angle | : 118 deg |
| Point Type | : Radial |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Through Coolant (Yes/No) | : No |
| Material | : HSS |
| Finish | : Oxide Treated |
| Applicable Materials | : Alloy Tool Steel, Carbon Steel and Cast Iron |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Purpose Applications |
| Country of Origin | : US |
