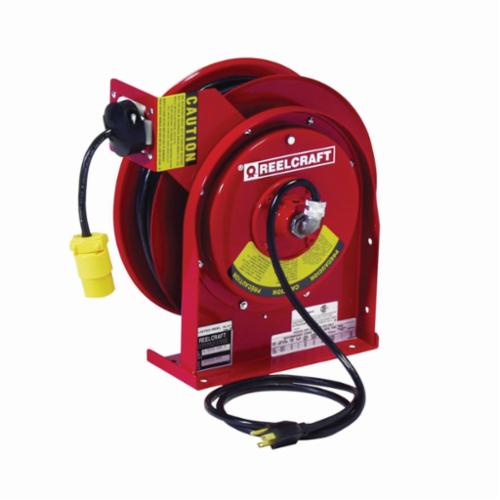

Reelcraft® L 4545 123 3 L 4000 Retractable Power Cord Reel With SJEOOW Cord, 125 V AC, 15 A, 45 ft L Cord, 12 AWG Conductor, 1 Outlets

Reelcraft® L 4545 123 3 REE L4545-123-3

Reelcraft® L 4545 123 3 L 4000 Retractable Power Cord Reel With SJEOOW Cord, 125 V AC, 15 A, 45 ft L Cord, 12 AWG Conductor, 1 Outlets

Reelcraft® L 4545 123 3 L 4000 Retractable Power Cord Reel With SJEOOW Cord, 125 V AC, 15 A, 45 ft L Cord, 12 AWG Conductor, 1 Outlets

  • Brand: Reelcraft®
  • Mfr# : L 4545 123 3
  • Item # : REE L4545-123-3
  • UPC #: 699567000358
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • The robotically steel base offers maximum strength and consistent quality
  • Long life drive spring is declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Quality finish and corrosions-resistant - individually powder coated components offer the maximum protection from premature corrosion

DESCRIPTION

The heavy duty series 4000 cord reels are all steel construction and compact for a wide range of applications with critical space requirements. A robust collector ring assures maximum conductivity current flow. Guide arm adjusts to two positions.

Reelcraft® Power Cord Reel, Retractable, Series: L 4000, 125 V AC, 15 A, 45 ft Cord, 12 AWG Conductor, Black Cord, Steel Reel, 12-5/8 in Reel Dia, Bench/Ceiling/Wall Reel Mounting, NEMA 5-15R/Single Receptacle, Reverse Plug, 1 Outlets, 0 to 125 deg F, Heavy Duty Grade, Red, 13-1/4 in H x 12-5/8 in W x 9-3/8 in D

SPECIFICATIONS

Type      :    Retractable
Series      :    L 4000
Voltage Rating      :    125 VAC
Amperage Rating      :    15 A
Cord Length      :    45 ft
Conductor Size      :    12 AWG
Cord Color      :    Black
Reel Material      :    Steel
Reel Diameter      :    12-5/8 in
Reel Mounting Type      :    Bench/Ceiling/Wall
Receptacle Type      :    NEMA 5-15R/Single
Plug Type      :    Reverse
Number of Outlets      :    1
Temperature Rating      :    0 to 125 deg F
Grade      :    Heavy Duty
Color      :    Red
Dimensions      :    13-1/4 in H x 12-5/8 in W x 9-3/8 in D

APPLICATION INFO

Standard/Approvals      :    CSA Certified, UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
Application      :    Industrial
Country of Origin      :    US
