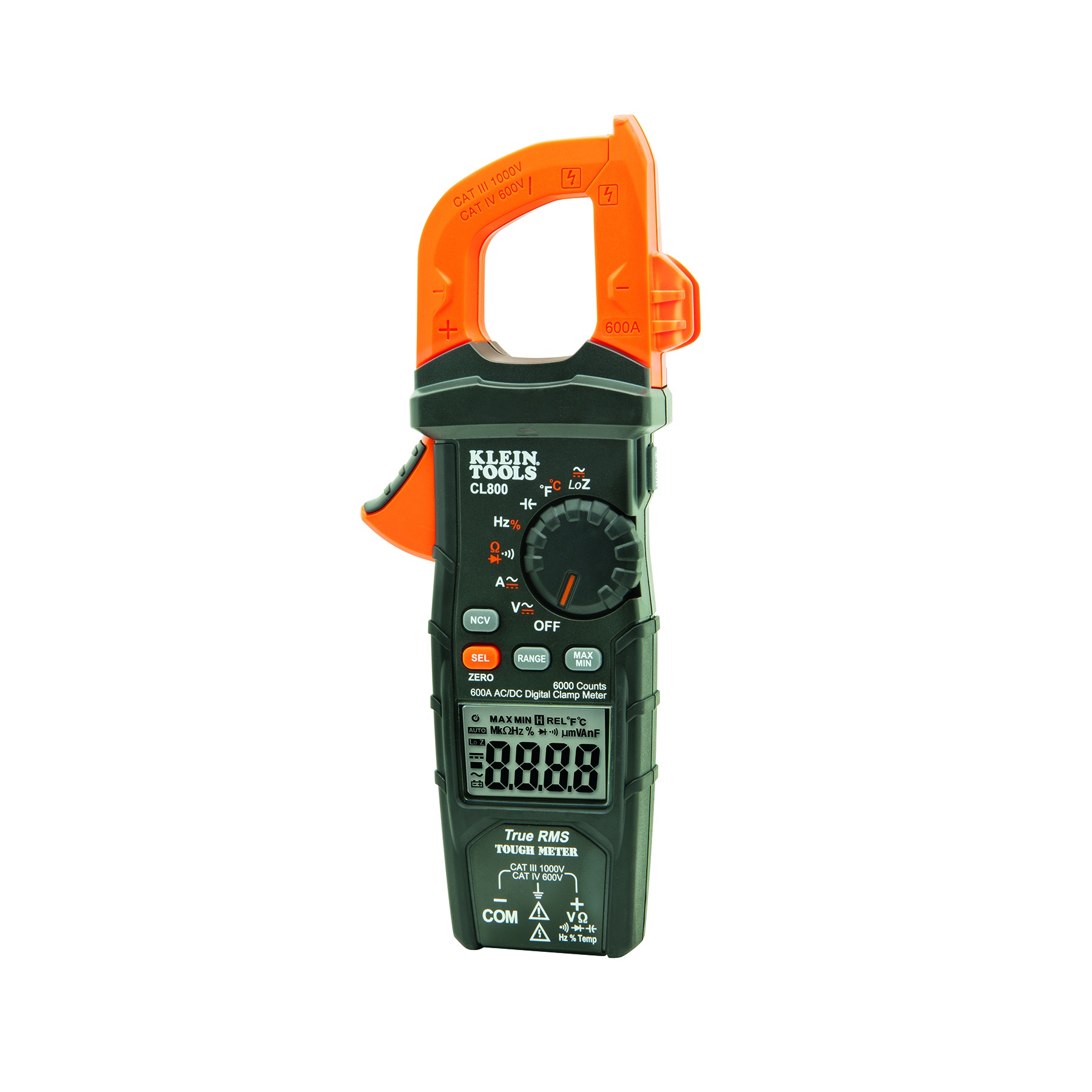

Klein® CL800 AC Auto-Ranging Low Impedance Mode Auto Off Digital Clamp Meter, 1000 V AC/DC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display
Klein® CL800 AC Auto-Ranging Low Impedance Mode Auto Off Digital Clamp Meter, 1000 V AC/DC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display
Klein® CL800 AC Auto-Ranging Low Impedance Mode Auto Off Digital Clamp Meter, 1000 V AC/DC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, LCD Display
- Brand: Klein®
- Mfr# : CL800
- Item # : KLE CL800
- UPC #: 092644690167
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Specification Sheet
FEATURES
- Dual backlit display
- Clamp measures AC current and thermocouple probe measure temperature
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2m) drop
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
DESCRIPTION
Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Klein® Digital Clamp Meter, AC Auto-Ranging Low Impedance Mode Auto Off, 1000 V AC/DC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, Counts: 6000, LCD, +/- 2% + 5 Digits Accuracy, +/-1.5% + 5 Digits AC, +/-1.2% + 3 Digits DC Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, Class 2, Double Insulation, (2) AAA Batteries, 32 to 104 deg F Operating, 3.82 in W x 1.54 in D x 9.09 in H
SPECIFICATIONS
| Type | : AC Auto-Ranging Low Impedance Mode Auto Off |
| Electrical Ratings | : 1000 V AC/DC, 600 A |
| Resistance | : 60 MOhm |
| Frequency Rating | : 50 to 400 Hz |
| Jaw Capacity | : 1-3/8 in |
| Counts | : 6000 |
| Display Type | : LCD |
| AC Current Accuracy | : +/- 2% + 5 Digits |
| Voltage Accuracy | : +/-1.5% + 5 Digits AC, +/-1.2% + 3 Digits DC |
| Safety Rating | : CAT IV 600 V AC, CAT III 1000 V AC, Class 2, Double Insulation |
| Power Source | : (2) AAA Batteries |
| Operating Temperature | : 32 to 104 deg F |
| Dimensions | : 3.82 in W x 1.54 in D x 9.09 in H |
APPLICATION INFO
| Standard/Approvals | : CAT IV 600V; CE Marking|CE Marking|CUS Listed|ETL Listed|PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information |
| Application | : For use in basic and controlled electromagnetic environments like residential, office and light-industrial locations and measures current |
| Country of Origin | : CN |
