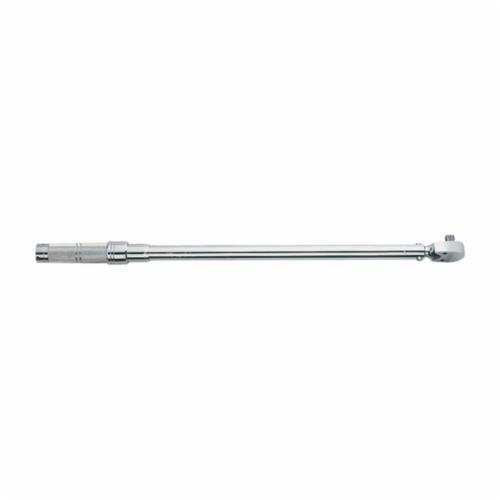

Proto® J6016C C Series Micrometer Torque Wrench, 1/2 in Drive, 30 to 150 ft-lb, Ratcheting Head, 1 ft-lb Graduation, 21-1/2 in OAL, ASME B107.14M

Proto® J6016C STP J6016C

Proto® J6016C C Series Micrometer Torque Wrench, 1/2 in Drive, 30 to 150 ft-lb, Ratcheting Head, 1 ft-lb Graduation, 21-1/2 in OAL, ASME B107.14M

Proto® J6016C C Series Micrometer Torque Wrench, 1/2 in Drive, 30 to 150 ft-lb, Ratcheting Head, 1 ft-lb Graduation, 21-1/2 in OAL, ASME B107.14M

  • Brand: Proto®
  • Mfr# : J6016C
  • Item # : STP J6016C
  • UPC #: 662679235918
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • This Proto® torque wrench is made from high grade steel for strength and durability
  • Positive locking mechanism to dial and lock in desired torque
  • Thin head design to allow access in tight areas
  • Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
  • For strength and durability

DESCRIPTION

Proto® Micrometer Torque Wrench, Series: Modle C Series, 1/2 in Drive, 30 to 150 ft-lb, Ratcheting, Graduations: 1 ft-lb, 21-1/2 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap, ASME B107.14M, Steel, Full Polished

SPECIFICATIONS

Series      :    C Series
Drive Size      :    1/2 in
Torque Range      :    30 to 150 ft-lb
Head Type      :    Ratcheting
Graduations      :    1 ft-lb
Overall Length      :    21-1/2 in
Rotation Type      :    CW/CCW
Accuracy      :    +/-3% CW, +/-6% CCW
Setting      :    Automatic Reset
Minimum Number of Cycles      :    50000
Indicator Type      :    Audible Click
Handle Type      :    Knurled/Screw-On End Cap
Specifications Met      :    ASME B107.14M
Material      :    Steel
Finish      :    Full Polished

APPLICATION INFO

Standard/Approvals      :    ASME B107.14M
Application      :    Military and Aerospace Applications
Country of Origin      :    US
