Seco 02959837 Turning Insert, ANSI Code: TNMG432-MF2 TP2501, TNMG Insert, Material Grade: P, 220408 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
Seco 02959837 Turning Insert, ANSI Code: TNMG432-MF2 TP2501, TNMG Insert, Material Grade: P, 220408 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
Seco 02959837 Turning Insert, ANSI Code: TNMG432-MF2 TP2501, TNMG Insert, Material Grade: P, 220408 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
- Brand: Seco
- Mfr# : 02959837
- Item # : MCT 15080
- Min. Order Qty: :
- Qty. Interval: :
DESCRIPTION

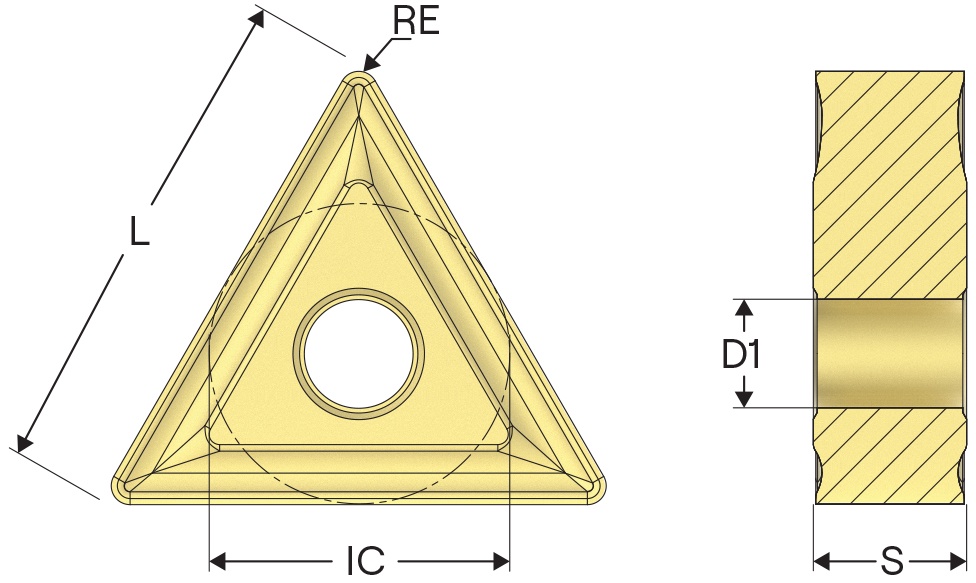

Seco Turning Insert, TNMG Insert, 220408 Insert, Triangular Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: TNMG432-MF2 TP2501, ISO Code: TNMG220408-MF2 TP2501, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
SPECIFICATIONS
| Insert Style | : TNMG |
| Insert Size | : 220408 |
| Shape | : Triangular |
| Maximum Depth of Cut | : 5.25 mm |
| Inscribed Circle | : 12.7 mm |
| Length | : 22 mm |
| Seat Size | : 22 |
| Rake | : Negative/Positive |
| Chipbreaker | : MF2 |
| Corner Radius | : 0.8 mm |
| Hole Diameter | : 5.15 mm |
| ANSI Code | : TNMG432-MF2 TP2501 |
| ISO Code | : TNMG220408-MF2 TP2501 |
| Included Angle | : 60 deg |
| Relief Angle | : 0 deg |
| Cutting Direction | : Neutral |
| Material | : Carbide |
| Finish | : CVD-TiCN+Al2O3 Coated |
| Material Grade | : P |
| For Use On | : Steel |
APPLICATION INFO
| Application | : Medium and Finishing |
| Country of Origin | : SE |
