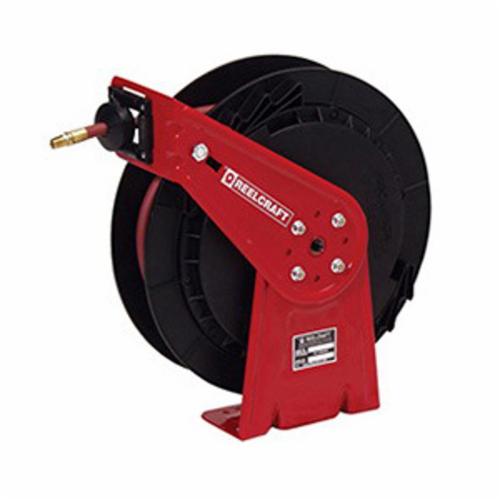

Reelcraft® RT850-OLP Low Pressure Medium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic
Reelcraft® RT850-OLP Low Pressure Medium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic
Reelcraft® RT850-OLP Low Pressure Medium Duty Hose Reel With Hose, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic
- Brand: Reelcraft®
- Mfr# : RT850-OLP
- Item # : REE RT850-OLP
- UPC #: 699567000082
- Min. Order Qty: :
- Qty. Interval: :
Instruction/Installation Manual
FEATURES
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
- High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion
- 1/2 in female NPTF inlet
- 1/2 in male NPTF outlet
- 150 deg F maximum temperature rating
DESCRIPTION
The RT series is an economical choice for a medium duty, lighter weight, spring-driven hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use. The industrial grade drive spring is protected from the environment in a polypropylene spool for longer service life. Guide arm adjusts to seven positions.
Reelcraft® Hose Reel, Low Pressure Medium Duty, Series: RT Series, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Reel Diameter, 2-1/4 in Reel Width, Retractable Spring Drive, Bench/Ceiling/Floor/Truck/Wall Mounting, Nickel Plated Steel Swivel, Buna-N Seal, 17-7/8 in H x 16-1/2 in W x 6-1/4 in D, Reinforced Stainless Steel, Powder Coated, Black/Red, Domestic
SPECIFICATIONS
| Type | : Low Pressure Medium Duty |
| Series | : RT Series |
| Hose Capacity | : 1/2 in ID x 3/4 in OD x 50 ft L |
| Pressure Rating | : 300 psi |
| Reel Diameter | : 16-1/2 in |
| Reel Width | : 2-1/4 in |
| Drive Type | : Retractable Spring |
| Mounting Type | : Bench/Ceiling/Floor/Truck/Wall |
| Swivel Material | : Nickel Plated Steel |
| Seal Type | : Buna-N |
| Dimensions | : 17-7/8 in H x 16-1/2 in W x 6-1/4 in D |
| Material | : Reinforced Stainless Steel |
| Finish | : Powder Coated |
| Color | : Black/Red |
| Domestic/Import | : Domestic |
APPLICATION INFO
| Standard/Approvals | : PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Application | : Air and Water Applications |
| Country of Origin | : US |
