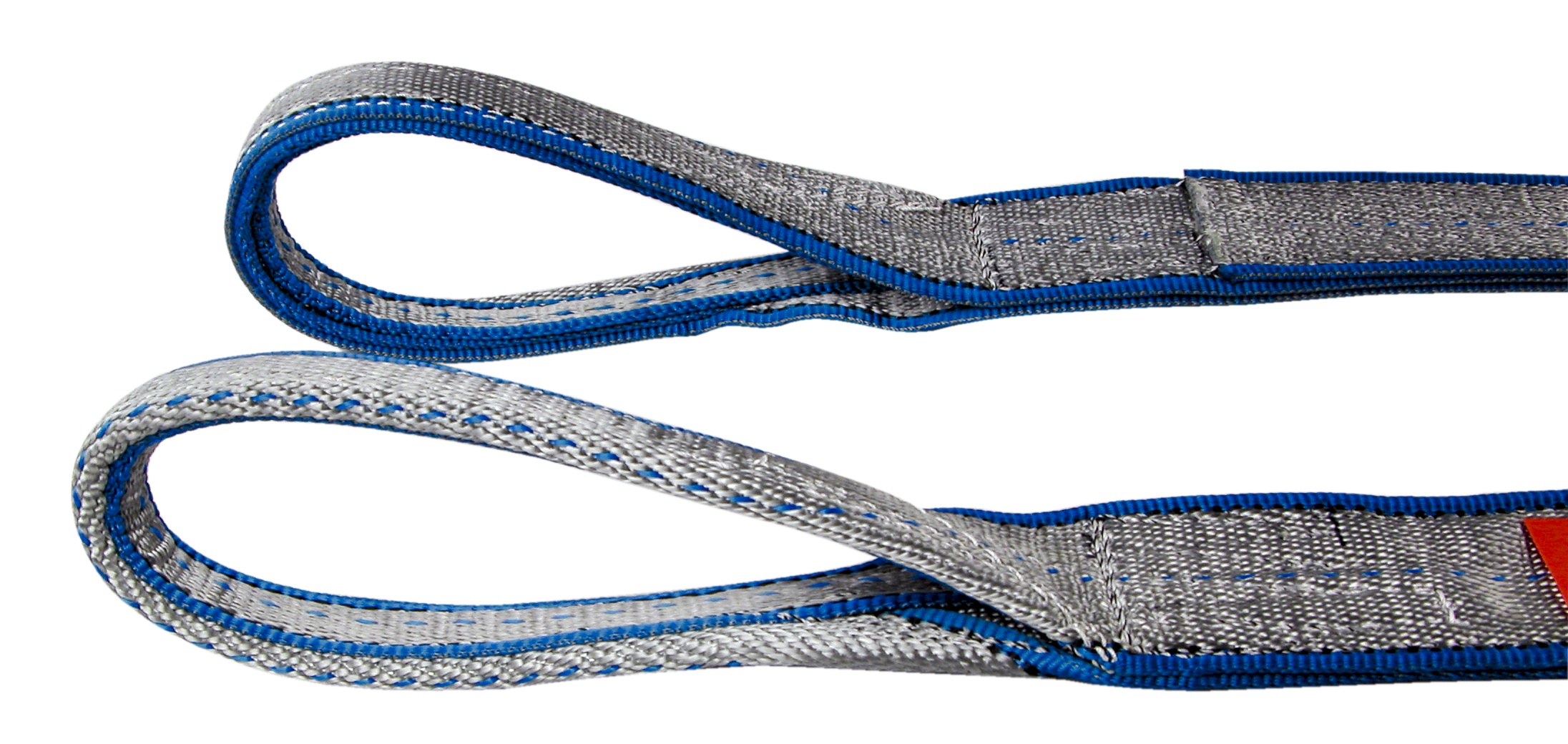

Lift-All® Tuff-Edge® II Webmaster® 1600 EE2804TFX8 Eye and Eye Web Sling, 8 ft L x 4 in W, 11500 lb, Polyester
Lift-All® Tuff-Edge® II Webmaster® 1600 EE2804TFX8 Eye and Eye Web Sling, 8 ft L x 4 in W, 11500 lb, Polyester
Lift-All® Tuff-Edge® II Webmaster® 1600 EE2804TFX8 Eye and Eye Web Sling, 8 ft L x 4 in W, 11500 lb, Polyester
- Brand: Lift-All®
- Mfr# : EE2804TFX8
- Item # : LIF ZEE2804TX8
- UPC #: 697886112837
- Min. Order Qty: :
- Qty. Interval: :
Technical Bulletin
VIDEO LINK
FEATURES
- Edge damage limit (EDL) out-of-service marker
- The EDL marker tool both simplifies the inspection process and also extends the life of the web slings, saving you money
- Web slings are light weight, flexible and have wide bearing surfaces to help protect the load
- Their stretch characteristics help to avoid shock loading problems
- Lighter weight and easier to use than chain or wire rope
- Daily use under good to rugged lifting conditions
- Red core yarn warning system aids in the inspection process
- Special polymer coated edge yarns improve edge cutting and abrasion to extend sling life
- Silver colored web treatment fights abrasion for additional sling life
- TUFF-TAG™ provides required OSHA information for the life of the sling, not just the life of the tag
- Easy Identification - Silver body, blue edges, blue center stripe
- 2x stronger after abrasion
- 2x better edge cut resistance
- 4 ft L minimum standard
- Always protect synthetic slings from being cut by corners and edges
- Tubular edge design with damage-resistant core helps protect the body fibers from cutting, keeping the inÂtegrity of the sling intact without compromising its strength
- See Sling Protection section in the Lift-All catalog
DESCRIPTION
Lift-All® Tuff-Edge® III introduces a patented design with edge-cut resistance and increased abrasion. Easily inspect webbing with Edge Damage Limit (EDL) marker.
Lift-All® Tuff-Edge® II Webmaster® 1600 Web Sling, Eye and Eye, 4 in Width, 8 ft Length, 11500 lb Vertical Hitch, 9200 lb Choker Hitch Capacity, 23000 lb Basket Hitch Capacity, 12 in Eye Length, Web Grade: Heavy Duty, 2 Ply, Polyester, Silver, Latex, -60 to 200 deg F
SPECIFICATIONS
| Type | : Eye and Eye |
| Width | : 4 in |
| Length | : 8 ft |
| Vertical Hitch Capacity | : 11500 lb |
| Choker Hitch Capacity | : 9200 lb |
| Basket Hitch Capacity | : 23000 lb |
| Eye Length | : 12 in |
| Web Grade | : Heavy Duty |
| Number of Plys | : 2 |
| Material | : Polyester |
| Color | : Silver |
| Coating | : Latex |
| Temperature Range | : -60 to 200 deg F |
APPLICATION INFO
| Standard/Approvals | : ASME B30.9|OSHA 29 CFR 1910.184|WSTDA WS-1 |
| Application | : For general purpose lifting applications |
| Country of Origin | : US |
