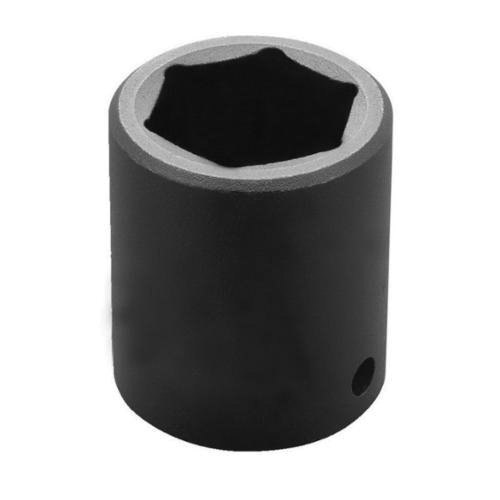

Proto® TorquePlus™ J7446H Standard Length Socket, 1/2 in Square Drive, 1-7/16 in, 6 Points
Proto® TorquePlus™ J7446H Standard Length Socket, 1/2 in Square Drive, 1-7/16 in, 6 Points
- Brand: Proto®
- Mfr# : J7446H
- Item # : STP J7446H
- UPC #: 662679341848
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Proto® 6 point impact sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius-corners design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
- Specially heat treated for the correct balance of strength and durability
- Concentric openings
- Large clearance holes
- Tight nut end tolerances
- Made from high alloy steel for greater strength
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1-7/16 in Socket, 2-15/64 in Overall Length, 1 in Opening Depth, 1-5/8 in Drive End Width, 1-59/64 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-37/64 in Bolt Clearance Depth, High Alloy Steel, Black Oxide
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : Yes |
| Measurement System | : Imperial |
| Drive Type | : Square |
| Drive Size | : 1/2 in |
| Socket Size | : 1-7/16 in |
| Overall Length | : 2-15/64 in |
| Opening Depth | : 1 in |
| Drive End Width | : 1-5/8 in |
| Socket End Width | : 1-59/64 in |
| Locking Type | : Side Locking Hole |
| Number of Points | : 6 |
| Bolt Clearance Depth | : 1-37/64 in |
| Material | : High Alloy Steel |
| Finish | : Black Oxide |
APPLICATION INFO
| Standard/Approvals | : ANSI B107.2|ASME B107.110-2012 |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
