Brady® THTEP-180-593-.5 Rectangular Raised Panel Half Pushbutton Label, 1.3 in L x 1.89 in W, Colored Blank Legend, White, B-593 Polyester, 500 per Roll Labels
Brady® THTEP-180-593-.5 Rectangular Raised Panel Half Pushbutton Label, 1.3 in L x 1.89 in W, Colored Blank Legend, White, B-593 Polyester, 500 per Roll Labels
Brady® THTEP-180-593-.5 Rectangular Raised Panel Half Pushbutton Label, 1.3 in L x 1.89 in W, Colored Blank Legend, White, B-593 Polyester, 500 per Roll Labels
- Brand: Brady®
- Mfr# : THTEP-180-593-.5
- Item # : BDY THTEP-180-593-.5
- UPC #: 662820579182
- Min. Order Qty: :
- Qty. Interval: :
Technical Bulletin
FEATURES
- Can be used as rating and serial plates using alphanumerics that require nameplate quality
- Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
- Service temperature of -4 to 212 F (-20 to 100 C)
- Has i75-series smart properties on the core that eliminates the need to adjust heat, speed, sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll
- If this roll is used in Brady i5100 or IP model printers it will function with smart operation in those printers with the exception that the Supply Remaining gauge on the display may be overstated
- Contact Brady tech support for further information
DESCRIPTION

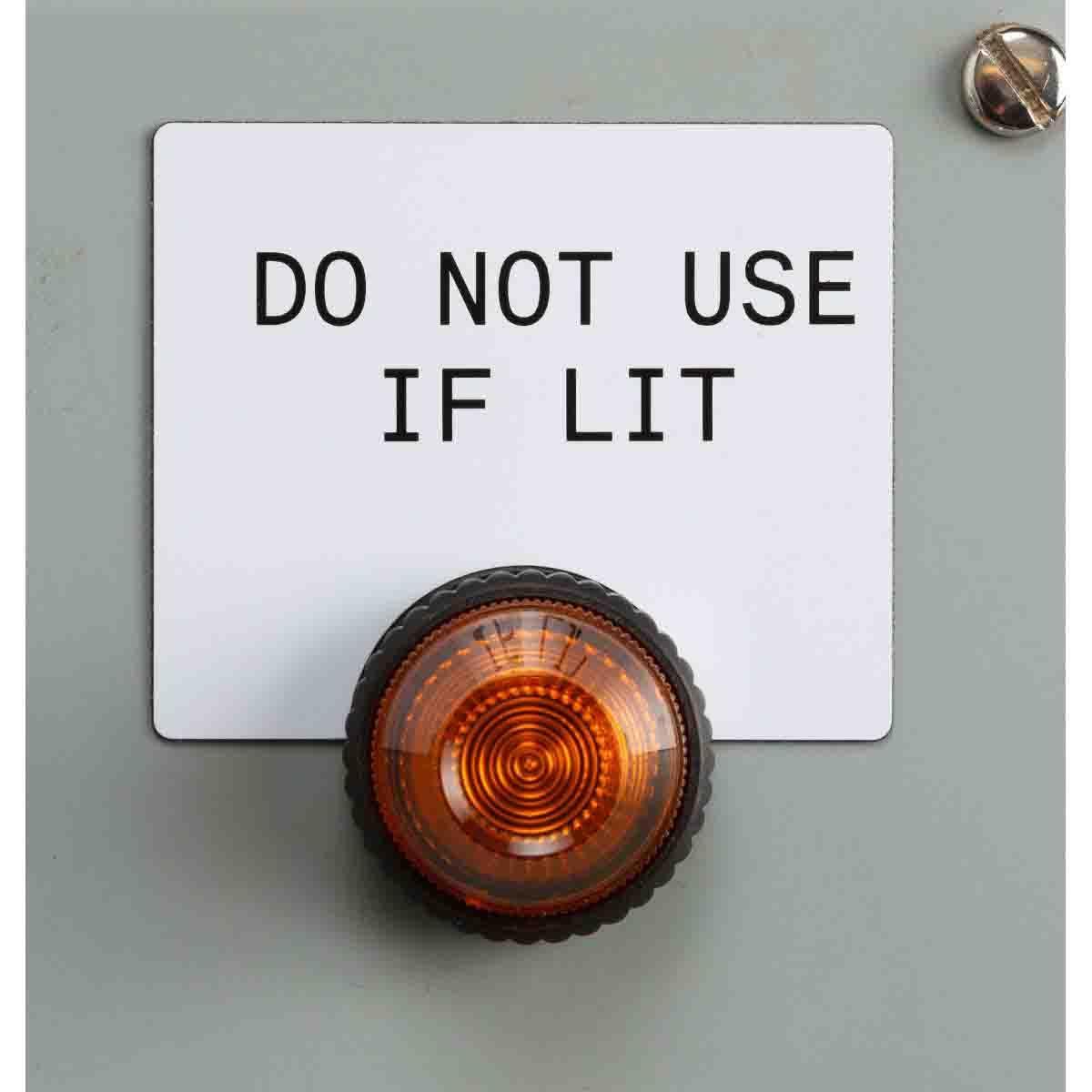

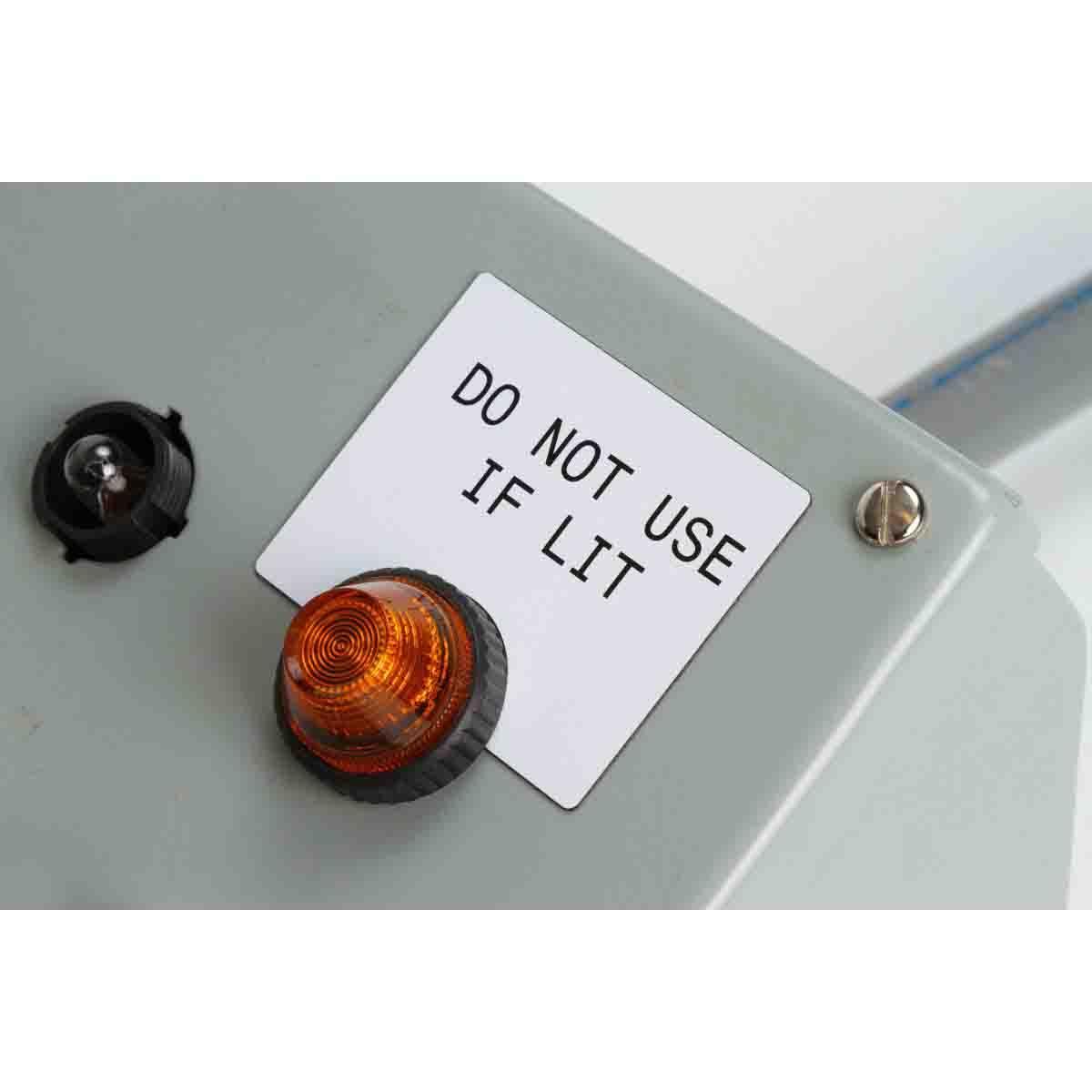

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.
Brady® Raised Panel Half Pushbutton Label, Rectangular, 1.3 in Length, 1.89 in Width, Legend: Colored Blank, White Legend/Background, B-593 Polyester, For Use With: R4400/R6000 Series Ribbons, BBP®81 Label Printer, Brady IP® Series Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer and THT 3 in Core Printers, 500 per Roll Labels
SPECIFICATIONS
| Type | : Rectangular |

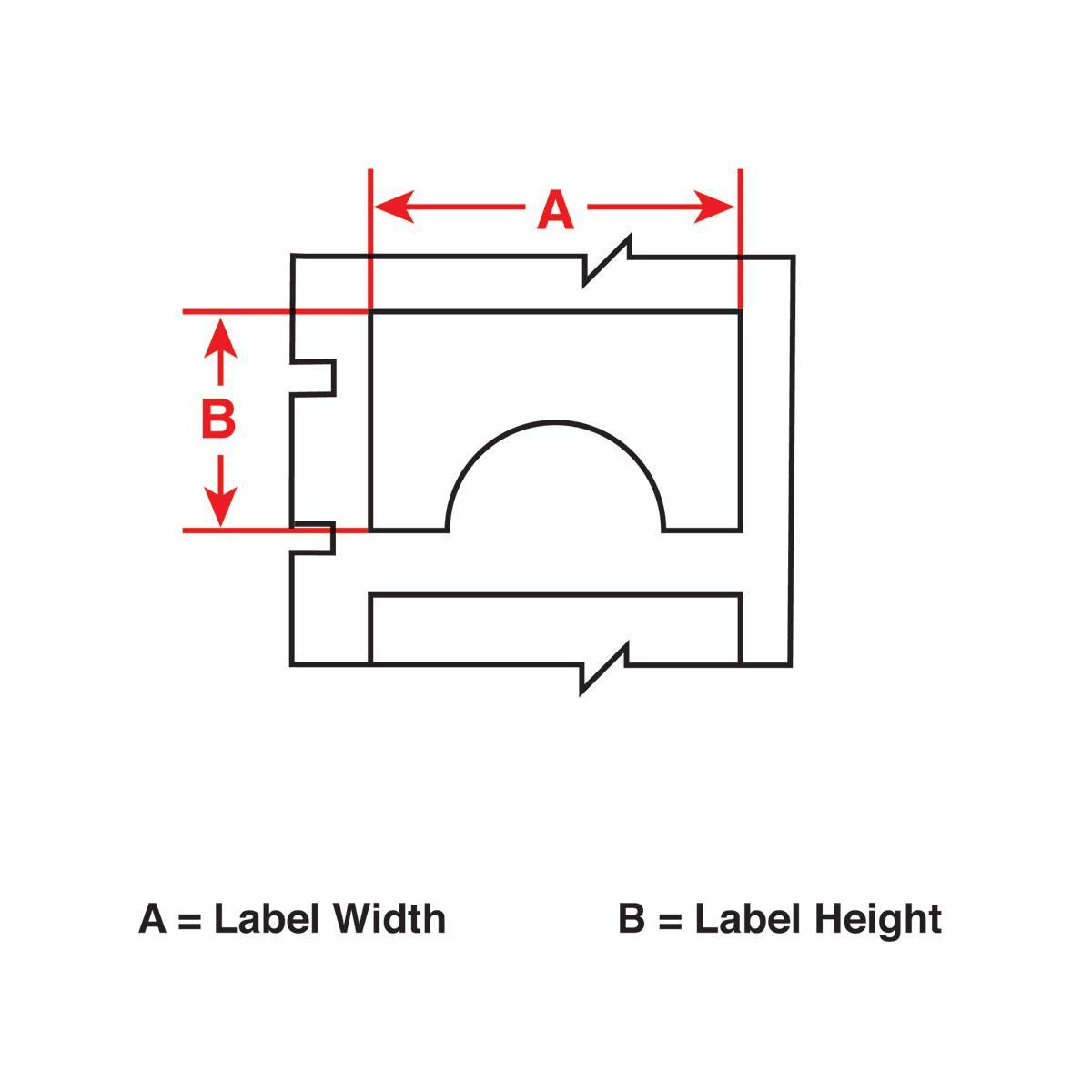

| Length | : 1.3 in |
| Width | : 1.89 in |
| Legend | : Colored Blank |
| Legend/Background Color | : White |
| Material | : B-593 Polyester |
| Suitable For Use With | : R4400/R6000 Series Ribbons, BBP®81 Label Printer, Brady IP® Series Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer and THT 3 in Core Printers |

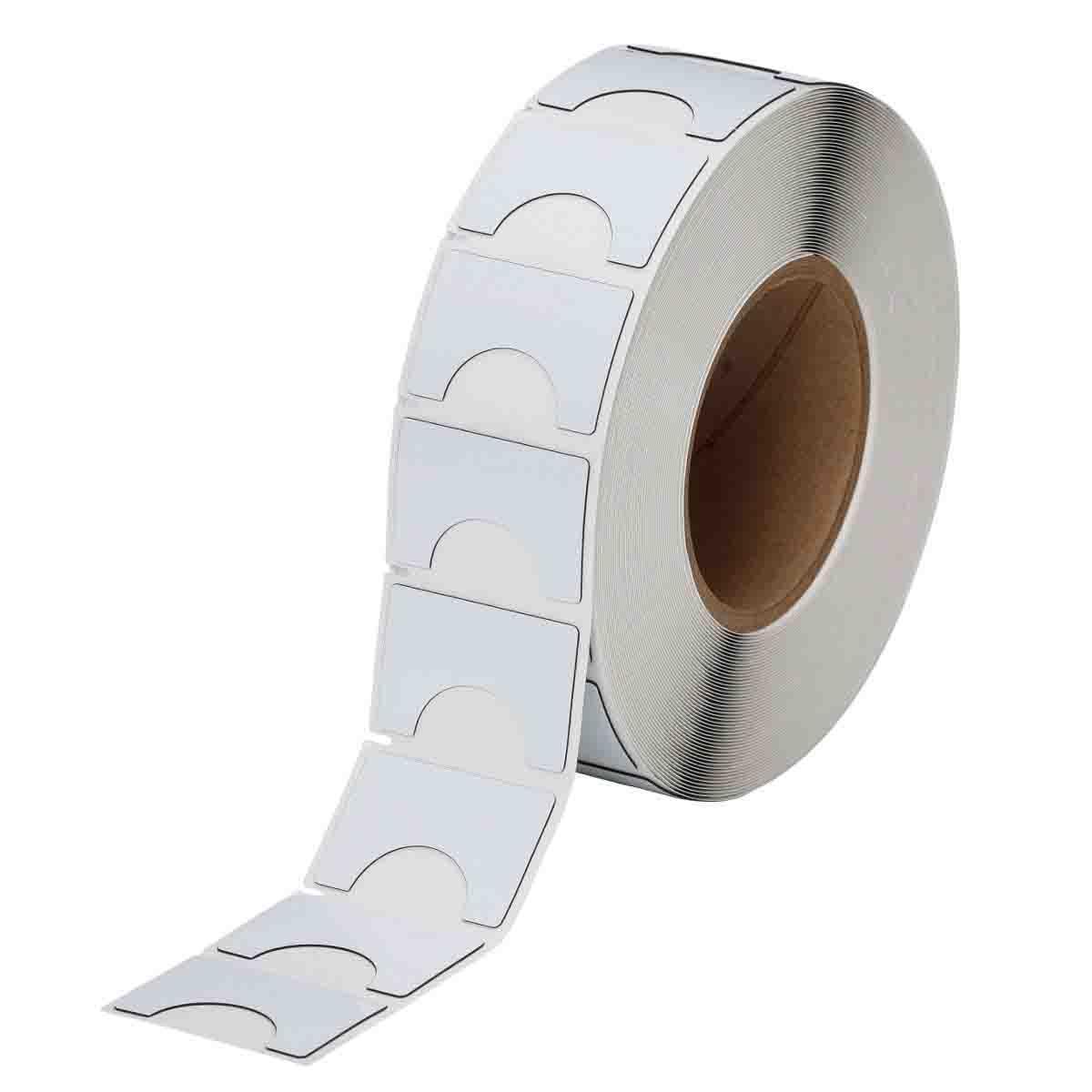

| Number of Labels | : 500 per Roll |
APPLICATION INFO
| Standard/Approvals | : ASTM D1000|ASTM D2979|UL Listed |
| Application | : Electrical, General Identification, Inspection Repair, Rating and Name Plates, Industrial Identification, Panel Identification and Indoor/Outdoor Applications |
| Country of Origin | : US |
