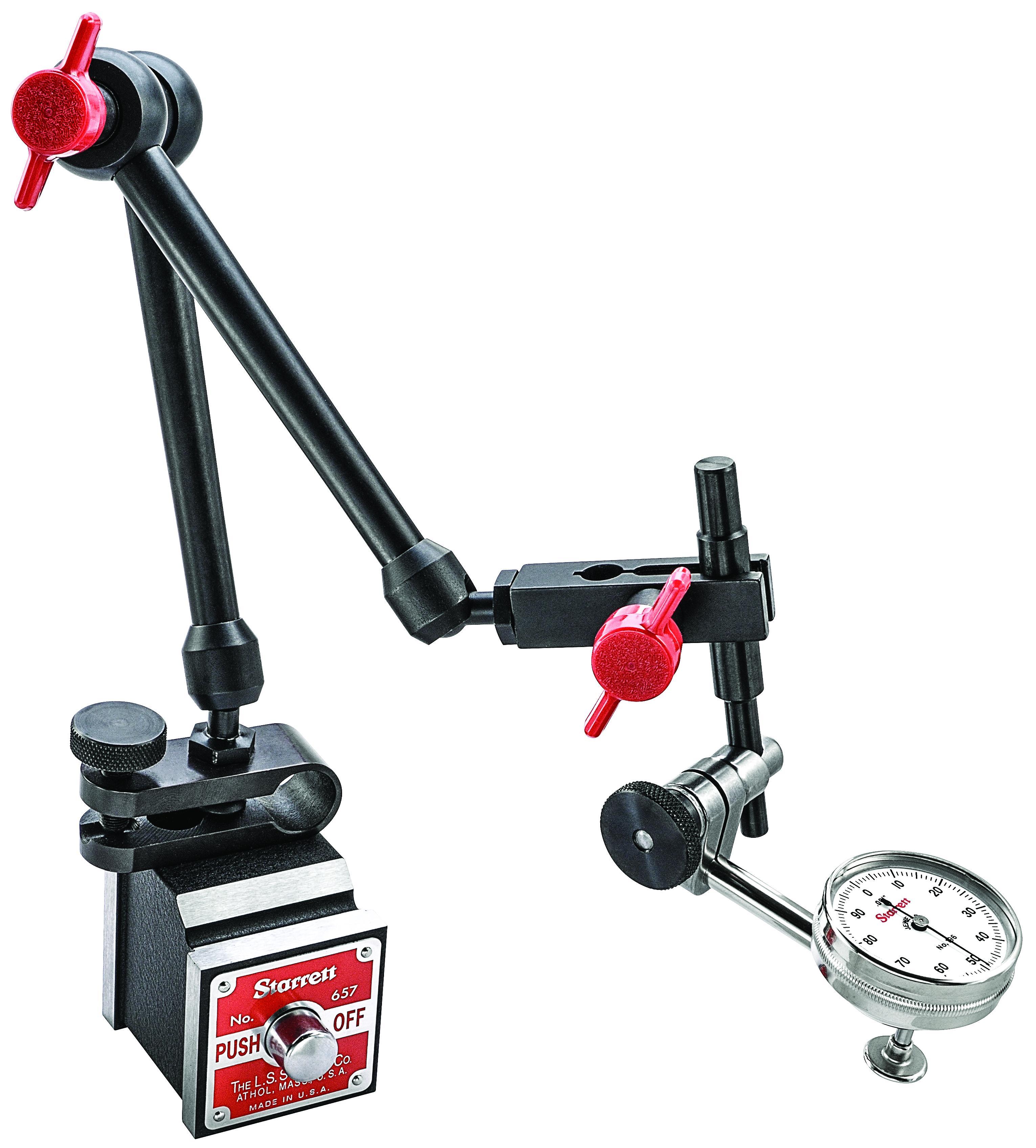

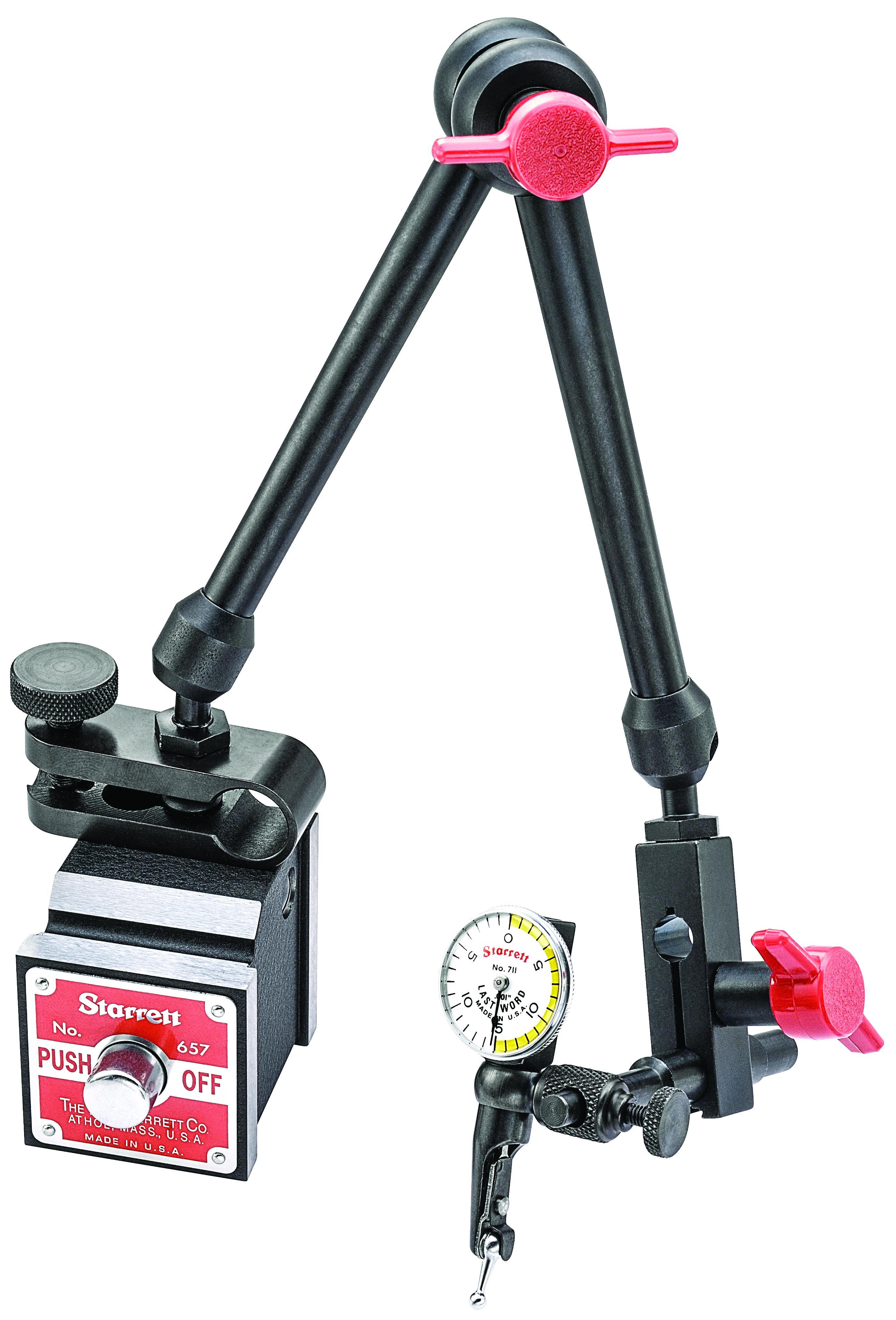

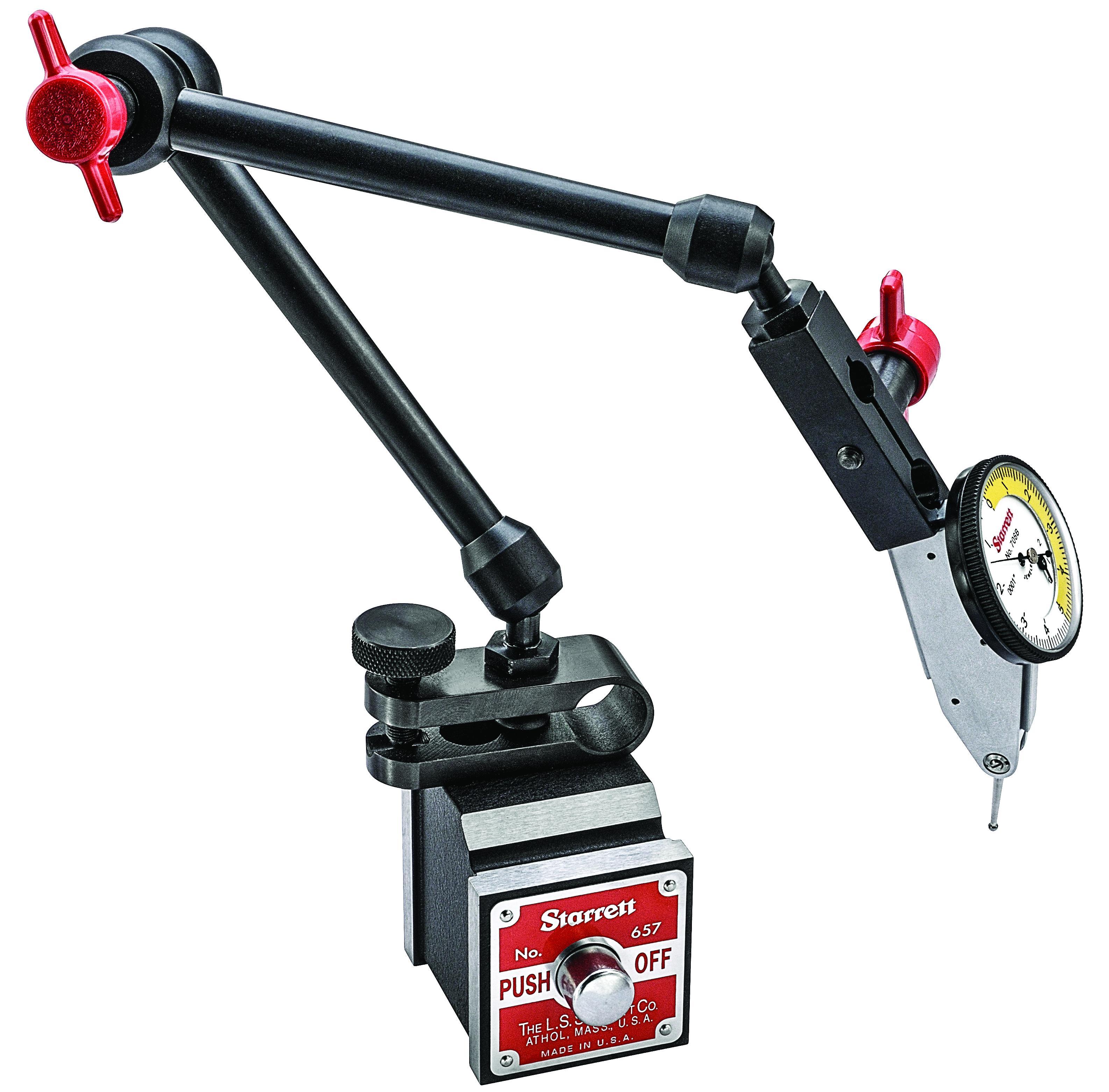

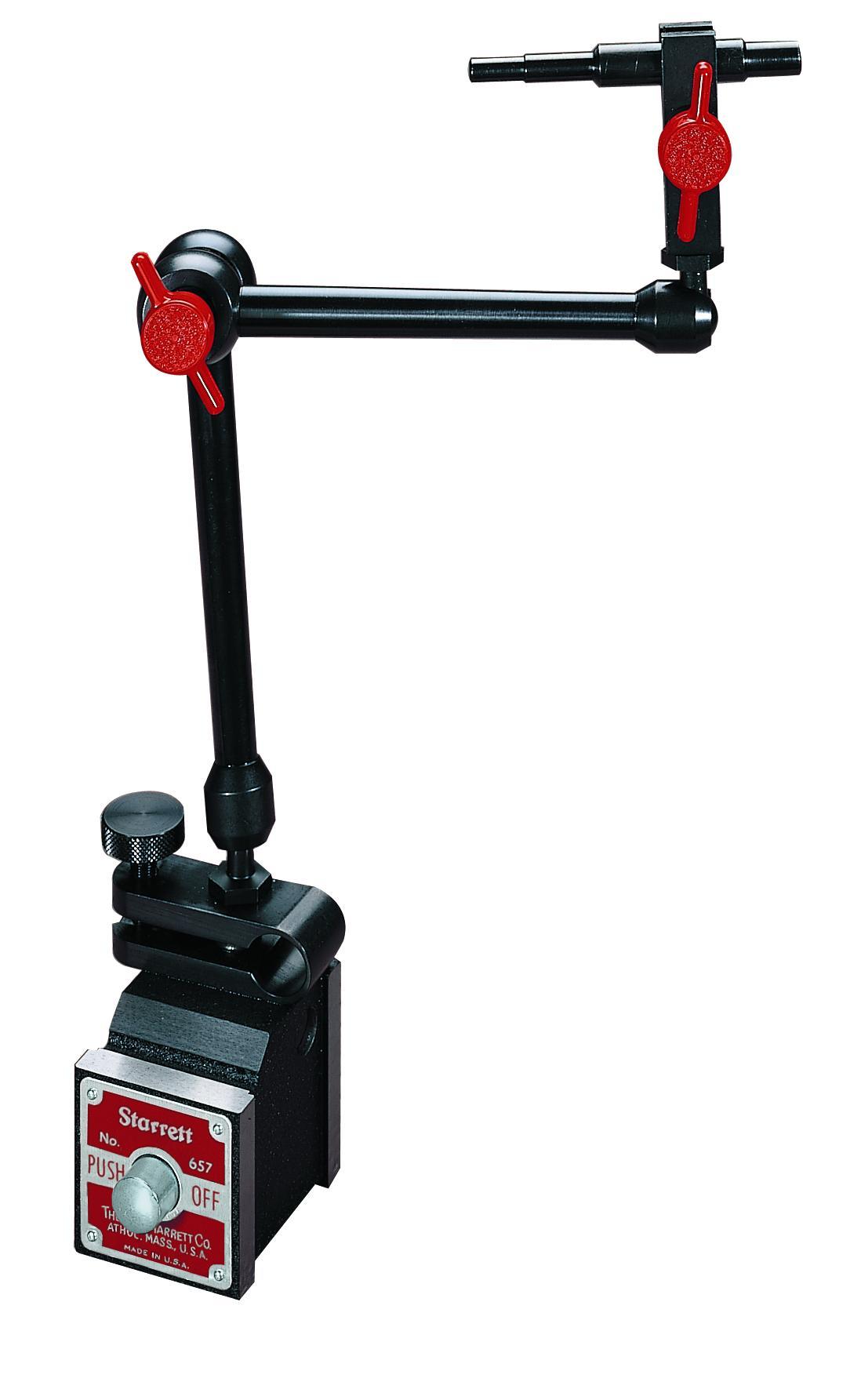

Starrett® 657-1 Universal Magnetic Base Indicator Holder With Triple Jointed Arm and Fine Adjustment, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in OAL, 25/64 in Dia x 6-43/64 in L Rod

Starrett® 657-1 STC 657-1

Starrett® 657-1 Universal Magnetic Base Indicator Holder With Triple Jointed Arm and Fine Adjustment, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in OAL, 25/64 in Dia x 6-43/64 in L Rod

Starrett® 657-1 Universal Magnetic Base Indicator Holder With Triple Jointed Arm and Fine Adjustment, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in OAL, 25/64 in Dia x 6-43/64 in L Rod

  • Brand: Starrett®
  • Mfr# : 657-1
  • Item # : STC 657-1
  • UPC #: 049659644364
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Starrett_58S_Catalog.pdf

FEATURES

  • Works with any indicator with a 3/16 in (4.7mm) shank (such as our 708, 709, 811 and 711 Series)
  • The working area is within a hemisphere having a radius of approximately 12 in (300mm)
  • The very sensitive fi ne-adjustment is located on the magnetic base to eliminate indicator deflection when it is being adjusted

DESCRIPTION

This versatile indicator holder has three pivots available for positioning the indicator where needed. All pivots are controlled by one tightening knob. Universal Indicator Holder with No. 657 with 657P/ 657S/PT17850.

Starrett® Magnetic Base Indicator Holder, Universal, Series: 657, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in Overall Length, 25/64 in Rod Dia, 6-43/64 in Rod Length, 7/16 in Upright Post Dia, 5-23/32 in Upright Post Length

SPECIFICATIONS

Type      :    Universal
Series      :    657
Base Size      :    1-5/8 in L x 1-57/64 in W x 1-29/32 in H
Overall Length      :    10-35/64 in
Rod Diameter      :    25/64 in
Rod Length      :    6-43/64 in
Upright Post Diameter      :    7/16 in
Upright Post Length      :    5-23/32 in

APPLICATION INFO

Standard/Approvals      :    PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of Origin      :    US
