WIDIA GTD 2750381 GUN™ 7301 Spiral Point Tap, Right Hand Cutting, #10-24 Thread, Plug Chamfer, 2 Flutes, Uncoated, HSS
WIDIA GTD 2750381 GUN™ 7301 Spiral Point Tap, Right Hand Cutting, #10-24 Thread, Plug Chamfer, 2 Flutes, Uncoated, HSS
WIDIA GTD 2750381 GUN™ 7301 Spiral Point Tap, Right Hand Cutting, #10-24 Thread, Plug Chamfer, 2 Flutes, Uncoated, HSS
- Brand: WIDIA GTD
- Mfr# : 2750381
- Item # : GRE 12036
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Shoots chips ahead of the cutting action to reduce overloading and clogging in flutes, protecting the workpiece
- Extended life in ferrous materials
DESCRIPTION
WIDIA GTD Spiral Point Tap, Series: GUN™ 7301, Measurement System: Imperial, UNC Thread Standard, #10-24 Thread, Plug Chamfer, 2 Flutes, HSS, Uncoated, Class of Fit: 2B, Right Hand Cutting Direction, 0.88 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Diameter, Steel, Stainless Steel, Non-Ferrous Materials, Aluminum, Cast Iron and Ductile Iron Material Application

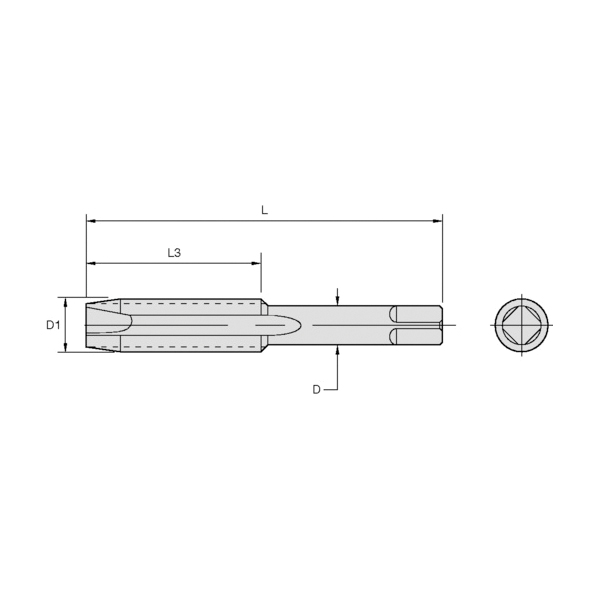

SPECIFICATIONS
| Series | : GUN™ 7301 |
| Measurement System | : Imperial |
| Thread Standard | : UNC |
| Thread Size | : #10-24 |
| Chamfer Type | : Plug |
| Number of Flutes | : 2 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Class of Fit | : 2B |
| Cutting Direction | : Right Hand |
| Thread Length | : 0.88 in |
| Overall Length | : 2.38 in |
| Shank Diameter | : 0.194 in |
| Material Application | : Steel, Stainless Steel, Non-Ferrous Materials, Aluminum, Cast Iron and Ductile Iron |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : For general machining and maintenance applications |
| Country of Origin | : US |
