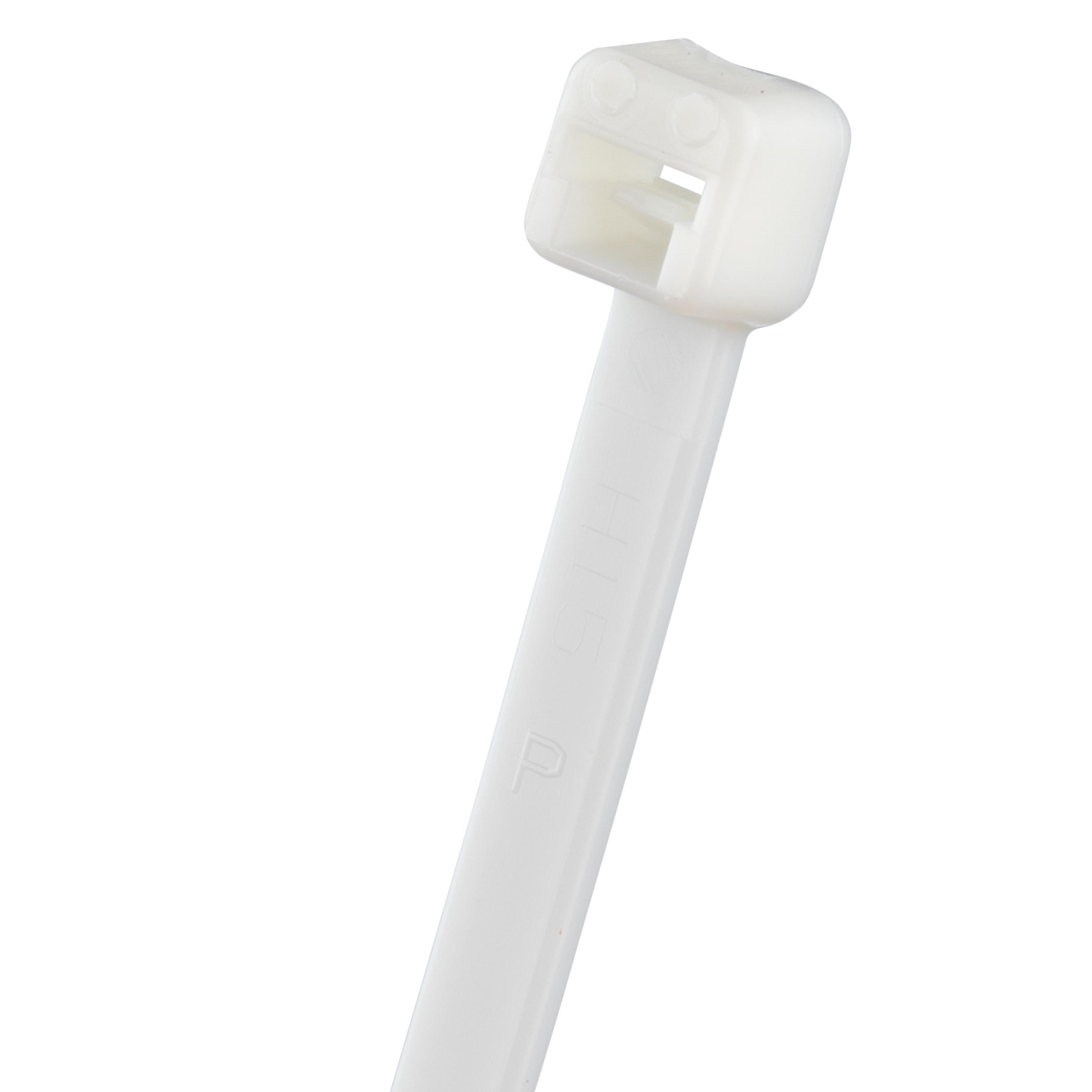

Panduit® Pan-Ty® PLT4S-M10 PLT Standard Cross Section Cable Tie, 14.5 in L x 0.19 in W x 0.052 in THK, Nylon 6.6, White
Panduit® Pan-Ty® PLT4S-M10 PLT Standard Cross Section Cable Tie, 14.5 in L x 0.19 in W x 0.052 in THK, Nylon 6.6, White
Panduit® Pan-Ty® PLT4S-M10 PLT Standard Cross Section Cable Tie, 14.5 in L x 0.19 in W x 0.052 in THK, Nylon 6.6, White
- Brand: Panduit®
- Mfr# : PLT4S-M10
- Item # : PND PLT4S-M10
- UPC #: 074983566150
- Min. Order Qty: :
- Qty. Interval: :
Full Engineering Drawing
VIDEO LINK
FEATURES
- Versatile cable ties can be used in countless applications
- One-piece construction for consistent performance and reliability
- Lowest threading force of any one-piece cable tie in the industry
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
DESCRIPTION
Panduit® Pan-Ty®, PLT4S-M10, Cable Tie, Standard Cross Section, Series: PLT, 14.5 in Length, 0.19 in Width, 0.052 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Locking, 222 N Tensile Strength, -76 to 185 deg F, Nylon 6.6, White
SPECIFICATIONS
| Type | : Standard Cross Section |
| Series | : PLT |
| Length | : 14.5 in |
| Width | : 0.19 in |
| Thickness | : 0.052 in |
| Bundle Diameter | : 4 in |
| Lock Mechanism | : Locking |
| Tensile Strength | : 222 N |
| Temperature Rating | : -76 to 185 deg F |
| Material | : Nylon 6.6 |
| Color | : White |
APPLICATION INFO
| Standard/Approvals | : ARRA Compliant|Buy American Act Compliant|CE Marked|CSA Certified|cULus Listed|RoHS Compliant|UL 62275 File No. E56854 |
| Application | : General Purpose, High Temperature and Indoor Applications |
| Country of Origin | : SG |
