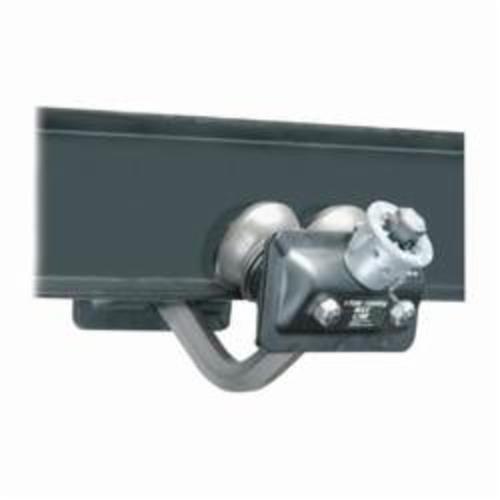

CM® 3224 632 Plain Manual Trolley, 2000 lb Load, 2-5/8 to 5-1/16 in, 4 to 12 in, 7 in, 2-3/4 in
CM® 3224 632 Plain Manual Trolley, 2000 lb Load, 2-5/8 to 5-1/16 in, 4 to 12 in, 7 in, 2-3/4 in
- Brand: CM®
- Mfr# : 3224
- Item # : CLM 3224
- UPC #: 043927632244
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Negotiates radius curves as tight as 7 to 10 in
- Unique double row, ball bearing wheel design for greater wear capacity
- Larger V-bars available for wider flange adjustment
- Bearings prepacked with lifetime lubricant
- Exclusive Dial-Fit collar quickly adapts trolley to wide range of beams and patented rails
- Dust covers shield and protect bearings
- Trolleys available for larger beams, rails or tracks
- Cast iron trolley guards available
- Made of highest quality rolled steel
DESCRIPTION
The CM series 632 close radius trolley features a shorter and lighter design than competitive trolleys, with all the strength. It has the ability to handle tight curves and maintain low headroom capabilities.
CM® Manual Trolley, Plain, Series: 632, 2000 lb, Fits Beam Flange Width: 2-5/8 to 5-1/16 in, Fits Beam Height: 4 to 12 in, 7 in Minimum Radius Curve, 2-3/4 in Wheel Tread Dia, Steel Wheel, 1-5/8 in Headroom To Bail
SPECIFICATIONS
| Type | : Plain |
| Series | : 632 |
| Load Capacity | : 2000 lb |
| Fits Beam Flange Width | : 2-5/8 to 5-1/16 in |
| Fits Beam Height | : 4 to 12 in |
| Minimum Radius Curve | : 7 in |
| Wheel Tread Diameter | : 2-3/4 in |
| Wheel Material | : Steel |
| Headroom to Bail | : 1-5/8 in |
APPLICATION INFO
| Application | : For low headroom applications |
| Country of Origin | : US |
