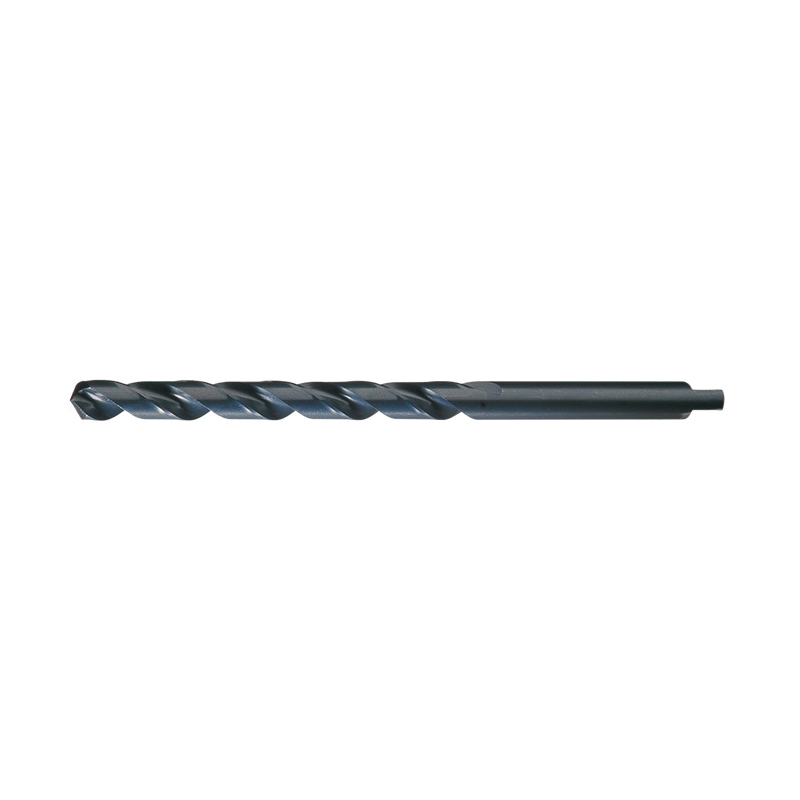

Chicago-Latrobe® 49532 255AN General Purpose Taper Length Drill, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 7-3/4 in OAL, HSS, Oxide Treated

Chicago-Latrobe® 49532 GRE 49532

Chicago-Latrobe® 49532 255AN General Purpose Taper Length Drill, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 7-3/4 in OAL, HSS, Oxide Treated

Chicago-Latrobe® 49532 255AN General Purpose Taper Length Drill, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 7-3/4 in OAL, HSS, Oxide Treated

  • Brand: Chicago-Latrobe®
  • Mfr# : 49532
  • Item # : GRE 49532
  • UPC #: 662355495322
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cleveland_C14563_Catalog.pdf
  • pdf SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cleveland_C14563_SDS.pdf

FEATURES

  • Taper length for added reach in deeper holes
  • 118 conventional point for rapid penetration

DESCRIPTION

The 255AN is an automotive tanged shank drill made from premium high-speed steel with a black oxide finish, featuring a 118° point and taper length for deep drilling, ideal for use with positive split sleeve drivers.

Chicago-Latrobe® Taper Length Drill, General Purpose, Series: 255AN, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 7-3/4 in Overall Length, 3-7/16 in Cutting Depth, 2 Flutes, Spiral Flute, 3-7/16 in Flute Length, 1/2 in Shank, Tanged Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Oxide Treated, Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron

SPECIFICATIONS

Type      :    General Purpose
Series      :    255AN
Drill Size - Fraction      :    1/2 in
Drill Size - Decimal Inch      :    0.5 in
Overall Length      :    7-3/4 in
Cutting Depth      :    3-7/16 in
Number of Flutes      :    2
Flute Type      :    Spiral
Flute Length      :    3-7/16 in
Shank Size      :    1/2 in
Shank Type      :    Tanged
Point Angle      :    118 deg
Point Type      :    Radial
Cutting Direction      :    Right Hand
Cutting Edge Material      :    HSS
Material      :    HSS
Finish      :    Oxide Treated
Applicable Materials      :    Alloy Steel, Carbon Steel and Cast Iron

APPLICATION INFO

Standard/Approvals      :    ASME/USCTI Standard
Application      :    Automotive Applications
Country of Origin      :    US
