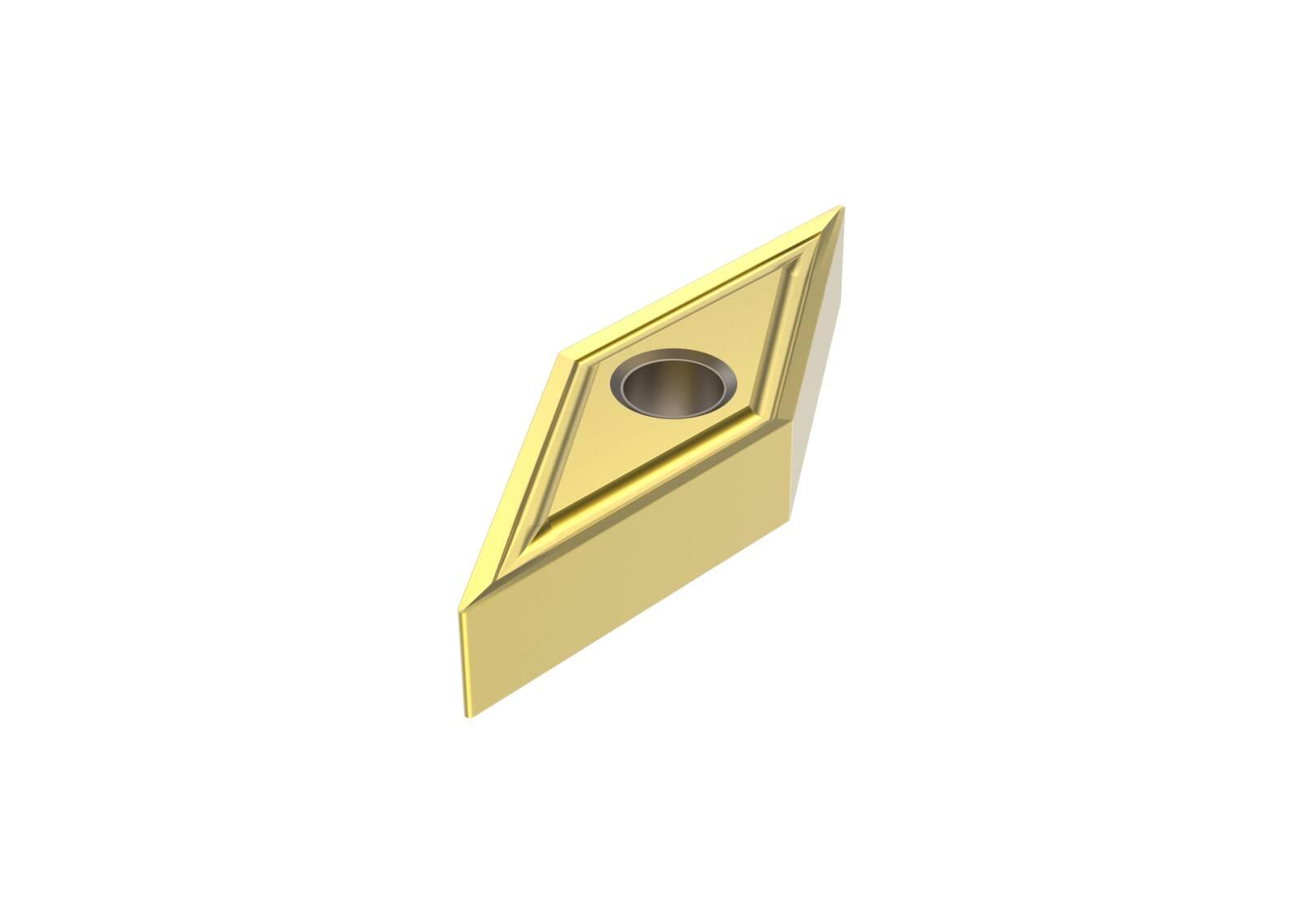

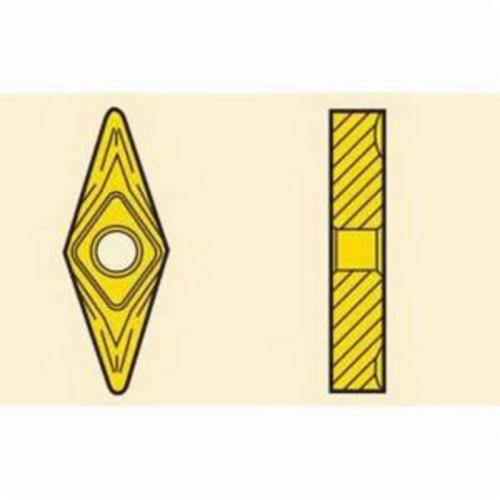

The Turning insert VNGG160402-M1 TS2000 features a negative type design with a clearance angle major of 0 degrees. It has four cutting edges and a corner radius of 0.2 mm. With a cutting edge effective length of 15.8 mm, the insert is made from a carbide PVD grade TS2000. The insert hand is neutral. It is primarily applicable for machining superalloys and titanium as well as hard materials, with partial suitability for steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

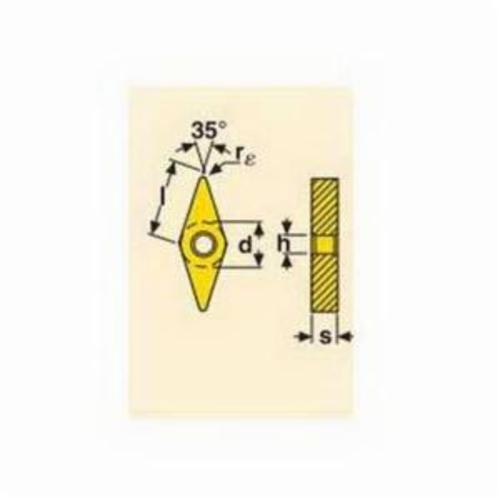

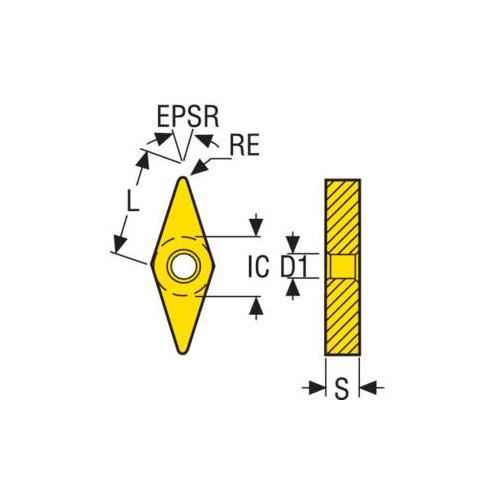

Seco Turning Insert, VNGG Insert, 160402 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Negative Rake, M1 Chipbreaker, 0.2 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TS2000, ANSI Code: VNGP330.5-M1 TS2000, ISO Code: VNGG160402-M1 TS2000, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiAlN/TiN, Material Grade: M, S, For Use On: Stainless Steel, Super Alloys and Titanium
