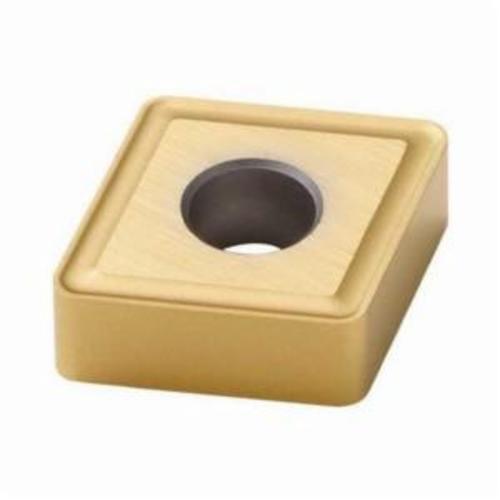

The Turning insert CNMG120408-MR4 TS2500 features a clearance angle major of 0 degrees and a negative type geometry. It is made from a carbide PVD grade TS2500. The insert has four cutting edges with a corner radius of 0.8 mm and a cutting edge effective length of 12.1 mm. The insert hand is neutral. This insert is designed primarily for machining superalloys and titanium, with partial applicability to stainless steel and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

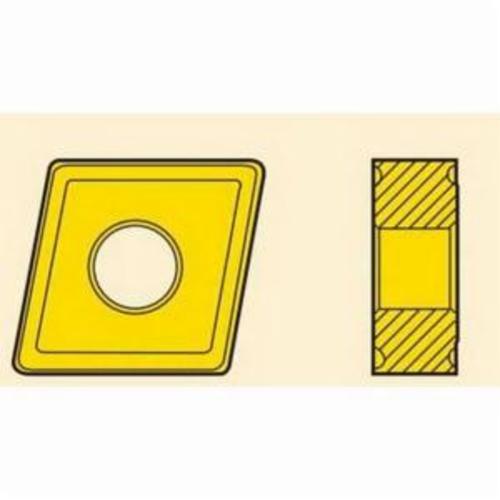

Seco Turning Insert, CNMG Insert, 120408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MR4 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2500, ANSI Code: CNMG432-MR4 TS2500, ISO Code: CNMG120408-MR4 TS2500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium
