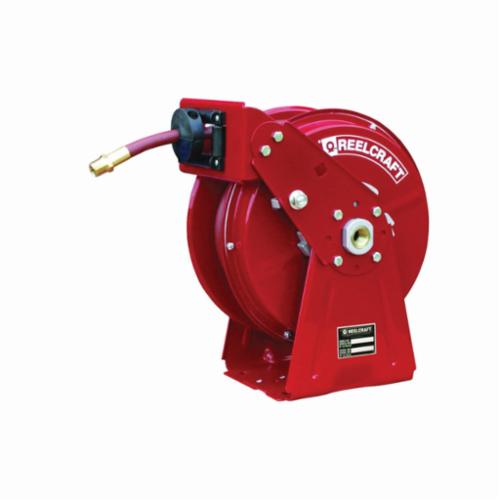

Reelcraft® DP5450 OLP DP5000 Compact Dual Pedestal Hose Reel, 1/4 in ID x 0.475 in OD x 50 ft L Hose, 300 psi Pressure, Domestic

Reelcraft® DP5450 OLP REE DP5450OLP

Reelcraft® DP5450 OLP DP5000 Compact Dual Pedestal Hose Reel, 1/4 in ID x 0.475 in OD x 50 ft L Hose, 300 psi Pressure, Domestic

Reelcraft® DP5450 OLP DP5000 Compact Dual Pedestal Hose Reel, 1/4 in ID x 0.475 in OD x 50 ft L Hose, 300 psi Pressure, Domestic

  • Brand: Reelcraft®
  • Mfr# : DP5450 OLP
  • Item # : REE DP5450OLP
  • UPC #: 699567007135
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Reinforced steel - steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts
  • Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • The swivel rides on a through shaft offering unparalled support and strength
  • Long life drive spring - declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
  • High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
  • 1/2 in female NPTF inlet
  • 1/4 in male NPTF outlet
  • 150 deg F maximum temperature rating

DESCRIPTION

Reelcraft's compact dual pedestal series DP features an innovative, no-welded, interlocking base. Independent testing to military standards has proven these reels stand up to heavy vibration and won't vibrate apart, which makes them especially strong and ideal for truck-mounted applications. Individually powder coated components offer the maximum protection from premature corrosion.

Reelcraft® Hose Reel, Compact Dual Pedestal, Series: DP5000, 1/4 in ID x 0.475 in OD x 50 ft L Hose, 300 psi, Spring Drive, Truck Mount, Nickel Plated Steel Swivel, Aflas® Seal, 14-3/8 in L x 8 in W x 16-3/8 in H, Reinforced Steel, Powder Coated, Red, Domestic

SPECIFICATIONS

Type      :    Compact Dual Pedestal
Series      :    DP5000
Hose Capacity      :    1/4 in ID x 0.475 in OD x 50 ft L
Pressure Rating      :    300 psi
Drive Type      :    Spring
Mounting Type      :    Truck
Swivel Material      :    Nickel Plated Steel
Seal Type      :    Aflas®
Dimensions      :    14-3/8 in L x 8 in W x 16-3/8 in H
Material      :    Reinforced Steel
Finish      :    Powder Coated
Color      :    Red
Domestic/Import      :    Domestic

APPLICATION INFO

Standard/Approvals      :    PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Application      :    Air/Water
Country of Origin      :    US
