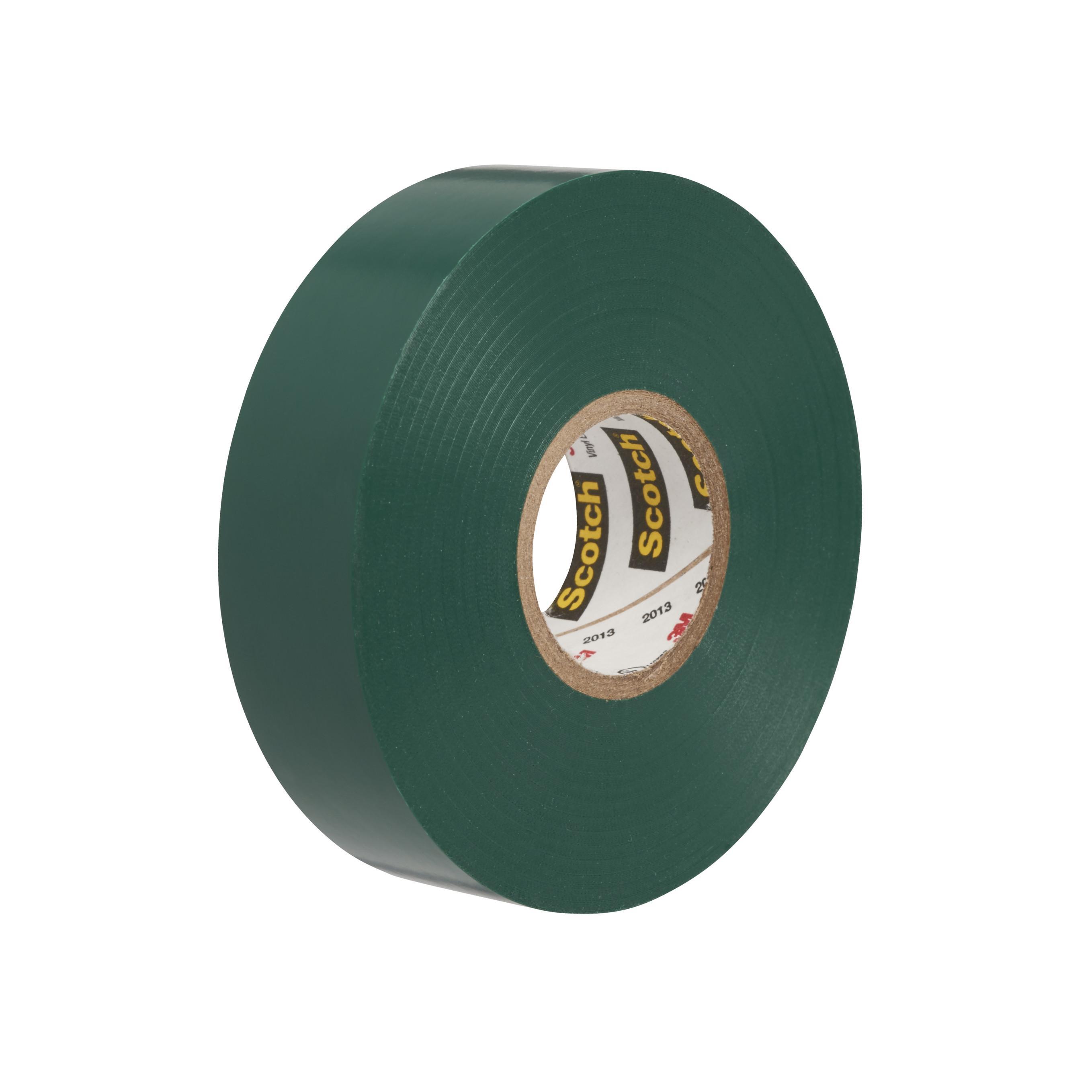

Scotch® 7000132639 35 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green

Scotch® 7000132639 35 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green

Scotch® 7000132639 35 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green


  • Brand: Scotch®
  • Mfr# : 7000132639
  • Item # : MMM 35-1/2-GREEN
  • UPC #: 054007102656
  • Min. Order Qty: :
  • Qty. Interval: :

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000132637_Specification_Sheet.pdf

FEATURES

  • MULTI-PURPOSE - Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • ENHANCED DEFENSE - Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • TEMPERATURE-RESISTANT - Performs within temperatures from 14 F to 221 F (-10 C to 105 C)
  • HIGHLY COMPATIBLE - Works with synthetic cable insulations, jackets, and splicing compounds
  • PRODUCT OPTIONS - Available in ten fade-resistant colors, including blue, brown, gray, green, orange, pink, red, violet, white (white offers full UV-resistance), and yellow

DESCRIPTION

Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.

Scotch®, 7000132639, Tape, Electrical Maintenance, Series: 35, 7 yd Length, 0.5 in Width, 7 mil Thickness, Vinyl, Green, Rubber Adhesive, PVC Backing, 6 V, 600 V Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

SPECIFICATIONS

Type      :    Electrical Maintenance
Series      :    35
Length      :    7 yd
Width      :    0.5 in
Thickness      :    7 mil
Material Type      :    Vinyl
Color      :    Green
Adhesive Material      :    Rubber
Backing Material      :    PVC
Adhesion Strength      :    20 in-oz
Voltage Rating      :    6 V
Dielectric Strength      :    600 V
Tensile Strength      :    17 in-lb
Maximum Operating Temperature      :    221 deg F
Minimum Operating Temperature      :    32 deg F
Specifications Met      :    CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

APPLICATION INFO

Standard/Approvals      :    UL Listed|VDE/CSA Certified|RoHS 2015/863/EU Compliant
Application      :    For Electrical Maintenance
Country of Origin      :    US
