3M™ 7100021008 MVU18BCX Butt Connector, 18 AWG Conductor, 1 in L, Copper Alloy, Red
3M™ 7100021008 MVU18BCX Butt Connector, 18 AWG Conductor, 1 in L, Copper Alloy, Red
- Brand: 3M™
- Mfr# : 7100021008
- Item # : MMM 58817
- UPC #: 051128588178
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES

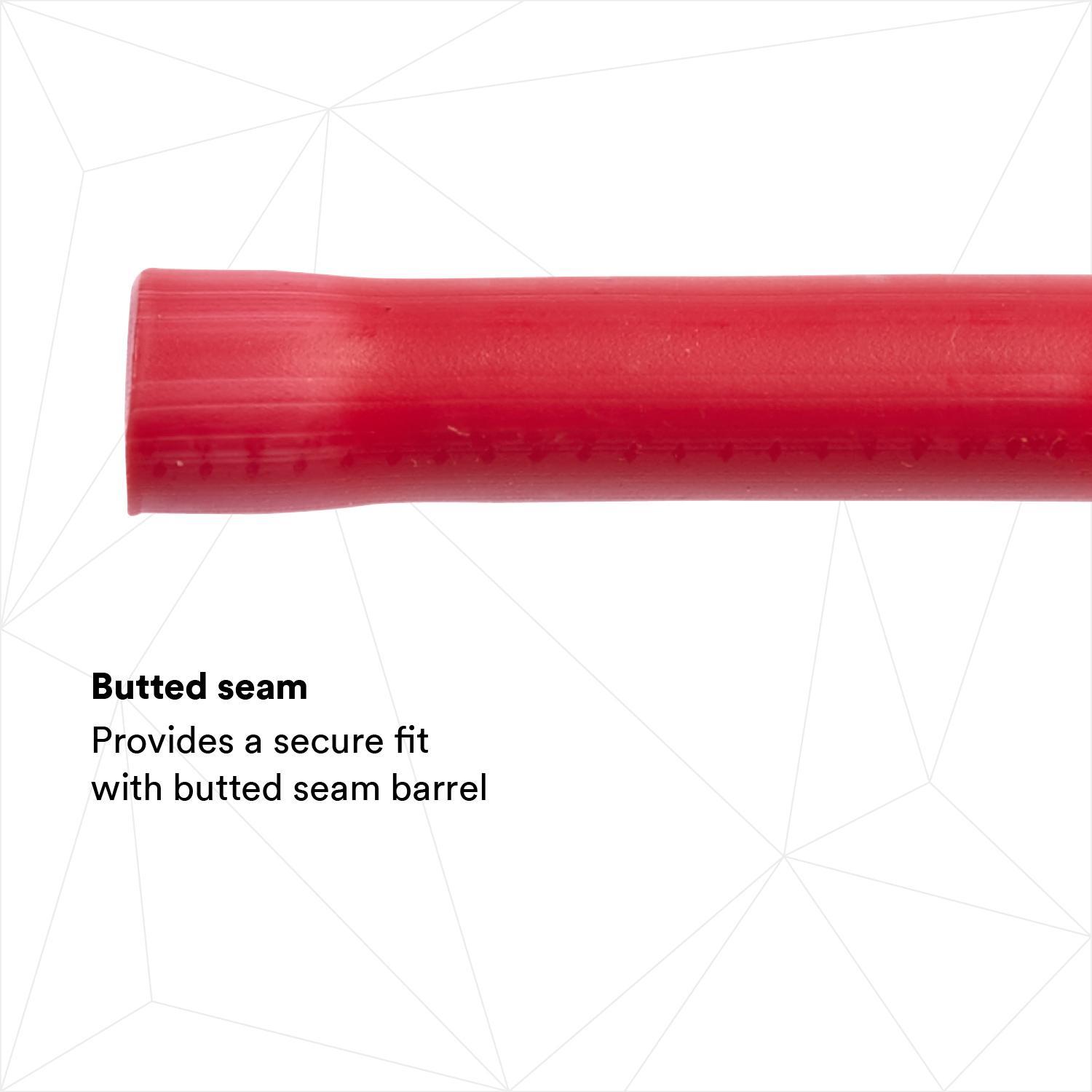

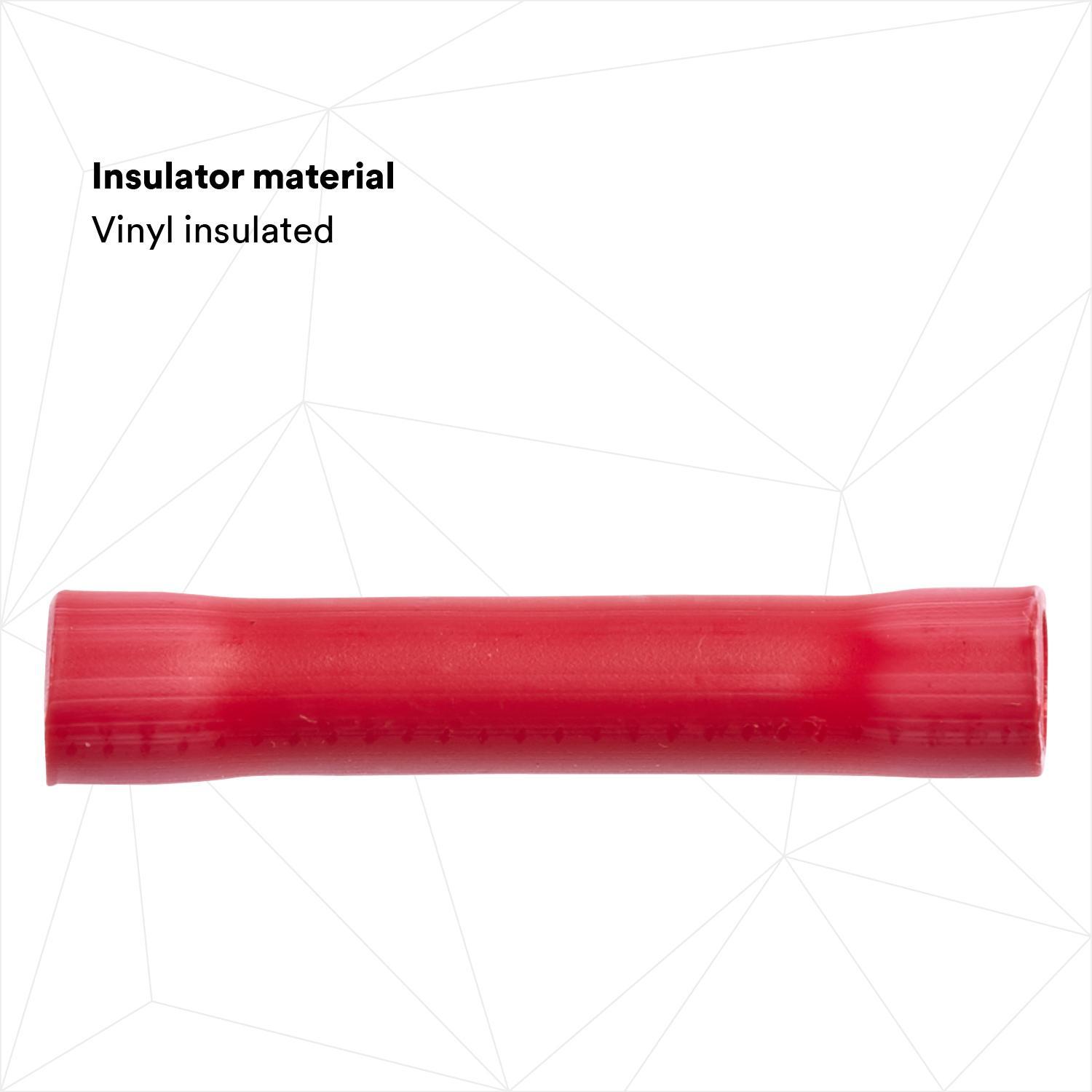

- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Built-in wire stop for correct positioning
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
DESCRIPTION

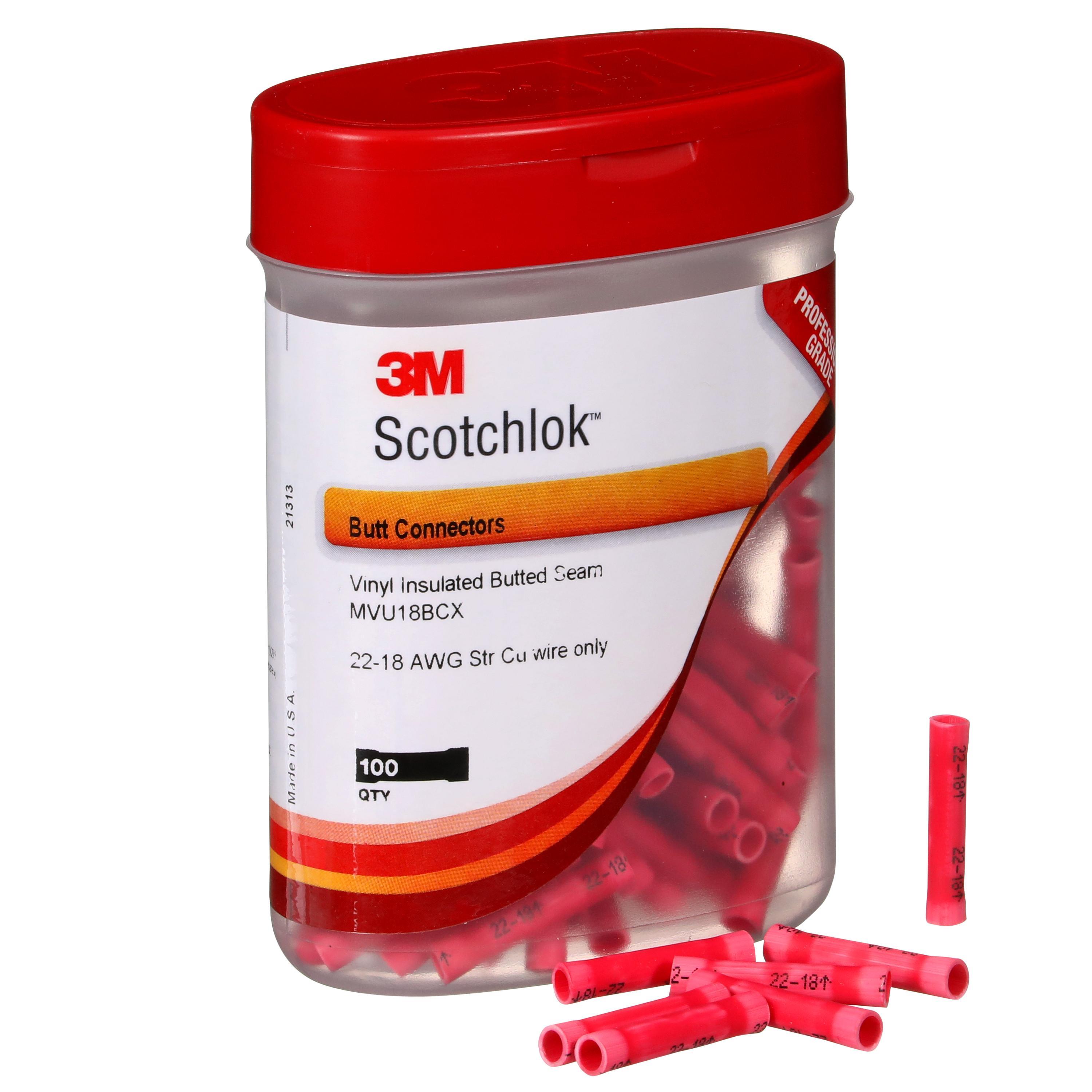

3M™ Scotchlok™ Butt Connector MVU18BCX with built-in wire stop for correct positioning offers easy insertion of wires. This vinyl-insulated, butted-seam barrel provides a secure fit and reliable performance. It supports a wire range of 22-18 AWG. This connector has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the cable into position while providing electrical contacts and mechanical stress relief at the point of insulation. The flared, vinyl-sleeve insulation provides easy crimping, the electrolytic copper construction provides good conductivity, and tin plating offers corrosion resistance. This connector can withstand a temperature range of -40 to 221 degrees F (-40 to 105 degrees C). The connector is UL Listed and CSA Certified. 3M™ Scotchlok™ Butt Connector MVU18BCX is perfect for your wire positioning and insulation needs.
3M™, 7100021008, Butt Connector, Series: MVU18BCX, 18 AWG Conductor, 1 in Length, Copper Alloy, Red
SPECIFICATIONS
| Type | : Standard |
| Series | : MVU18BCX |
| Conductor Size | : 18 AWG |
| Length | : 1 in |
| Barrel Type | : Butted |
| Barrel Size | : 0.07 in ID x 0.25 in L |
| Voltage Rating | : 600 V AC |
| Temperature Rating | : -40 to 221 deg F |
| Material | : Copper Alloy |
| Color | : Red |
| Dimensions | : 0.145 in OD |
APPLICATION INFO
| Standard/Approvals | : UL Listed|CSA CERTIFIED|RoHS 2011/65/EU Compliant |
| Application | : Perfect for your wire positioning and insulation needs |
| Country of Origin | : US |
