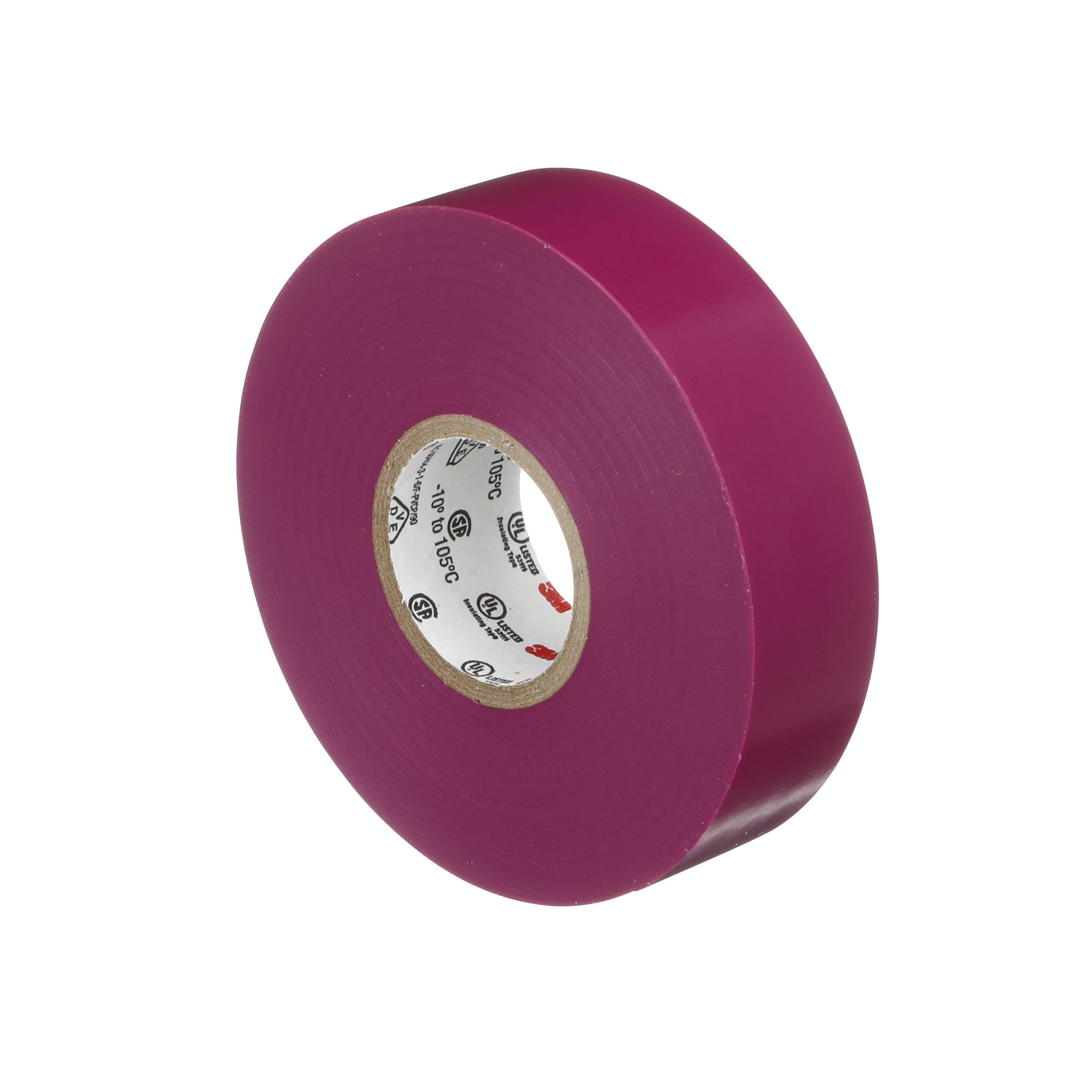

Scotch® 7000058437 Electrical Maintenance Tape, 2 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Violet
Scotch® 7000058437 Electrical Maintenance Tape, 2 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Violet
Scotch® 7000058437 Electrical Maintenance Tape, 2 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Violet
- Brand: Scotch®
- Mfr# : 7000058437
- Item # : MMM 35-3/4 VIOLET
- UPC #: 054007112716
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection

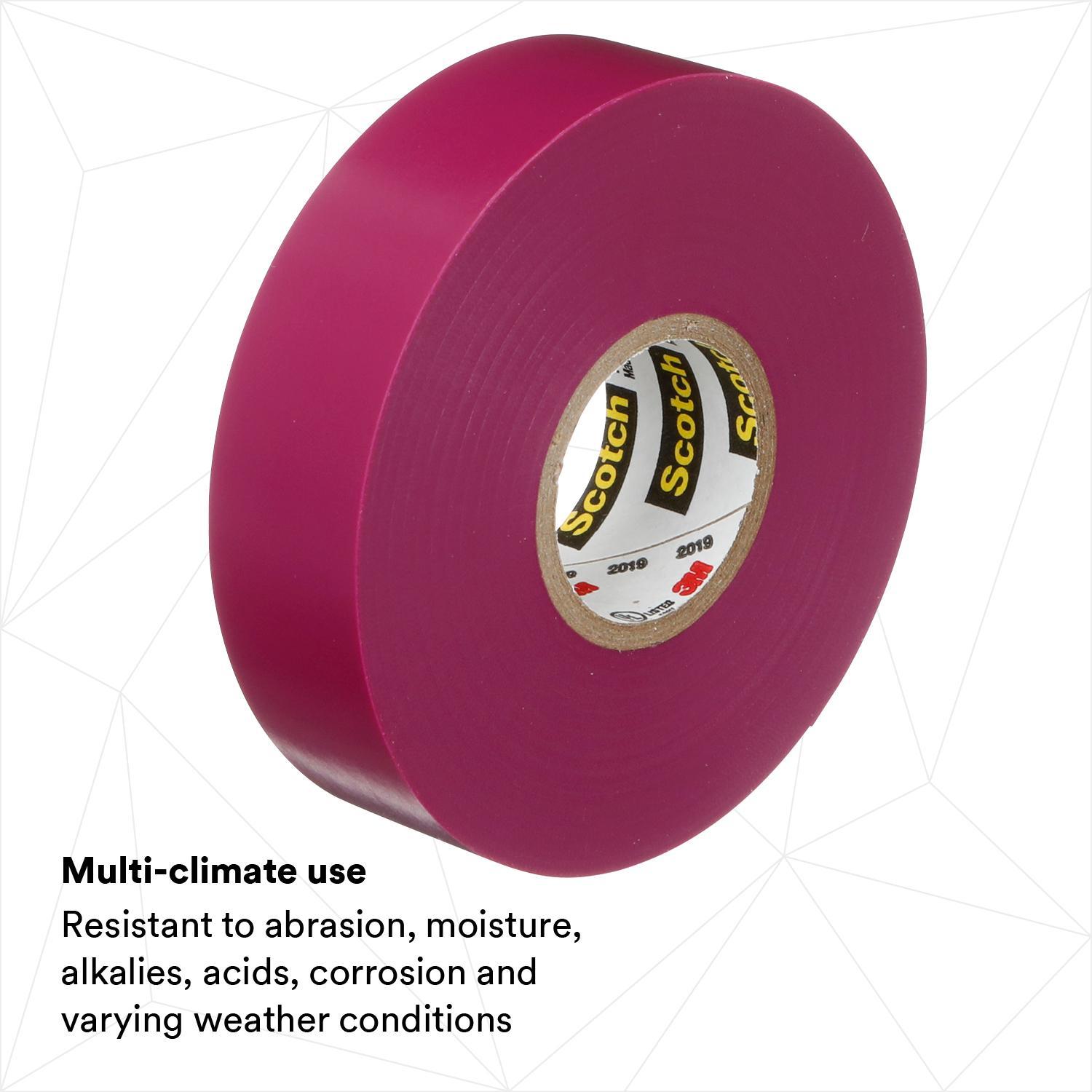

- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
- Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
- Withstands a temperature range of 14 to 221 deg F (-10 to 105 deg C)
DESCRIPTION
Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​ UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.
Scotch®, 7000058437, Tape, Electrical Maintenance, 2 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Violet, Rubber Adhesive, PVC Backing, 6 V, 600 V Dielectric Strength, 30 N/10 mm Tensile Strength, 221 deg F Maximum Operating, 14 deg F Minimum Operating, Specifications Met: CSA Certified/IEC 6454-3-1-6/F-PVC P/9/RoHS 211/65/EU/UL Listed/VDE Marks License
SPECIFICATIONS
| Type | : Electrical Maintenance |
| Length | : 2 yd |
| Width | : 0.75 in |
| Thickness | : 7 mil |
| Material Type | : Vinyl |
| Color | : Violet |
| Adhesive Material | : Rubber |
| Backing Material | : PVC |
| Adhesion Strength | : 20 in-oz |
| Voltage Rating | : 6 V |
| Dielectric Strength | : 600 V |
| Tensile Strength | : 30 N/10 mm |
| Maximum Operating Temperature | : 221 deg F |
| Minimum Operating Temperature | : 14 deg F |
| Specifications Met | : CSA Certified/IEC 6454-3-1-6/F-PVC P/9/RoHS 211/65/EU/UL Listed/VDE Marks License |
APPLICATION INFO
| Standard/Approvals | : CSA/VDE Certified|UL 510 Listed|Prop 65 Compliant|IEC 60454-3-1-6|RoHS Compliant|NFPA 70 |
| Application | : For Electrical Maintenance |
| Country of Origin | : US |
