Cleveland® C61026 CEM-SE-2 Center Cutting General Purpose Regular Length Single End Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C61026 GRE C61026

Cleveland® C61026 CEM-SE-2 Center Cutting General Purpose Regular Length Single End Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C61026 CEM-SE-2 Center Cutting General Purpose Regular Length Single End Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C61026
  • Item # : GRE C61026
  • UPC #: 697334610267
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cleveland_C60001_Specification_Sheet.pdf

FEATURES

  • 10% Cobalt submicron grain carbide substrate
  • 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
  • Use in general milling applications in medium to low carbon steels, cast iron, non-ferrous light metals and plastics
  • 2-Flute end mills are generally used for plunging, slotting and heavy peripheral cuts
  • -0.002 in cutting diameter tolerance
  • -0.0005 in (h6) shank diameter tolerance
  • Applicable on steel, cast iron, special alloys and non-ferrous materials

DESCRIPTION

Cleveland® End Mill, Center Cutting General Purpose Regular Length Single End Square End, Series: CEM-SE-2, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, Solid Carbide, Uncoated

SPECIFICATIONS

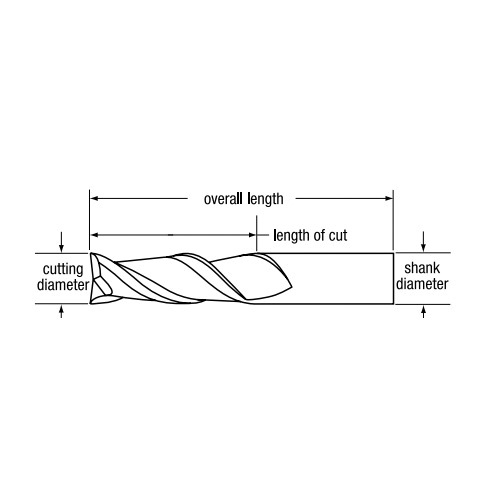

Type      :    Center Cutting General Purpose Regular Length Single End Square End
Series      :    CEM-SE-2
Cutter Diameter      :    1/4 in
Overall Length      :    2-1/2 in
Length of Cut      :    3/4 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    1/4 in
Cutting Direction      :    Right Hand
Helix Angle      :    35 deg
Shank Type      :    Straight
Material      :    Solid Carbide
Finish      :    Uncoated

APPLICATION INFO

Application      :    Drilling, Plunging and Slotting
