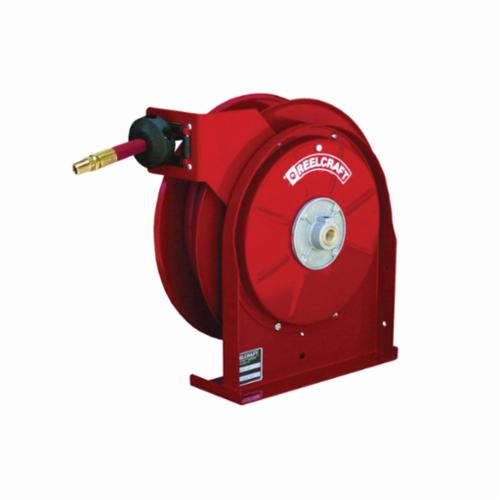

Reelcraft® B5635 OLP 5000 Full Flow Swivel Premium Duty Hose Reel, 3/8 in ID x 0.6 in OD x 35 ft L Hose, 300 psi Pressure, Domestic

Reelcraft® B5635 OLP REE B5635-OLP

Reelcraft® B5635 OLP 5000 Full Flow Swivel Premium Duty Hose Reel, 3/8 in ID x 0.6 in OD x 35 ft L Hose, 300 psi Pressure, Domestic

Reelcraft® B5635 OLP 5000 Full Flow Swivel Premium Duty Hose Reel, 3/8 in ID x 0.6 in OD x 35 ft L Hose, 300 psi Pressure, Domestic

  • Brand: Reelcraft®
  • Mfr# : B5635 OLP
  • Item # : REE B5635-OLP
  • UPC #: 699567009214
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
  • All steel components are powder coated for maximum corrosion resistance
  • Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Ratchet latch - the latch is the traditional style with torsion spring
  • 3/8 in female NPTF inlet
  • 1/4 in male NPTF outlet
  • 150 deg F maximum temperature rating

DESCRIPTION

Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.

Reelcraft® Hose Reel, Full Flow Swivel Premium Duty, Series: 5000, 3/8 in ID x 0.6 in OD x 35 ft L Hose, 300 psi, Spring Drive, Copper Swivel, Nitrile Seal, 13-1/2 in L x 6 in W x 14-1/2 in H, Reinforced Steel, Powder Coated, Red, Domestic

SPECIFICATIONS

Type      :    Full Flow Swivel Premium Duty
Series      :    5000
Hose Capacity      :    3/8 in ID x 0.6 in OD x 35 ft L
Pressure Rating      :    300 psi
Drive Type      :    Spring
Swivel Material      :    Copper
Seal Type      :    Nitrile
Dimensions      :    13-1/2 in L x 6 in W x 14-1/2 in H
Material      :    Reinforced Steel
Finish      :    Powder Coated
Color      :    Red
Domestic/Import      :    Domestic

APPLICATION INFO

Standard/Approvals      :    PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Application      :    Air/Water
Country of Origin      :    US
