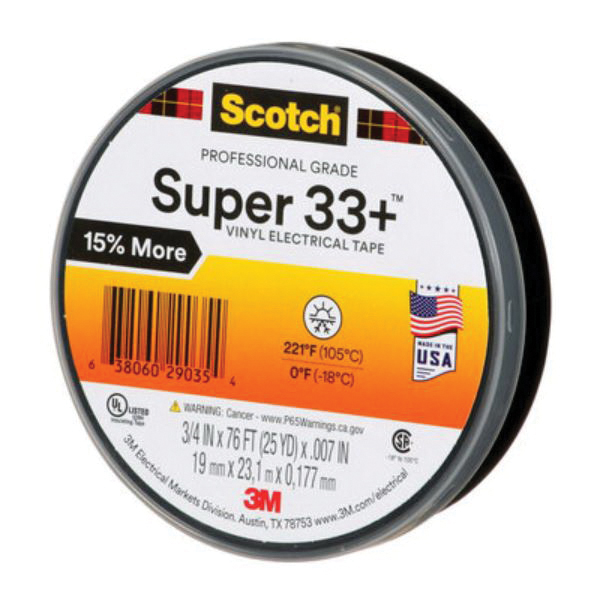

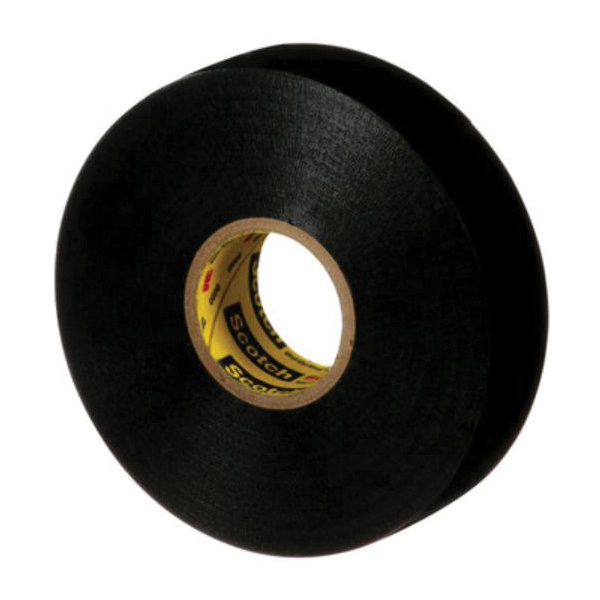

Scotch® 638060-29035 Super 33+™ Black Electrical Tape, 76 ft L x 3/4 in W, 7 mil THK, Super 33+™ Vinyl, Rubber Adhesive, PVC Backing, Black
Scotch® 638060-29035 Super 33+™ Black Electrical Tape, 76 ft L x 3/4 in W, 7 mil THK, Super 33+™ Vinyl, Rubber Adhesive, PVC Backing, Black
Scotch® 638060-29035 Super 33+™ Black Electrical Tape, 76 ft L x 3/4 in W, 7 mil THK, Super 33+™ Vinyl, Rubber Adhesive, PVC Backing, Black
- Brand: Scotch®
- Mfr# : 638060-29035
- Item # : MMM 33-3/4X66
- UPC #: 638060290354
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Resists UV rays, abrasion, moisture, alkalis, solvents and acids
- Flame retardant and inhibits the corrosion of electrical conductors
- Made of durable PVC
- The combination of the pressure sensitive, rubber resin adhesive and the PVC backing offers electrical and mechanical protection
- Compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 0 to 221 deg F (-18 to 105 deg C)
DESCRIPTION
The combination of the pressure sensitive, rubber resin adhesive and the PVC backing offers electrical and mechanical protection.
Scotch®, 638060-29035, Black Electrical Tape, Series: Super 33+™, 76 ft Length, 3/4 in Width, 7 mil Thickness, Super 33+™ Vinyl, Black, 1 in Diameter Core, Rubber Adhesive, PVC Backing, 28 in-oz Steel, 28 in-oz Backing at 73 deg F Adhesion Strength, 600 V, 1150 V/mil Dielectric Strength, 15 in-lb Tensile Strength, 221 deg F Maximum Operating, 0 deg F Minimum Operating, Specifications Met: CSA C22.2 File No. 197, File No. 048769 Class 9052-02, UL 510, Category OANZ, File No. E129200, VDE Marks License No. 130462 for Type 7: IEC 60454-3-1-7/F-PVC P/90
SPECIFICATIONS
| Series | : Super 33+™ |
| Length | : 76 ft |
| Width | : 3/4 in |
| Thickness | : 7 mil |
| Material Type | : Super 33+™ Vinyl |
| Color | : Black |
| Core Diameter | : 1 in |
| Adhesive Material | : Rubber |
| Backing Material | : PVC |
| Adhesion Strength | : 28 in-oz Steel, 28 in-oz Backing at 73 deg F |
| Voltage Rating | : 600 V |
| Dielectric Strength | : 1150 V/mil |
| Tensile Strength | : 15 in-lb |
| Maximum Operating Temperature | : 221 deg F |
| Minimum Operating Temperature | : 0 deg F |
| Specifications Met | : CSA C22.2 File No. 197, File No. 048769 Class 9052-02, UL 510, Category OANZ, File No. E129200, VDE Marks License No. 130462 for Type 7: IEC 60454-3-1-7/F-PVC P/90 |
APPLICATION INFO
| Standard/Approvals | : 3M File No. E256906 Meets A-A-55809|ASTMD 1000/D1000|CSA C22.2 No. 197-M1983 File LR 48769|OANZ2|RoHS 2011/65/EU|UL 510 File No. E129200 |
| Application | : Above and Below Grade, Indoor and Outdoor, Harnessing Cable, Low and High Voltage Applications |
| Country of Origin | : US |
