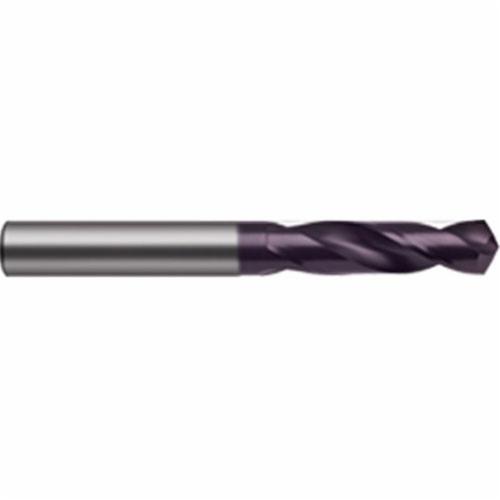

Guhring 9024630093400 2463 Type N General Purpose Stub Length Drill, U Drill - Letter, 0.368 in Drill - Decimal Inch, DK120 Carbide, FIREX®
Guhring 9024630093400 2463 Type N General Purpose Stub Length Drill, U Drill - Letter, 0.368 in Drill - Decimal Inch, DK120 Carbide, FIREX®
Guhring 9024630093400 2463 Type N General Purpose Stub Length Drill, U Drill - Letter, 0.368 in Drill - Decimal Inch, DK120 Carbide, FIREX®
- Brand: Guhring
- Mfr# : 9024630093400
- Item # : GUH 9024630093400
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Rigid twist drill
DESCRIPTION
Guhring Stub Length Drill, Type N General Purpose, Series: 2463, Imperial, U Drill - Letter, 0.368 in Drill - Decimal Inch, 84 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 40 mm Flute Length, 9.34 mm Shank, Straight Shank, 118 deg Point, Faceted Point, Right Hand Cutting Direction, DK120 Carbide Cutting Edge, DK120 Carbide, FIREX®, Applicable Materials: Brass, Cast Iron, General Steel and Universal Steel
SPECIFICATIONS
| Type | : Type N General Purpose |
| Series | : 2463 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Letter | : U |
| Drill Size - Decimal Inch | : 0.368 in |
| Overall Length | : 84 mm |
| Cutting Depth | : 3XD |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 40 mm |
| Shank Size | : 9.34 mm |
| Shank Type | : Straight |
| Point Angle | : 118 deg |
| Point Type | : Faceted |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : DK120 Carbide |
| Material | : DK120 Carbide |
| Finish | : FIREX® |
| Applicable Materials | : Brass, Cast Iron, General Steel and Universal Steel |
APPLICATION INFO
| Standard/Approvals | : DIN 6539|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer |
| Application | : For use in automatic/capstan lathes |
| Country of Origin | : DE |
