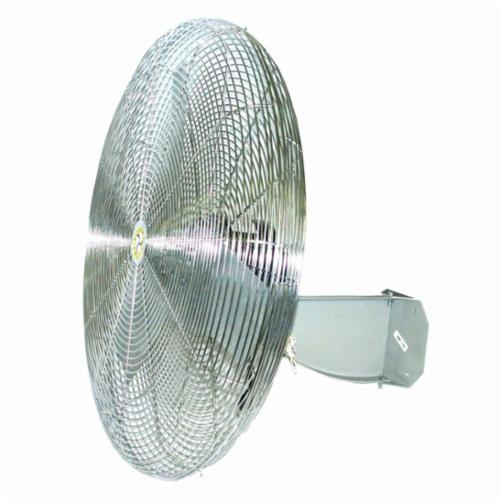

Airmaster® 71565 Industrial Oscillating Air Circulator, 24 in Blade, 5548/4699/4062 cfm Flow Rate, 115 V AC, 3.2 A
Airmaster® 71565 Industrial Oscillating Air Circulator, 24 in Blade, 5548/4699/4062 cfm Flow Rate, 115 V AC, 3.2 A
Airmaster® 71565 Industrial Oscillating Air Circulator, 24 in Blade, 5548/4699/4062 cfm Flow Rate, 115 V AC, 3.2 A
- Brand: Airmaster®
- Mfr# : 71565
- Item # : AMF I-24-OIW
- UPC #: 783429715655
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Stationary, 1-phase, un-assembled
- 105 deg F maximum ambient temperature
- Direct drive, totally enclosed air over motor enclosure, class B motor insulation, thermal protection
- Nickel chrome wire guard finish
- Ball bearing, 5/8 in Dia shaft
DESCRIPTION
Airmaster® Air Circulator, Industrial Oscillating, 24 in Blade, 5548/4699/4062 cfm, 1110/958/856 rpm Speed, 1/3 hp Power, 115 V AC, 3.2 A, 60 Hz Frequency, 3 Speed, 3 Blades, Galvanized Steel Blade, Permanent Split Capacitor Motor, 71 dBA Sound Level, Steel Housing Material, Wall Mounting, 27 in H x 27 in W x 21-1/4 in D Dimensions, Import
SPECIFICATIONS
| Type | : Industrial Oscillating |
| Blade Size | : 24 in |
| Flow Rate | : 5548/4699/4062 cfm |
| Speed | : 1110/958/856 rpm |
| Power Rating | : 1/3 hp |
| Voltage Rating | : 115 VAC |
| Amperage Rating | : 3.2 A |
| Frequency Rating | : 60 Hz |
| Number of Speeds | : 3 |
| Number of Blades | : 3 |
| Blade Material | : Galvanized Steel |
| Motor Type | : Permanent Split Capacitor |
| Sound Level | : 71 dBA |
| Housing Material | : Steel |
| Mounting Type | : Wall |
| Dimensions | : 27 in H x 27 in W x 21-1/4 in D |
| Domestic/Import | : Import |
APPLICATION INFO
| Standard/Approvals | : ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Application | : For air circulation |
| Country of Origin | : CN |
