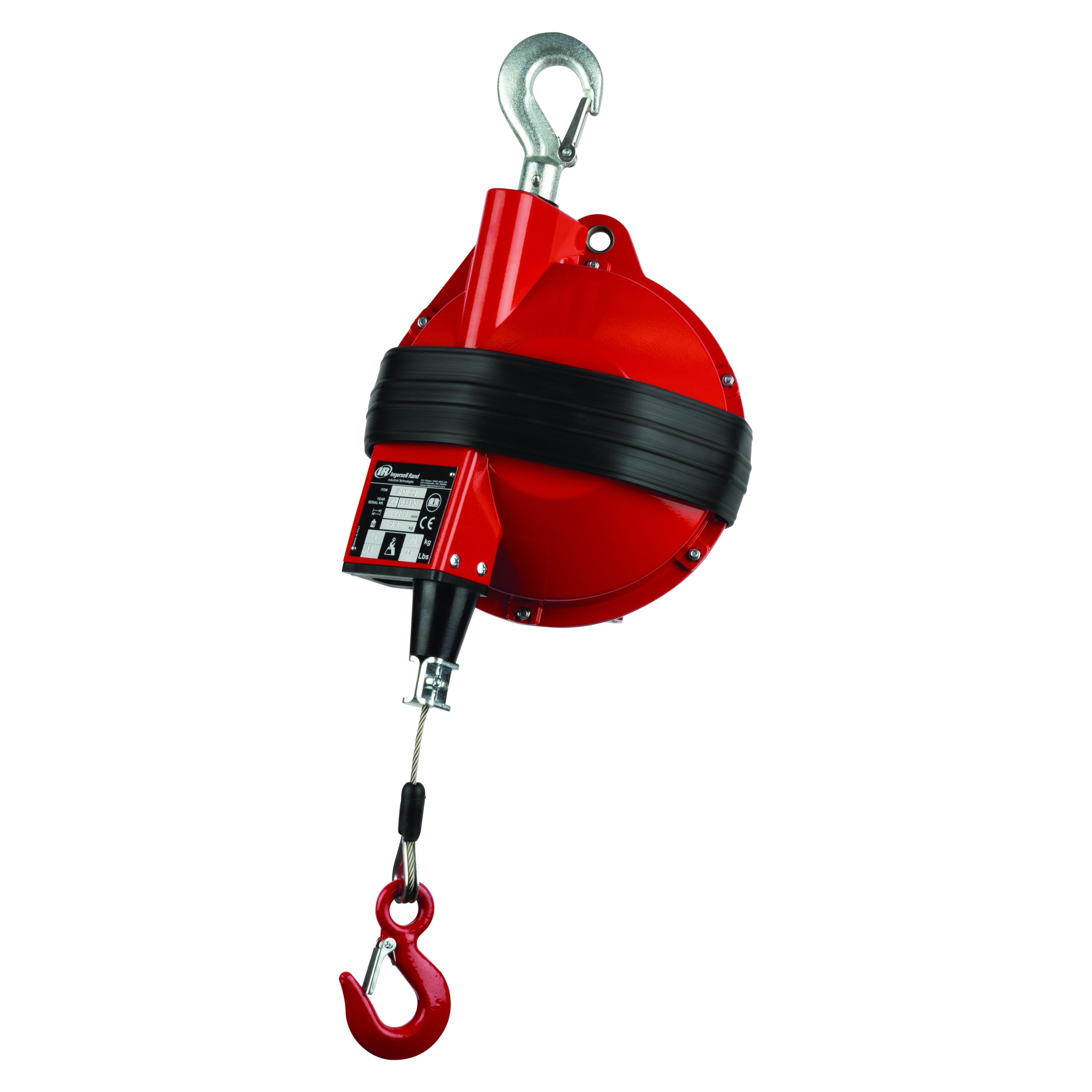

ARO® BHD-20 Heavy Duty Balancer, 33 to 44 lb Load, 6.5 ft L Cable, Worm Screw Capacity Adjustment Tension Adjustment
ARO® BHD-20 Heavy Duty Balancer, 33 to 44 lb Load, 6.5 ft L Cable, Worm Screw Capacity Adjustment Tension Adjustment
ARO® BHD-20 Heavy Duty Balancer, 33 to 44 lb Load, 6.5 ft L Cable, Worm Screw Capacity Adjustment Tension Adjustment
- Brand: ARO®
- Mfr# : BHD-20
- Item # : ARO BHD-20
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Gravity-free suspension capability
- Ribbed and sealed monobloc construction in aluminum alloy
- Safety device against load dropping due to the spring breakage (greater than 6.5 lb)
- Upper rotary suspension with safety hook
- Adjustable stroke limiting device
DESCRIPTION

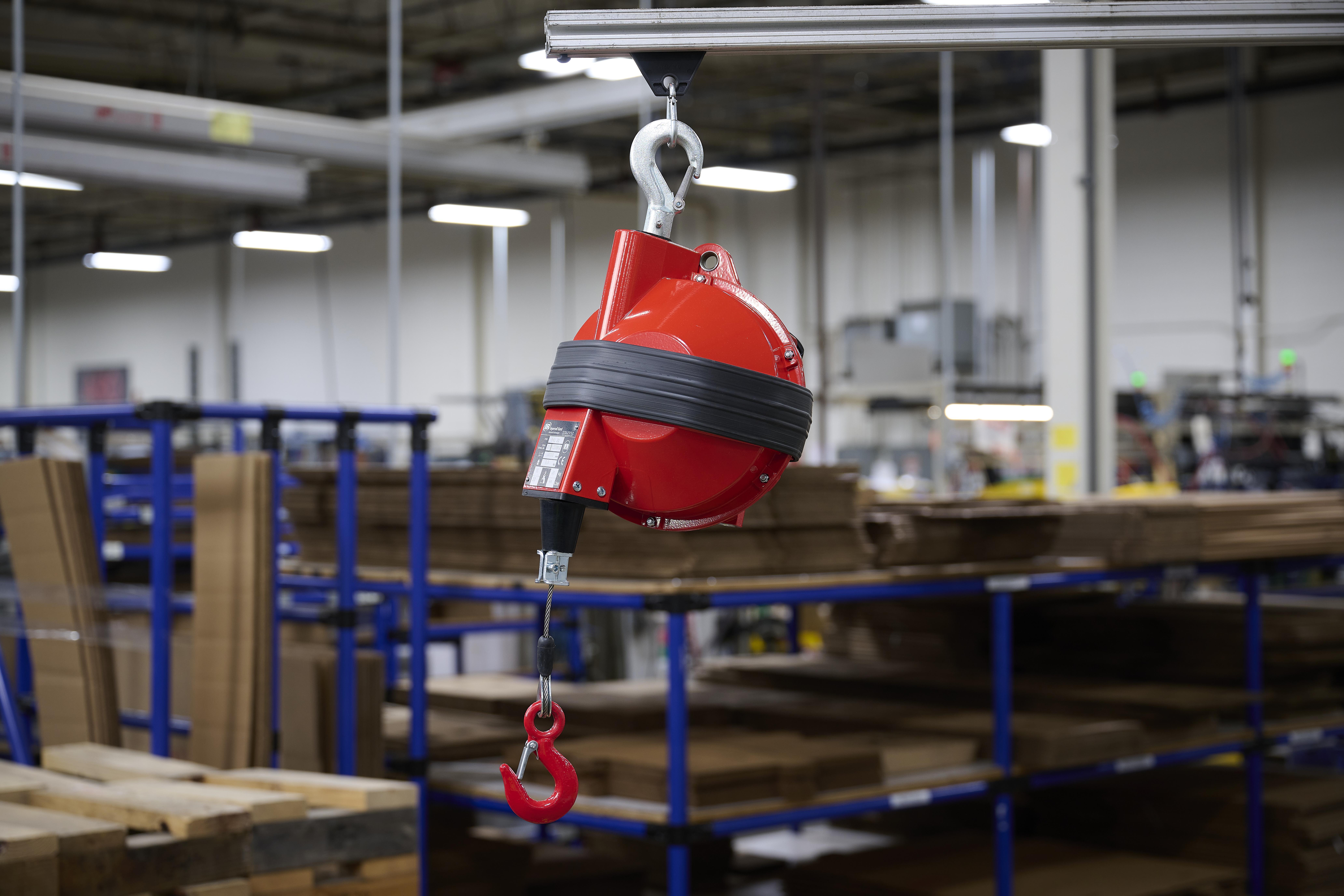

B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.
ARO® Balancer, Heavy Duty, Series: BHD, 33 to 44 lb, 6.5 ft Cable Length, 23.4 lb Reel Weight, Worm Screw Capacity Adjustment Tension Adjustment, 24 in Height, 9.8 in Width, 8.7 in D, 304 Stainless Steel Cable, Aluminum Alloy Housing, Manual/Pull Handle Locking, Rotating Hook Mount
SPECIFICATIONS
| Type | : Heavy Duty |
| Series | : BHD |
| Load Capacity | : 33 to 44 lb |
| Cable Length | : 6.5 ft |
| Reel Weight | : 23.4 lb |
| Tension Adjustment | : Worm Screw Capacity Adjustment |
| Height | : 24 in |
| Width | : 9.8 in |
| Depth | : 8.7 in |
| Cable Material | : 304 Stainless Steel |
| Housing Material | : Aluminum Alloy |
| Locking Type | : Manual/Pull Handle |
| Mounting Type | : Rotating Hook |
APPLICATION INFO
| Country of Origin | : IT |
