Standard Abrasives™ 7000121768 CM-15 Threaded Cartridge Roll, 4.57 mm Dia Pilot x 19.05 mm L Pilot, 1/4 in Dia x 1 in L Mandrel Shank, 2-3/4 in OAL
Standard Abrasives™ 7000121768 CM-15 Threaded Cartridge Roll, 4.57 mm Dia Pilot x 19.05 mm L Pilot, 1/4 in Dia x 1 in L Mandrel Shank, 2-3/4 in OAL
Standard Abrasives™ 7000121768 CM-15 Threaded Cartridge Roll, 4.57 mm Dia Pilot x 19.05 mm L Pilot, 1/4 in Dia x 1 in L Mandrel Shank, 2-3/4 in OAL
- Brand: Standard Abrasives™
- Mfr# : 7000121768
- Item # : MMM 32887
- UPC #: 051115328879
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Fits all Standard Abrasives Straight, Full Tapered and Half Tapered Cartridge Rolls
- Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
- Mandrel enables access to tight spaces with a cartridge roll
- Comes in various pilot diameters and lengths to fit different cartridge rolls
- Made of plated steel for enhanced durability
DESCRIPTION

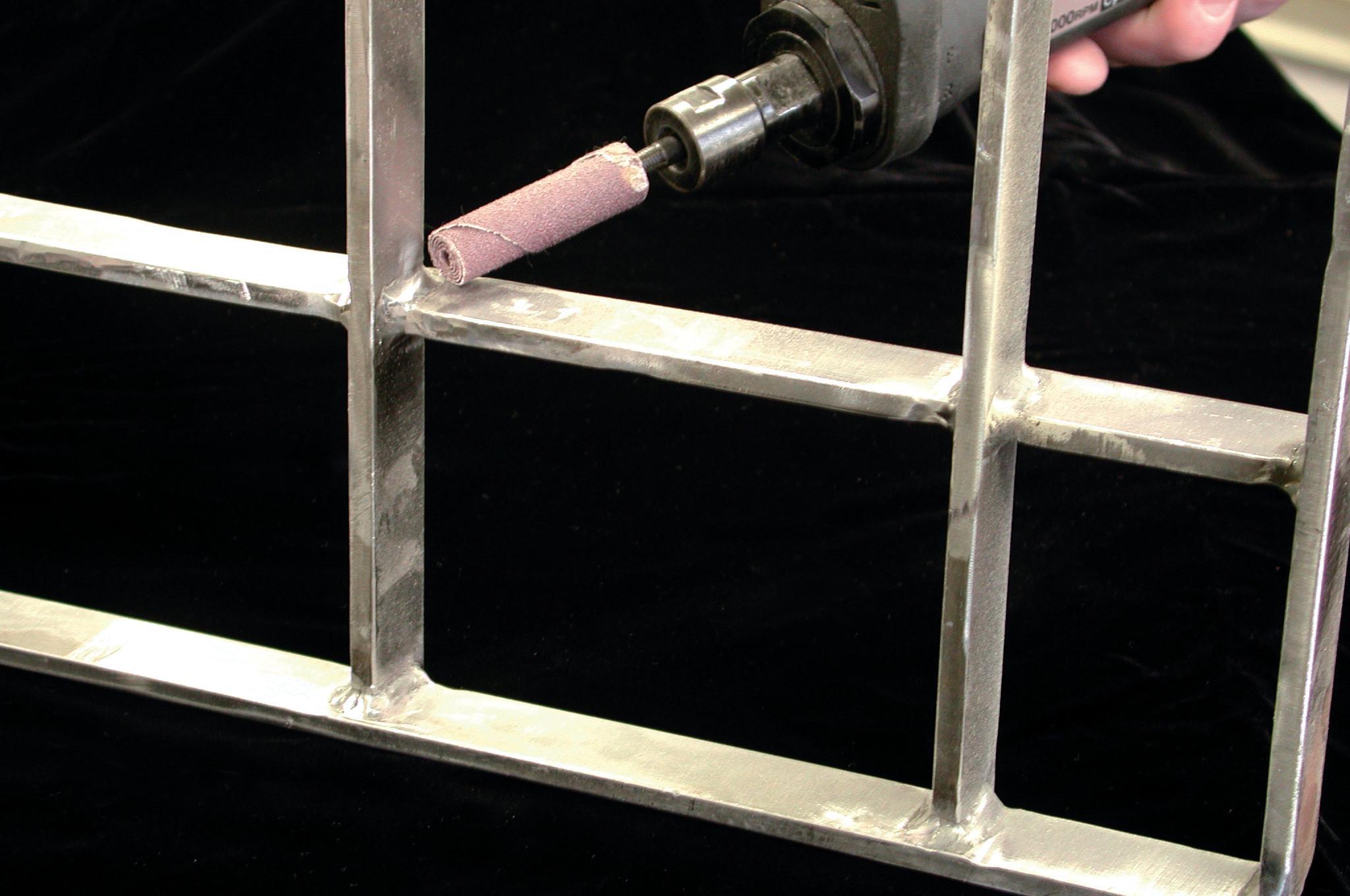

Standard Abrasives™ Cartridge Roll Mandrels is a tool attachment that holds an abrasive cartridge roll (sold separately). Together, the mandrel and cartridge roll grind and finish hard-to-reach areas of a workpiece, such as angles and curves.
Standard Abrasives™, 7000121768, Cartridge Roll, Threaded, Series: CM-15, 4.57 mm Pilot Diameter, 19.05 mm Pilot Length, 1/4 in Mandrel Shank Diameter, 1 in Mandrel Shank Length, 2-3/4 in Overall Length
SPECIFICATIONS
| Type | : Threaded |
| Series | : CM-15 |
| Pilot Diameter | : 4.57 mm |
| Pilot Length | : 19.05 mm |
| Mandrel Shank Diameter | : 1/4 in |
| Mandrel Shank Length | : 1 in |
| Overall Length | : 2-3/4 in |
APPLICATION INFO
| Application | : For metalworking in hard-to-reach areas |
| Country of Origin | : CN |
