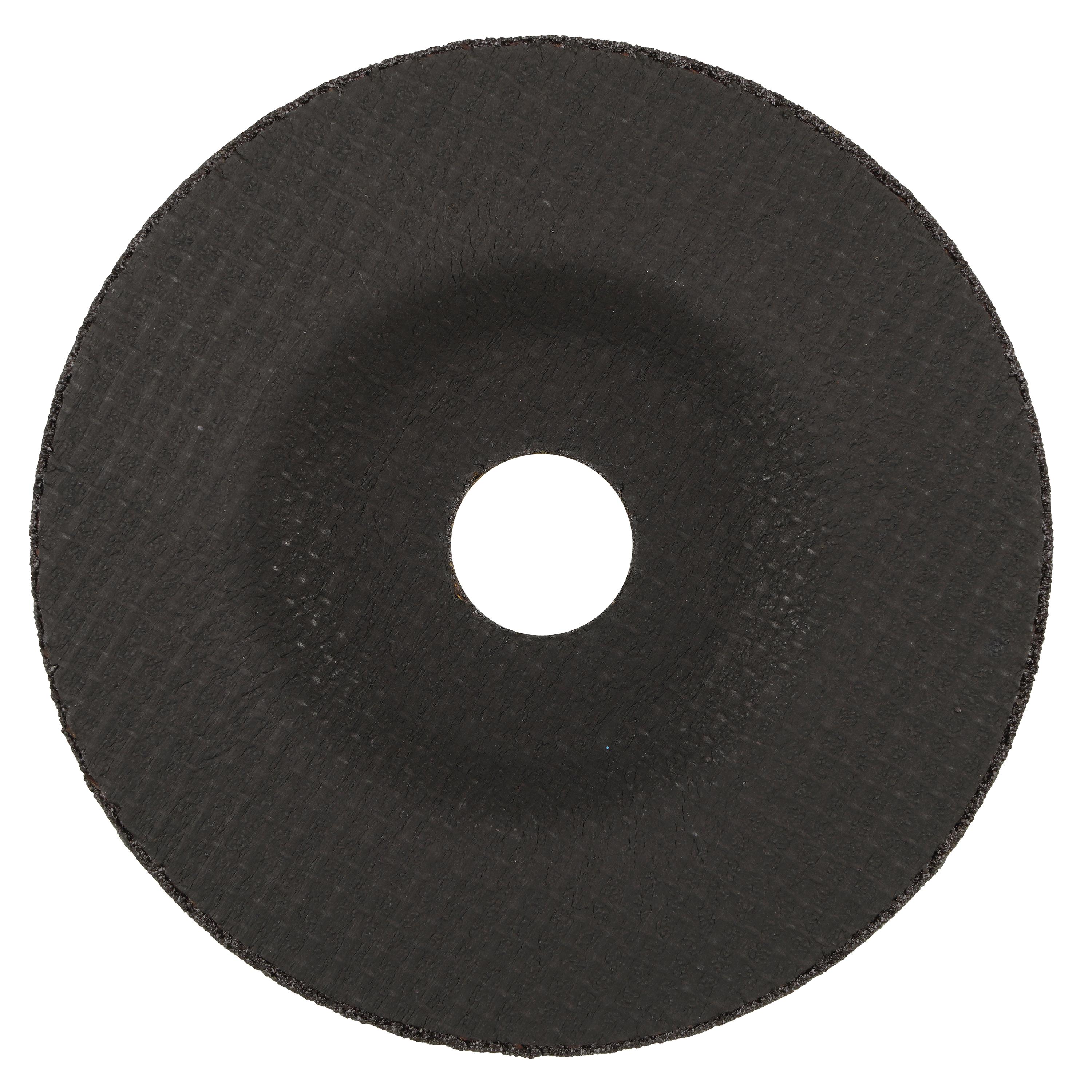

Tiger® Ceramic 58317 Combination Long Life Performance Line Superior Life and Cut Depressed Center Combo Wheel, 5 in Dia 1/8 in THK, 7/8 in Center Hole, 30 Grit, Ceramic Alumina Abrasive
Tiger® Ceramic 58317 Combination Long Life Performance Line Superior Life and Cut Depressed Center Combo Wheel, 5 in Dia 1/8 in THK, 7/8 in Center Hole, 30 Grit, Ceramic Alumina Abrasive
Tiger® Ceramic 58317 Combination Long Life Performance Line Superior Life and Cut Depressed Center Combo Wheel, 5 in Dia 1/8 in THK, 7/8 in Center Hole, 30 Grit, Ceramic Alumina Abrasive
- Brand: Tiger® Ceramic
- Mfr# : 58317
- Item # : WEI 58317
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- New ceramic grain technology increases cut rate while working at cooler temperatures for greater efficiency
- Industry-leading wheel life reduces change-overs and an aggressive cut rate removes more material
- Optimum Use Line helps maximize wheel life, improving productivity and sustainability
- Proprietary fiberglass design absorbs vibration and enhances feedback for a better operator experience
- Contaminant-free formula provides a worry-free solution for high-value stainless steel parts
DESCRIPTION
Weiler's Combination Wheels offer flexibility and efficiency when switching between cutting and grinding applications. A third layer of fiberglass reinforcement provides the strength to hold up when grinding, while the type of fiberglass used maintains a fast cut.
Tiger® Ceramic, 58317, Depressed Center Combo Wheel, Combination Long Life Performance Line Superior Life and Cut, 5 in Wheel Diameter, 1/8 in Wheel, 7/8 in Center Hole, Arbor Connector, 30 Grit, Medium Grade, Ceramic Alumina Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Tool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals, Reinforced: Yes, Specifications Met: ANSI B7.1-2010
SPECIFICATIONS
| Type | : Combination Long Life Performance Line Superior Life and Cut |
| Wheel Diameter | : 5 in |
| Wheel Thickness | : 1/8 in |
| Center Hole Size | : 7/8 in |
| Connector Type | : Arbor |
| Grit | : 30 |
| Grade | : Medium |
| Abrasive Material | : Ceramic Alumina |
| Wheel Type Number | : Type 27 |
| Maximum Speed | : 12200 rpm |
| Bond Type | : Resin |
| Applicable Materials | : Tool Steel, Inconel, High Nickel Alloy, Titanium, Armored Steel, Stainless Steel and Hard-to-Cut Metals |
| Wheel Hardness | : T |
| Reinforced | : Yes |
| Specifications Met | : ANSI B7.1-2010 |
APPLICATION INFO
| Standard/Approvals | : ANSI B7.1-2010 |
| Application | : For use on grinders |
| Country of Origin | : SI |
