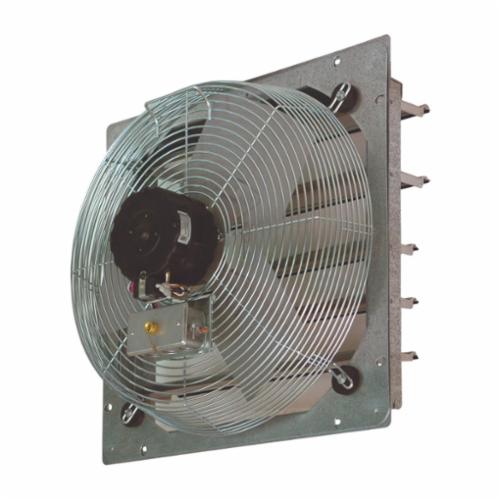

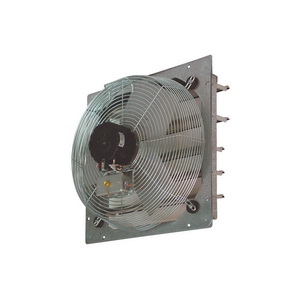

TPI CE12DS 1-Phase Direct Drive Standard Exhaust Fan, 12 in Dia Blade, 120 V AC, 560/710/825 cfm Flow Rate, 3 Speeds, 15-1/8 in W
TPI CE12DS 1-Phase Direct Drive Standard Exhaust Fan, 12 in Dia Blade, 120 V AC, 560/710/825 cfm Flow Rate, 3 Speeds, 15-1/8 in W
TPI CE12DS 1-Phase Direct Drive Standard Exhaust Fan, 12 in Dia Blade, 120 V AC, 560/710/825 cfm Flow Rate, 3 Speeds, 15-1/8 in W
- Brand: TPI
- Mfr# : CE12DS
- Item # : TPI CE12DS
- UPC #: 686334798624
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Pull chain switch
- Eliminates need for external framing and shutter
- No cord junction box provided for direct wiring
- Totally enclosed, permanently lubricated motor
- 3-speed sleeve bearing permanent split capacitor
- 6-1/8 in maximum open
- Wall/shutter mounting
- Rough-in hole size is 1/2 in larger than fan blade size
- AC Motor
- Sleeve bearing
DESCRIPTION
TPI Exhaust Fan, 1-Phase Direct Drive Standard, Series: CE Series, 12 in Diameter Blade, 120 V AC, 1/12 hp, 560/710/825 cfm Flow Rate, 3 Speed, 15-1/8 in Width, 15-1/8 in Height, Aluminum Blade/Steel Guard
SPECIFICATIONS
| Type | : 1-Phase Direct Drive Standard |
| Series | : CE Series |
| Blade Diameter | : 12 in |
| Voltage Rating | : 120 VAC |
| Horsepower | : 1/12 hp |
| Flow Rate | : 560/710/825 cfm |
| Number of Speeds | : 3 |
| Width | : 15-1/8 in |
| Height | : 15-1/8 in |
| Material | : Aluminum Blade/Steel Guard |
APPLICATION INFO
| Standard/Approvals | : UL Listed|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov |
| Application | : Indoor-Industrial and Commercial-Wall Exhaust Applications |
| Country of Origin | : US |
