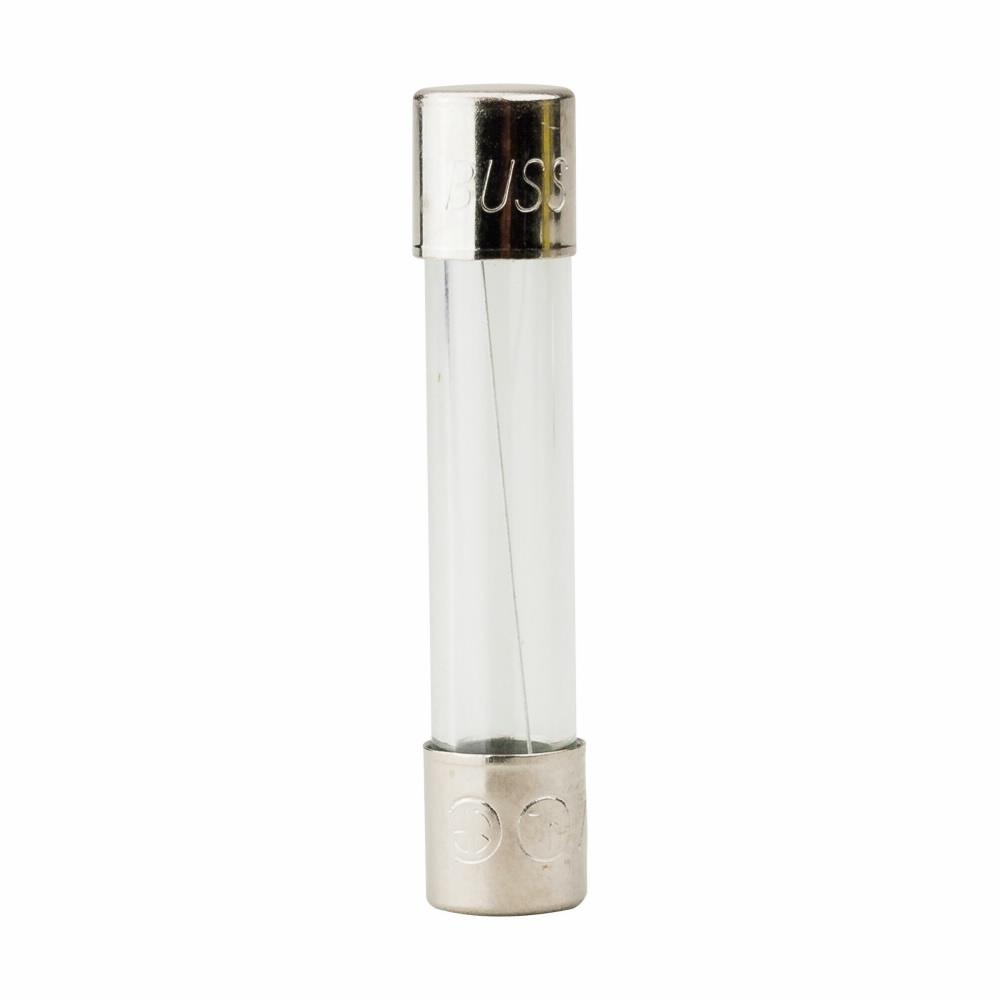

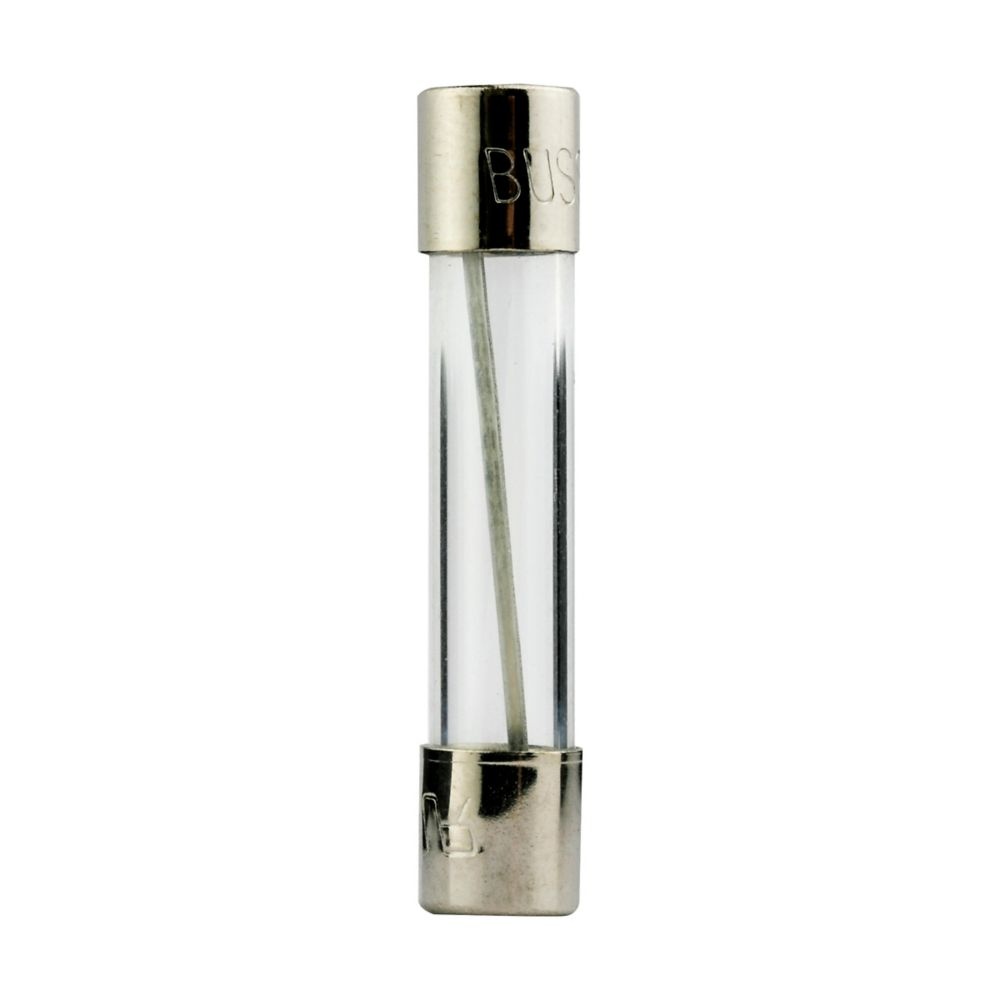

Bussmann AGC-15-R Small Dimension Fast Acting Fuse, 15 A, 32 V AC/DC, 1000 A Interrupt, Cylindrical Body
Bussmann AGC-15-R Small Dimension Fast Acting Fuse, 15 A, 32 V AC/DC, 1000 A Interrupt, Cylindrical Body
Bussmann AGC-15-R Small Dimension Fast Acting Fuse, 15 A, 32 V AC/DC, 1000 A Interrupt, Cylindrical Body
- Brand: Bussmann
- Mfr# : AGC-15-R
- Item # : BUS AGC-15-R
- UPC #: 051712655026
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
VIDEO LINK
FEATURES
- Original electronic glass tube fuse
- Fast acting for maximum protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- Nickel plated brass end caps
- 60 min maximum at 135% of ampere rating, 120 s maximum at 200% of ampere rating response time
- 1000 A at 32 VAC interrupt rating
DESCRIPTION

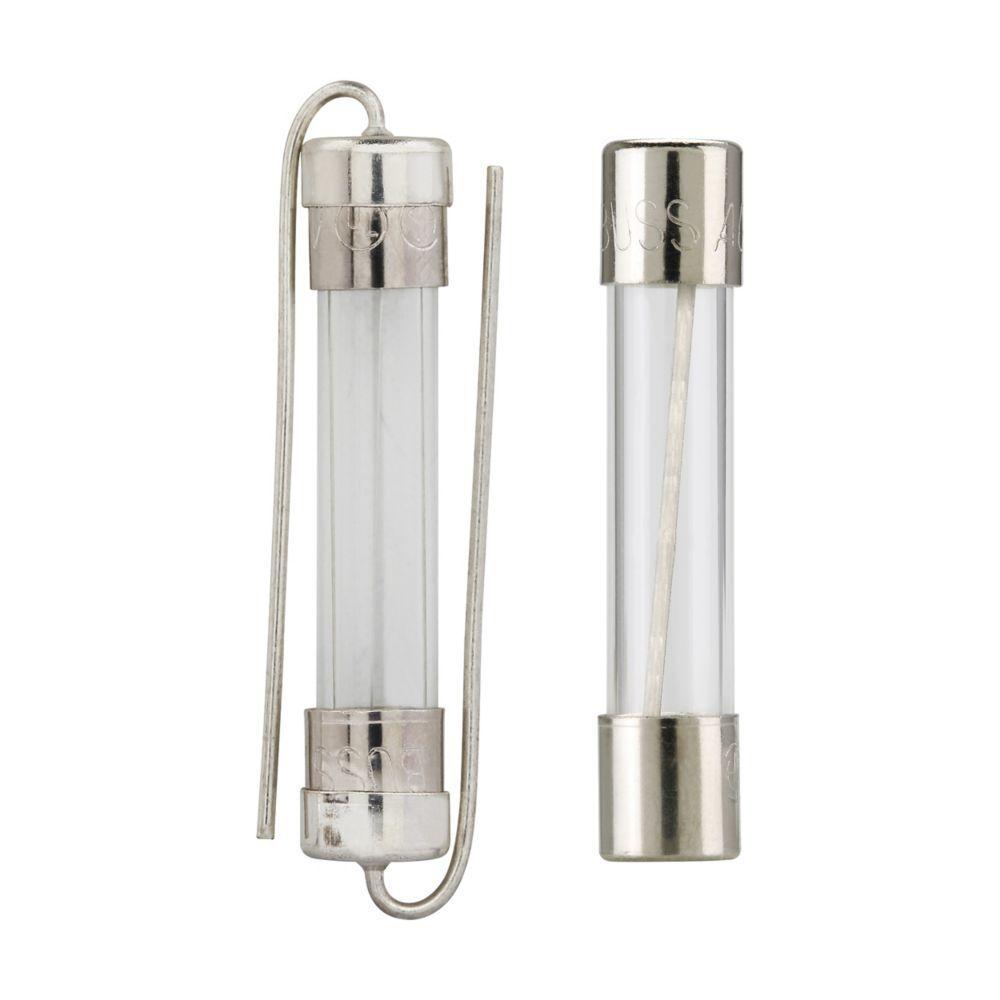

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC Fast-acting glass tube fuses 3AG (¼" x 1¼") Designed in accordance with UL 248-14 provide reliable overcurrent protection for electronic circuits. Constructed with a glass body, they are RoHS compliant and available in two formats: Cartridge fuse: Compatible with Bussmann Series fuse holders, blocks, or clips. Axial leads: Ideal for thru-hole PCB installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 15 A, 32 V AC/DC, 1000 A Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
SPECIFICATIONS
| Type | : Small Dimension |
| Series | : AGC |
| Indicating/Non-Indicating | : Non-Indicating |
| Rejection/Non-Rejection | : Non-Rejection |
| Amperage Rating | : 15 A |
| Voltage Rating | : 32 V AC/DC |
| Interrupt Rating | : 1000 A |
| Response Time | : 60 min, 120 s |
| Terminal Type | : Ferrule |
| Mounting Type | : Clip/Holder |
| Body Type | : Cylindrical |
| Element | : Single |
| Material | : Glass |
| Body Size | : 1/4 in Dia x 1-1/4 in L |
APPLICATION INFO
| Standard/Approvals | : CE Marked,RoHS Compliant |
| Application | : Electronic Circuits |
| Country of Origin | : TW |
