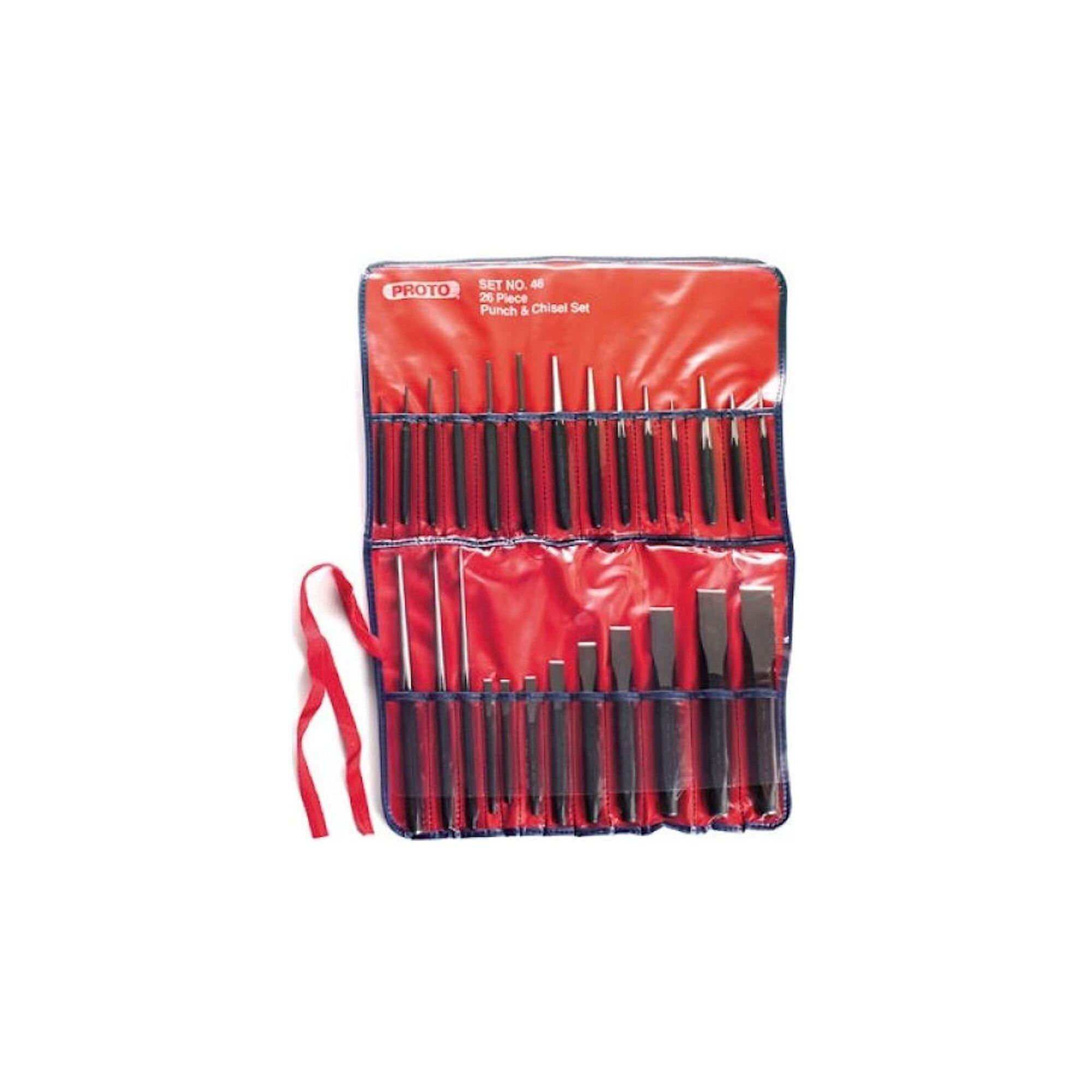

Proto® J46 Punch and Chisel Set, Center/Cold/Drift/Drive Pin/Starting Style, 1/4 to 1-3/36 in Chisel, 3/32 to 1/4 in Punch, 17 Punches, 9 Chisels, 26 Pieces

Proto® J46 STP J46

Proto® J46 Punch and Chisel Set, Center/Cold/Drift/Drive Pin/Starting Style, 1/4 to 1-3/36 in Chisel, 3/32 to 1/4 in Punch, 17 Punches, 9 Chisels, 26 Pieces

Proto® J46 Punch and Chisel Set, Center/Cold/Drift/Drive Pin/Starting Style, 1/4 to 1-3/36 in Chisel, 3/32 to 1/4 in Punch, 17 Punches, 9 Chisels, 26 Pieces

  • Brand: Proto®
  • Mfr# : J46
  • Item # : STP J46
  • UPC #: 662679010133
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Punches and chisels are made of hardened steel to precise specifications
  • Black oxide finish highlighted by a bright machined taper
  • A polished identification panel on one of the flats is marked with the tool number and size in a black inlay
  • Set offers a wide range of sizes to handle a variety of jobs

DESCRIPTION

Proto® Punch and Chisel Set, 1/4 to 1-3/36 in Chisel, 3/32 to 1/4 in Punch, 10 in Overall Length, 17 Punches, 9 Chisels, 26 Piece, Center/Cold/Drift/Drive Pin/Starting, Steel, Black Oxide

SPECIFICATIONS

Chisel Size      :    1/4 to 1-3/36 in
Punch Size      :    3/32 to 1/4 in
Overall Length      :    10 in
Number of Punches      :    17
Number of Chisels      :    9
Number of Pieces      :    26
Style      :    Center/Cold/Drift/Drive Pin/Starting
Set Contents      :    3/8 x 4-7/8 in and 1/2 x 5-5/8 in Center Punch, 5/16 x 5 in Prick Punch, 3/32 x 1/4 x 4-3/16 in, 1/8 x 5/16 x 5-1/4 in, 5/32 x 5/16 x 5-9/16 in, 3/16 x 3/8 x 5-7/8 in, 7/32 x 7/16 x 3-6/8 in and 1/4 x 1/2 x 6-3/4 in Drive Pin Punch, 3/32 x 1/4 x 5 in, 1/8 x 5/16 x 5-1/8 in, 3/16 x 3/8 x 5-5/8 in, 7/32 x 7/16 x 6 in and 1/4 x 1/2 x 6-1/2 in Starting Punch, 1/4 x 3/16 x 5 in, 5/16 x 1/4 x 5-1/8 in, 3/8 x 5/16 x 5-3/8 in, 1/2 x 7/16 x 6 in, 5/8 x 1/2 x 6-3/4 in, 3/4 x 5/8 x 6-7/8 in, 7/8 x 3/4 x 8 in, 1 x 7/8 x 8-1/2 and 1-3/16 x 1 x 8-3/8 in Cold Chisels, 1/8 x 5/16 x 10 in, 3/16 x 3/8 x 10 in and 1/4 x 1/2 x 10 in Drift Punch and Kit
Material      :    Steel
Finish      :    Black Oxide

APPLICATION INFO

Standard/Approvals      :    ASME B107.48/B107.47M
Country of Origin      :    US
