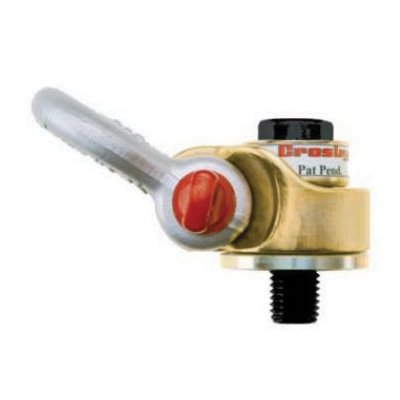

Crosby® 1067700 HR-1200 Side Pull Hoist Ring, 650 lb Load, 180 deg Pivot, 360 deg Swivel, 5/16-18 UNC Thread
Crosby® 1067700 HR-1200 Side Pull Hoist Ring, 650 lb Load, 180 deg Pivot, 360 deg Swivel, 5/16-18 UNC Thread
Crosby® 1067700 HR-1200 Side Pull Hoist Ring, 650 lb Load, 180 deg Pivot, 360 deg Swivel, 5/16-18 UNC Thread
- Brand: Crosby®
- Mfr# : 1067700
- Item # : CRO 1067700
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Rated at 100% at 90 deg angle
- 100% Individually proof tested to 2-1/2X the working load limit with certification and statistically magnetic particle inspected
- Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
- Importantly, these hoist rings meet other critical performance requirements including fatigue life, impact properties and material traceability
- Fatigue rated to 20000 cycles at 1-1/2X the working load limit
- Individually packaged along with proper application instructions and warning information
- Bolt is secured with E-clip, threads are grooved, this method allows for easy disassembly and assembly of hoist ring for thorough examination of all components
- Bolts are individually proof tested
- Hoist ring body is furnished with yellow chromate finish for improved corrosion resistance
- Utilize standard Crosby® Red Pin® shackles to connect to wire rope or synthetic slings
- Multiple bolt lengths available to meet specific application requirements
DESCRIPTION
Crosby® Hoist Ring, Side Pull, Series: HR-1200, 650 lb, 180 deg Pivot Angle, 360 deg Swivel, 5/16-18 UNC, 7 ft-lb Installation Torque, 1.93 in W
SPECIFICATIONS
| Type | : Side Pull |
| Series | : HR-1200 |
| Load Capacity | : 650 lb |
| Pivot Angle | : 180 deg |
| Swivel Angle | : 360 deg |
| Thread Size | : 5/16-18 UNC |
| Installation Torque | : 7 ft-lb |
| Dimensions | : 1.93 in W |
APPLICATION INFO
| Standard/Approvals | : ASME B30.26 |
| Application | : For use with Red Pin® 209, 210, 213, 215, 2130, 2150 and S-281 Web Shackles |
| Country of Origin | : US |
