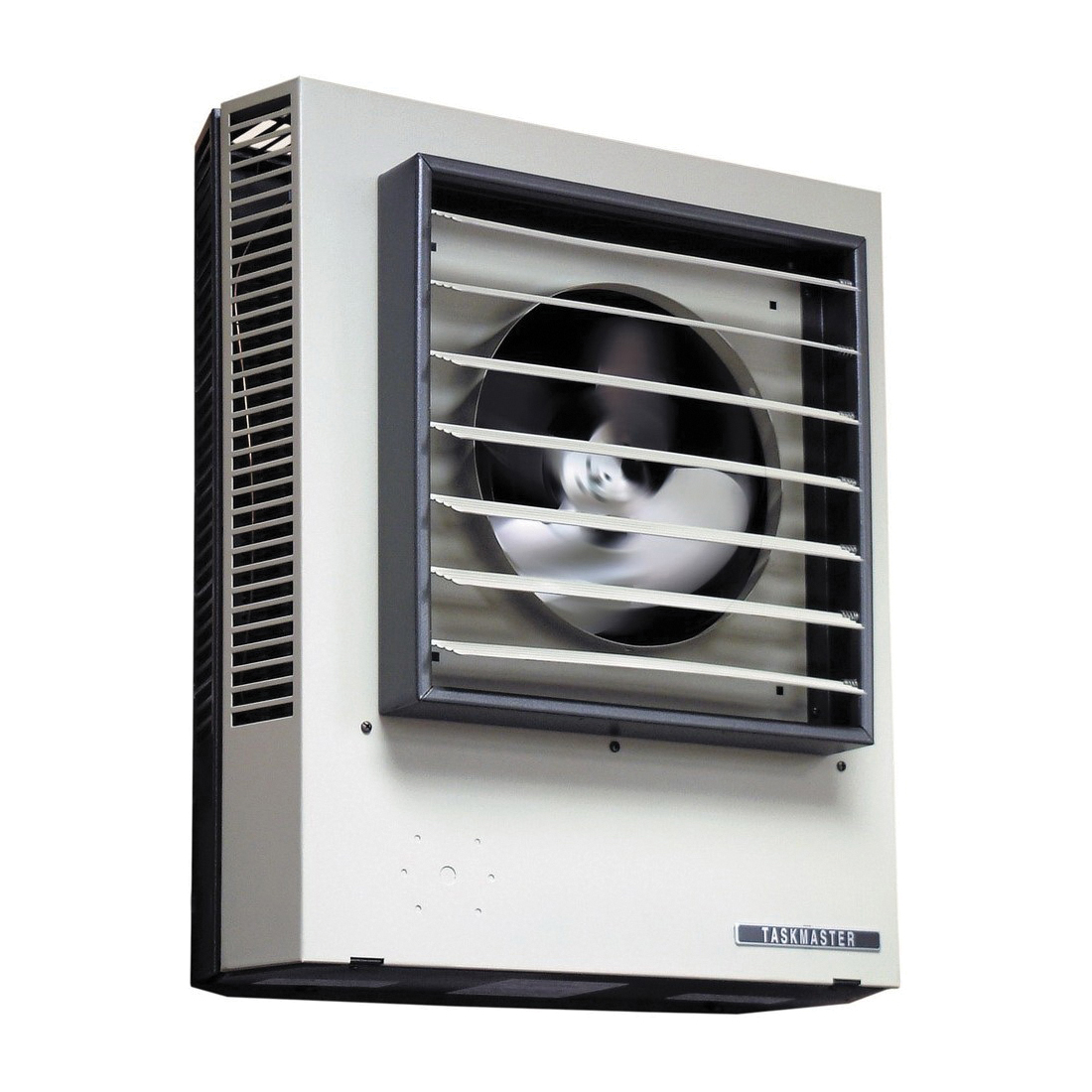

TPI P3P5107CA1N 5100 3-Phase Fan Forced Standard Unit Heater, 25.6 Btu/hr Capacity, 480 V AC, 7.5 kW Power Rating
TPI P3P5107CA1N 5100 3-Phase Fan Forced Standard Unit Heater, 25.6 Btu/hr Capacity, 480 V AC, 7.5 kW Power Rating
TPI P3P5107CA1N 5100 3-Phase Fan Forced Standard Unit Heater, 25.6 Btu/hr Capacity, 480 V AC, 7.5 kW Power Rating
- Brand: TPI
- Mfr# : P3P5107CA1N
- Item # : TPI P3P5107CA1N
- UPC #: 686334645249
- Min. Order Qty: :
- Qty. Interval: :
Warranty Information
FEATURES
- Heavy 18 ga welded steel cabinet with powder coated beige and brown two tone finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation, and maintenance
- Copper clad steel sheath element with continuously brazed stell fins formed to allow side draw through air flow
- Equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur
- Fan and Motor, Totally enclosed, single speed, single phase permanently lubricated, thermally protected motor with unit bearings
- Motors mounted with rubber insulators to minimize vibration and noise
DESCRIPTION
TPI Unit Heater, 3-Phase Fan Forced Standard, Series: 5100, 25.6 Btu/hr, 480 V AC, 9.1 A, 7.5 kW, 700 cfm, 34 deg F, Wall Mount, 10 ft Horizontal/12 ft Vertical Mounting Height, Steel, Powder Coated, 21-1/2 in W x 6-1/2 in D x 24-5/16 in H
SPECIFICATIONS
| Type | : 3-Phase Fan Forced Standard |
| Series | : 5100 |
| Capacity | : 25.6 Btu/hr |
| Voltage Rating | : 480 V AC |
| Amperage Rating | : 9.1 A |
| Power Rating | : 7.5 kW |
| Flow Rate | : 700 cfm |
| Temperature Rating | : 34 deg F |
| Mounting Type | : Wall |
| Mounting Height | : 10 ft Horizontal/12 ft Vertical |
| Material | : Steel |
| Finish | : Powder Coated |

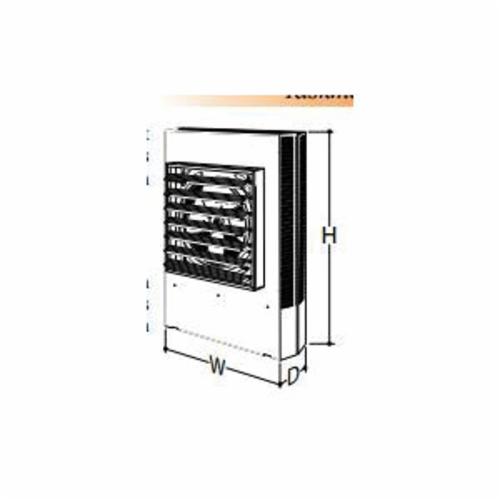

| Dimensions | : 21-1/2 in W x 6-1/2 in D x 24-5/16 in H |
APPLICATION INFO
| Standard/Approvals | : ARRA Compliant|Buy American Act Compliant|cETLus Listed|ABS Approved|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov |
| Application | : Indoor-Commercial and Industrial Applications |
| Country of Origin | : US |
