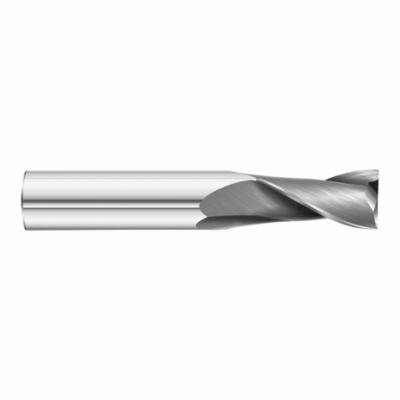

Fullerton 32070 3215 Center Cutting Single End Standard Length Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
Fullerton 32070 3215 Center Cutting Single End Standard Length Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
Fullerton 32070 3215 Center Cutting Single End Standard Length Square End End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated
- Brand: Fullerton
- Mfr# : 32070
- Item # : FUL 32070
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- h6 shank diameter tolerance
- +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance
DESCRIPTION
Fullerton's general purpose, premium quality 2-flute solid carbide end mill. The 3215 is manufactured consistently to the highest quality standards and tolerances. Offered in an extensive variety of configurations.
Fullerton End Mill, Center Cutting Single End Standard Length Square End, Series: 3215, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 2 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, Uncoated
SPECIFICATIONS
| Type | : Center Cutting Single End Standard Length Square End |
| Series | : 3215 |
| Cutter Diameter | : 1/4 in |
| Overall Length | : 2-1/2 in |
| Length of Cut | : 3/4 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Shank Diameter | : 1/4 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| ISO Code | : 9001:2008 |
| Material | : Dura Carb |
| Finish | : Uncoated |
APPLICATION INFO
| Application | : General Purpose |
| Country of Origin | : US |
