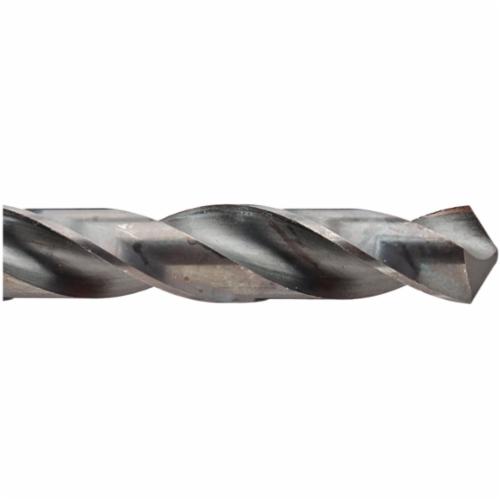

Michigan Drill® 300 38 General Purpose Single End Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
Michigan Drill® 300 38 General Purpose Single End Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
Michigan Drill® 300 38 General Purpose Single End Jobber Length Drill Bit, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
- Brand: Michigan Drill®
- Mfr# : 300 38
- Item # : MDC 300-3/8
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Oxide finish creates a porous layer that holds cutting oil which provides abrasion resistance and improved chip flow
DESCRIPTION
Michigan Drill® Jobber Length Drill Bit, General Purpose Single End, Series: 300, Imperial, #38 Drill - Wire, 0.1015 in Drill - Decimal Inch, 2-1/2 in Overall Length, 1-7/16 in Cutting Depth, Spiral Flute, 1-7/16 in Flute Length, Round Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Steel and Other Hard Materials
SPECIFICATIONS
| Type | : General Purpose Single End |
| Series | : 300 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Wire | : #38 |
| Drill Size - Decimal Inch | : 0.1015 in |
| Overall Length | : 2-1/2 in |
| Cutting Depth | : 1-7/16 in |
| Flute Type | : Spiral |
| Flute Length | : 1-7/16 in |
| Shank Type | : Round |
| Point Angle | : 118 deg |
| Point Type | : Conventional |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Material | : HSS |
| Finish | : Black Oxide |
| Applicable Materials | : Steel and Other Hard Materials |
APPLICATION INFO
| Standard/Approvals | : TAA Complaint |
| Application | : For holemaking application |
| Country of Origin | : US |
