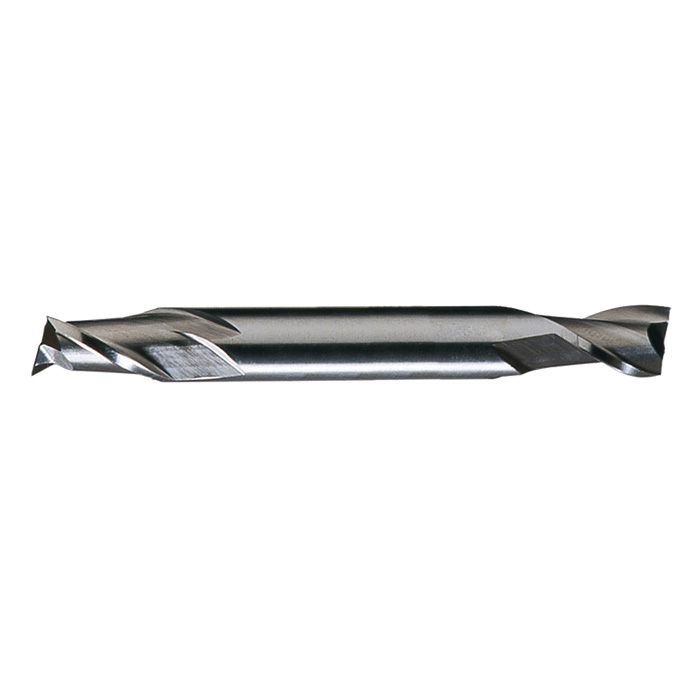

Cleveland® C41070 HMD-2 Center Cutting Double End General Purpose Miniature Square End End Mill, 1/16 in Dia Cutter, 0.218 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C41070 GRE C41070

Cleveland® C41070 HMD-2 Center Cutting Double End General Purpose Miniature Square End End Mill, 1/16 in Dia Cutter, 0.218 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C41070 HMD-2 Center Cutting Double End General Purpose Miniature Square End End Mill, 1/16 in Dia Cutter, 0.218 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2-1/2 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C41070
  • Item # : GRE C41070
  • UPC #: 697334410706
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Only one holder size needed for all cutting diameters
  • Double end mills have two cutting ends to reduce tool costs
  • 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Increase machining speeds to achieve optimum performance when using Cleveland coatings
  • Applicable on alloy steel, tool steel, carbon steel and cast iron

DESCRIPTION

Cleveland® End Mill, Center Cutting Double End General Purpose Miniature Square End, Series: HMD-2, 1/16 in Diameter Cutter, 2-1/2 in Overall Length, 0.218 in Length of Cut, 2 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, HSS, Uncoated

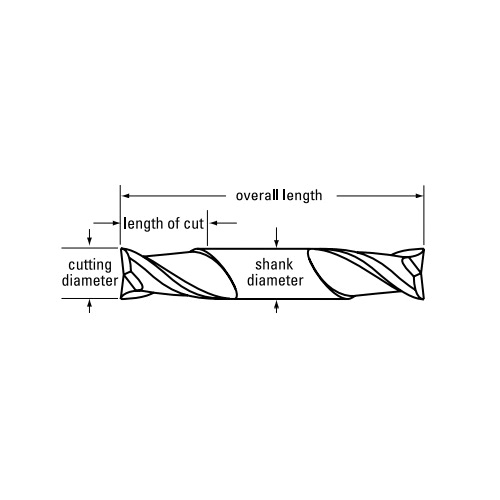

SPECIFICATIONS

Type      :    Center Cutting Double End General Purpose Miniature Square End
Series      :    HMD-2
Cutter Diameter      :    1/16 in
Overall Length      :    2-1/2 in
Length of Cut      :    0.218 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    3/16 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight
Material      :    HSS
Finish      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
