WIDIA GTD VariTap™ 5365974 VT-SPO Form B High Performance Multi-Purpose Spiral Point Tap, Right Hand Cutting, 3/8-16 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Black Oxide, HSS-E
WIDIA GTD VariTap™ 5365974 VT-SPO Form B High Performance Multi-Purpose Spiral Point Tap, Right Hand Cutting, 3/8-16 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Black Oxide, HSS-E
WIDIA GTD VariTap™ 5365974 VT-SPO Form B High Performance Multi-Purpose Spiral Point Tap, Right Hand Cutting, 3/8-16 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Black Oxide, HSS-E
- Brand: WIDIA GTD
- Mfr# : 5365974
- Item # : GRE 5365974
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Manufactured from high vanadium HSS-E to provide long and consistent tool life
- Unique spiral point geometry provides low tapping torque while pushing chips ahead of the tap in through holes
- Spiral flute geometry optimized to provide efficient chip ejection in blind holes
- Can be used on both synchronous and non-synchronous tapping machines
DESCRIPTION
VariTap™ is the new high performance multipurpose tapping solution from WIDIA. The VariTap™ has an optimized geometry and is capable of working with a wide variety of ductile materials - including carbon and alloy steels, stainless steels, ductile iron and cast aluminum. This new tool reduces inventory costs without losing the benefit of high quality, consistent tool life in threading and tapping.
WIDIA GTD VariTap™ Spiral Point Tap, Form B High Performance Multi-Purpose, Series: VT-SPO, Measurement System: Imperial, UNC Thread Standard, 3/8-16 Thread, Plug Chamfer, 3 Flutes, HSS-E, Black Oxide, Class of Fit: 3B, Right Hand Cutting Direction, 3/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Diameter, Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel Material Application, H3 Thread Limit

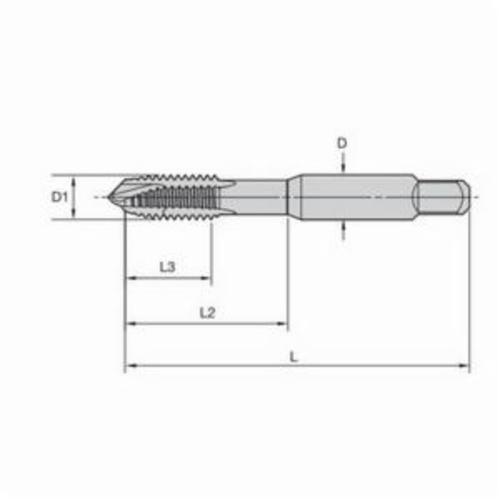

SPECIFICATIONS
| Type | : Form B High Performance Multi-Purpose |
| Series | : VT-SPO |
| Measurement System | : Imperial |
| Thread Standard | : UNC |
| Thread Size | : 3/8-16 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : Black Oxide |
| Class of Fit | : 3B |
| Cutting Direction | : Right Hand |
| Thread Length | : 3/4 in |
| Overall Length | : 2.94 in |
| Shank Diameter | : 0.381 in |
| Material Application | : Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel |
| Thread Limit | : H3 |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified|USCTI 302A |
| Application | : For through hole applications |
