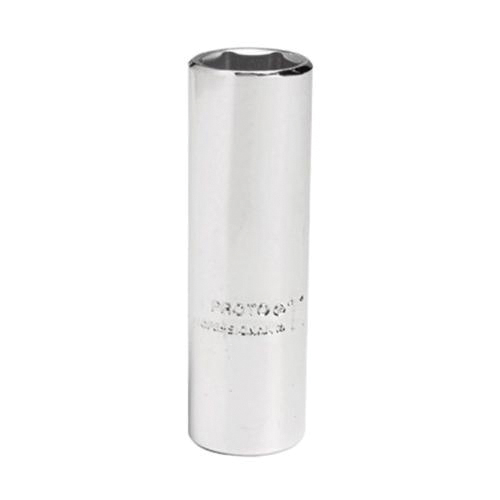

Proto® TorquePlus™ J4708LM Deep Length Socket, Metric, 1/4 in Square Drive, 8 mm
Proto® TorquePlus™ J4708LM Deep Length Socket, Metric, 1/4 in Square Drive, 8 mm
- Brand: Proto®
- Mfr# : J4708LM
- Item # : STP J4708LM
- UPC #: 662679140236
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
DESCRIPTION
Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Metric, Square Drive, 1/4 in Drive, 8 mm Socket, 50.5 mm Overall Length, 10.5 mm Opening Depth, 11.7 mm Drive End Width, 11.7 mm Socket End Width, Ball Locking, 6 Points, 29.2 mm Bolt Clearance Depth, Alloy Steel, Full Polished
SPECIFICATIONS
| Type | : Deep Length |
| Impact Rated | : No |
| Measurement System | : Metric |
| Drive Type | : Square |
| Drive Size | : 1/4 in |
| Socket Size | : 8 mm |
| Overall Length | : 50.5 mm |
| Opening Depth | : 10.5 mm |
| Drive End Width | : 11.7 mm |
| Socket End Width | : 11.7 mm |
| Locking Type | : Ball |
| Number of Points | : 6 |
| Bolt Clearance Depth | : 29.2 mm |
| Material | : Alloy Steel |
| Finish | : Full Polished |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110-2012 |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
