Tridon® 52F16 Micro-Gear® 52F Fuel Injection Interlocked Hose Clamp, SZ 16 Hose, 15 to 16 mm ID, Carbon Steel Band

Tridon® 52F16 IDE 52F16

Tridon® 52F16 Micro-Gear® 52F Fuel Injection Interlocked Hose Clamp, SZ 16 Hose, 15 to 16 mm ID, Carbon Steel Band

Tridon® 52F16 Micro-Gear® 52F Fuel Injection Interlocked Hose Clamp, SZ 16 Hose, 15 to 16 mm ID, Carbon Steel Band

  • Brand: Tridon®
  • Mfr# : 52F16
  • Item # : IDE 52F16
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Ideal_Tridon_57080_Catalog.pdf

FEATURES

  • Clamps are designed to provide the uniform sealing pressure required on fuel injection hoses
  • Feature a solid band with rolled edges and a special nut and bolt design
  • 3/8 in hose inner diameter

DESCRIPTION

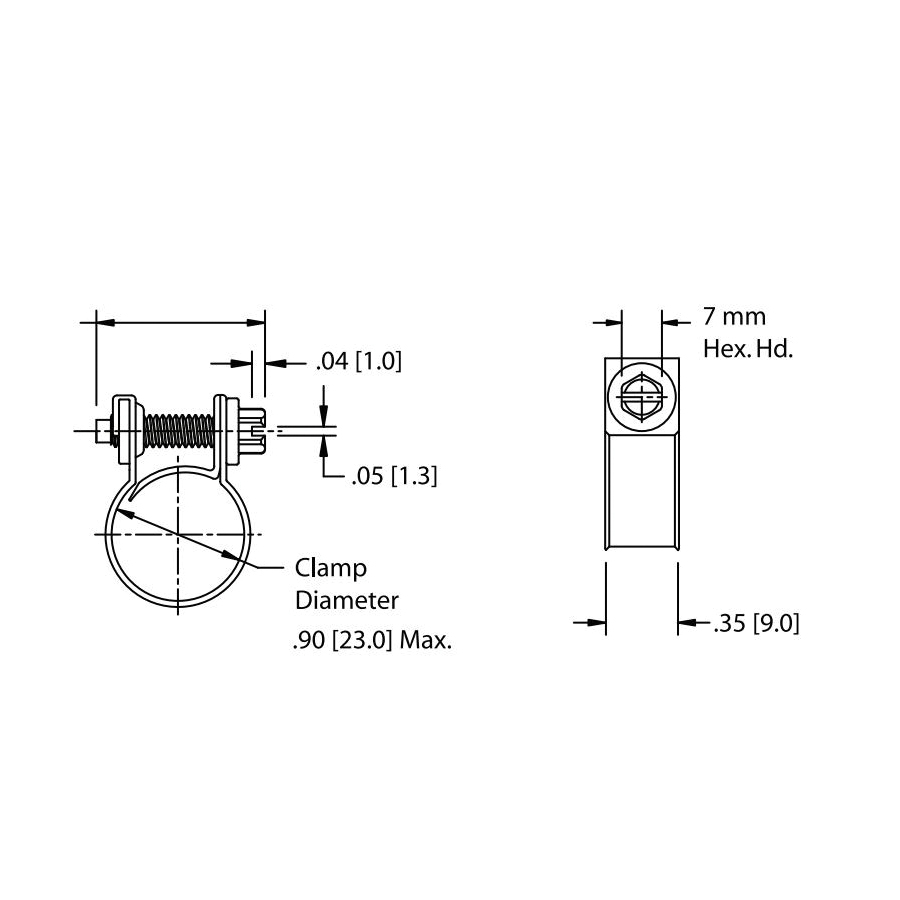

Tridon® Hose Clamp, Fuel Injection Interlocked, Series: Micro-Gear® 52F, SZ 16 Hose, 15 to 16 mm ID, 9 mm Width, 7 mm Hex Bolt, Carbon Steel Band, Carbon Steel Bolt, Zinc Plated, Clear

SPECIFICATIONS

Type      :    Fuel Injection Interlocked
Series      :    Micro-Gear® 52F
Hose Size      :    SZ 16
Inside Diameter      :    15 to 16 mm
Width      :    9 mm
Bolt Size      :    7 mm Hex
Band Material      :    Carbon Steel
Bolt Material      :    Carbon Steel
Finish      :    Zinc Plated
Color      :    Clear

Documents

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Ideal_Tridon_57080_Catalog.pdf
